Product Specifications
| Prod Model: |
EOT55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fibre Optical Transmitter: |
Externally Modulated |
| Wavelength: |
1550±10 |
| Otuput Power: |
2*10dBm |
| Bandwidth: |
47-860MHz or 47-1080MHz |
| Cnr: |
More Than 53db |
| Modulator: |
Jdsu |
| Two Power Supply: |
Plug in |
| Sbs: |
13~19db |
| DWDM Wavelength: |
1527-1563nm Variable |
| Modular Design: |
Support |
| Type: |
Fiber Transceiver |
| Wiring Devices: |
MDF |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

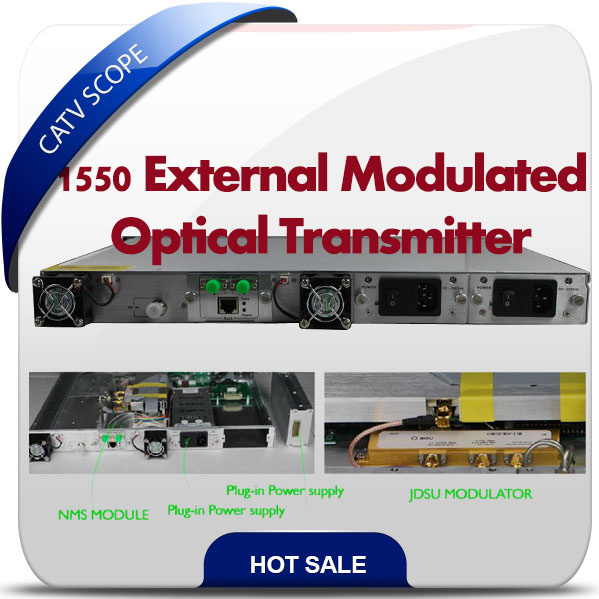

About EOT55XXT
Top-Grade 1550nm Externally Modulated Transmitter, Name as EOT55xxT, employs Dual Microwave sources, JDSU Modulator, high quality DFB Laser to offer a high effictive, reliable and durable solution for Haul network .
Advanced adjustable SBS from 13 to 19dB provides the flexibility to optimize link performance, the existing performance range provides a 65km geographical reach. tuner Laser operates within 1527-1563nm variable.
Features
Adjustable SBS from 13 to 19dB
DWDM Wavelengths: 1527-1563nm variable
Modular design, easy to use
2x7, 2x8, 2x9 and 2x10
Specification
| Items | Parameter | Remark |
| Optic parameters | Operating wavelength | (nm) | 1550±10 |
|
| Output power | (dBm) | 2×10 | 2×7, 2×8, 2×9 , |
| 2×10 , 2×11, 2x12 |
| Return loss | (dB) | ≥52 |
|
| Optical fiber connector |
| SC/APC | Optional SC/APC,FC/APC |
| RF Parameters | Bandwidth | (MHz) | 47~860 |
|
| or |
| 47~1080 |
| Input level | (dBmV) | 23±5 | AGC |
| Flatness | (dB) | ≤±0.75 | 45~(862)1080MHz |
| Return loss | (dB) | >16 | 45~750MHz |
| Input Impedance | (Ω) | 75 |
|
| Link Parameters | Channels |
| PAL-D/60ch |
|
| CNR | (dB) | ≥53 | 65Km fiber,Receive0dBm |
| CTB | (dB) | ≤-65 |
|
| CSO | (dB) | ≤-65 |
|
| SBS | (dB) | ≥16.0 | 13~19dB adj. |
| General Parameters | NM interface |
| RJ45 |
|
| Power | (V) | 90~265 | Optional -48VDC |
| Power consumption | (W) | ≤50 |
|
| Working Temp | (°C) | 0~50 | Automatically casing temp control |
| Storage Temp | (°C) | -20~85 |
|
| Operating relative humidity | (%) | 5~95 |
|
| Size | (") | 19×14.5×1.75 | (W)x(D)x(H) |
