15W Standard Single Output Switching Power Supply

Name: 15W Standard Single Output Switching Power Supply
Brand: China-Manufacturer-Directory.com
SKU: 762786255
Availability: InStock
Rating: 4.6 (45 reviews)

Supplier:	Changzhou Chuanglian Power Supply Co., Ltd.
Price:	US $ 3.7-4.1/Piece
Min Order:	300/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	A-15
Markets:	Eastern Europe,Southeast Asia,Mid East,Western Europe
Size:	120X46X31mm
Output Voltage:	5V, 12V, 24V
Output Type:	Single
Warranty:	1 Year
Certification:	CE
Output Power:	15W
Input Voltage:	176-264VAC
Brand:	Czcl

Product Description

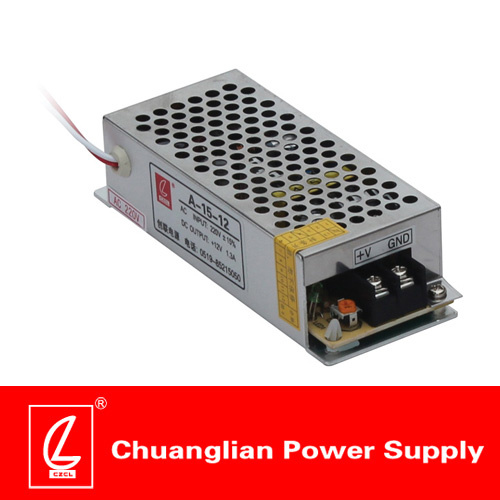

15W Single Output Switching Power Supply

Loat cost, high reliability
Built-in EMI filter
Low output ripple&noise
Protections:Over load/Short circuit
1 year warranty
Case:801 Size:120×46×31mm

AC input voltage range--------------------------176-264VAC
Input frequency---------------------------------47-63Hz
AC inrush current--------------------------------Cold start,40A/230VAC
DC adjustment range-----------------------------±10% rated output voltage
Line regulation(full load)------------------------≤0.5%
Output over load protection-------110%-150% hiccup mode,auto-recovery
Rise,hold up time--------------------50mS,20mS at full load(typical)
Withstand voltage-------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature----- -10~+40ºC@100%,+60ºC@60% load
Storage temperature----- -20ºC~+85ºC,20%~95%RH(non condensing)
Safety standards------Design refer to GB4943,UL60950-1,EN60950-1
EMC standards------- Design refer to GB9254,EN55022 class A
Cooling method---------------------Free air cooling convection

Product model	DC output	Load regul.	R&N	Efficiency
A-15-5	5V,3A	2%	100mV	68%
A-15-12	12V,1.3A	1%	120mV	71%
A-15-24	24V,0.7A	1%	200mV	74%

Founded in March of 2000, Changzhou Chuanglian Power Supply Co. Ltd. Focuses on researching, developing and manufacturing varieties of AC/DC and DC/DC switching power supplies and modules. Chuanglian® Is one of the famous and leading brands in the switching power supply industry in China. The product spectrum of the company covers the power rating from 5W to 2, 000W in over 2, 000 different models. Chuanglian Power Supplies are widely used in communication, LED display, industrial control, monitors, lighting, railway system, power station, instrumentation, medical equipment, etc. The company offers the costumers in over 50 countries/Regions including Europe, the USA, Japan, Korea, Hong Kong with the annual capacity of 6, 000, 000 units.

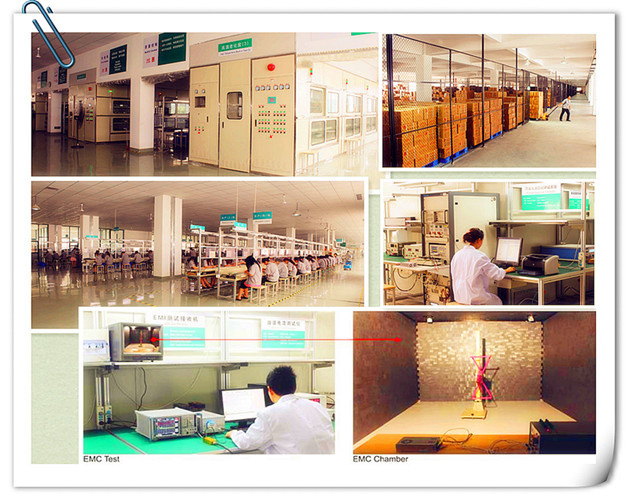

The plant is equipped with vertical and horizontal Automatic Insertion Machines and Surface Mount Machines, Automatic Wave Soldering Machines, PC based Power Supply Auto Test Systems, RoHS spectra analyzer and many other state-of-art devices. For assuring the high quality and reliability, all of the key components for the products are sourced from worldwide famous vendors. Every single unit has to pass the full load high temperature burn-in test. The average failure rate is less than 0.2%.
