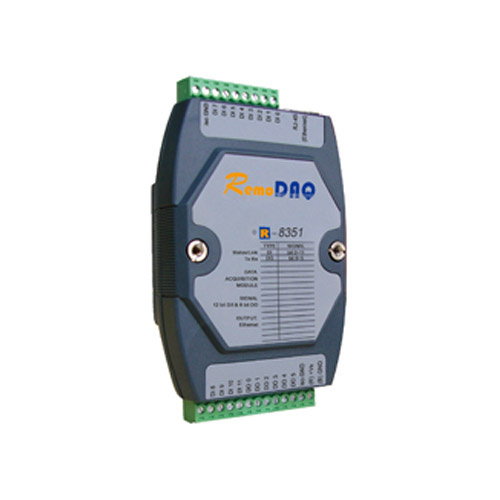

16-Channel Isolated Digital I/O Module with Timer (R-8351)

Name: 16-Channel Isolated Digital I/O Module with Timer (R-8351)
Brand: china-manufacturer-directory.com
SKU: 746057075
Availability: InStock
Rating: 4.5 (114 reviews)

Supplier:	Beijing Gemotech Intelligent Technology Co., Ltd.
Price:	US $ 116.7-160/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	R-8351
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
16-Channel:	12di/2do/2 Timer
Usage:	Laptop
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	ISO
Condition:	New

Product Description

R-8351 is a high-density I/O module built-in a 10/100 based-T interface for seamless Ethernet connectivity. It provides 12 digital input, 2 digital output, and 2 counter channels with 2000 VDC isolation protection. All of the digital input channels support input latch function for important signal handling. Meanwhile, these DI channels allow to be used as 3 kHz counter and frequency input channels. Opposite to the intelligent DI functions, the digital output channels also support pulse output function.

Brief Introduction:
- Support 10/100M Ethernet
- Support Modbus/TCP
- Input voltage +10V~+30VDC
- Power dissipation:1.5W
- Temperature:-20ºC~70ºC
- Temperature:5%~90%,no condensing
- Isolation :3000VDC

Digital Input:
- Channels:12
- Dry Contact: Logic Level 0:Ground
                       Logic Level 1:Open
- Wet Contact: Logic Level 0:0 ~ 3 VDC
                       Logic Level 1:10 ~ 30 VDC
- Support 3 kHz counter(32+ 1bit overflow)
- Support 3 kHz Frequency Measurement
- Support "High-Low" or "Low-High" Latch

Counter Input:
- Channels :2 (32+ 1bit overflow)
- Max count: 4,294,967,295
- Frequency measurement: 0.2 ~ 4500 Hz
- 0 ~ 4500 Hz (counter mode)

Digital Output:
- Channels: 2
- Output Type:open collector, sink mode,MAX 30VDC 100mA
- Support 5 kHz pulse output

Main Features
-  Channels: 16
-  I/O Type: 12DI/2DO/2 Timer
-  Digital Input:
   Dry Contact:
   Logic Level 0: GND
   Logic Level 1: Open
   Wet Contact:
   Logic Level 0: +3V (max)
   Logic Level 1: +10V~30V
-  Digital Output:
   Open Collector 30V (200mA Max Load)
-  Optic Isolation: 2000VRMS
-  Timer:
   Max Timing: 4,294,967,285 (320bit)
   Input Frequency: 0.3~1000Hz max. (Frequency Mode)
                                  5000Hz max. ( Timing Mode)
   Isolation Voltage: 2000VRMS
   Mode: Timers, frequency
-  Power Consumption: 2W (typically)

Ordering Information:
-  R-8351 16-channel Isolated Digital I/O Module with Timer
