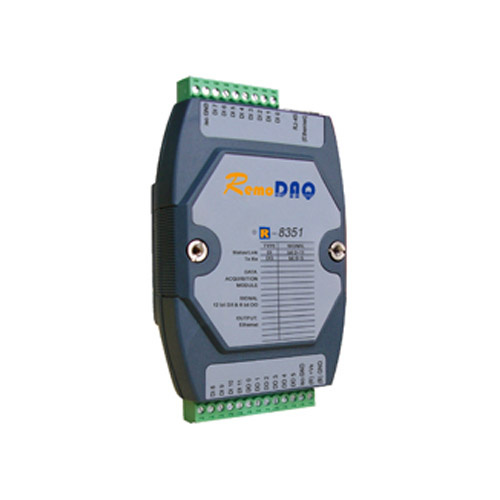

(R-8351) 16-Channel Isolated Digital I/O Module with Timer
Product Specifications
| Prod Model: |
R-8351 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 16-Channel: |
12di/2do/2 Timer |
| Task: |
Program |
| Structure: |
Combination |
| Mathematical Model: |
Linear |
| Signal: |
Continuous |
| Function: |
Automatic Control |
| Certification: |
CE |
| Condition: |
New |
| Customized: |
Customized |
| Material: |
Pcp |
Product Description
Main Features
- Channels: 16
- I/O Type: 12DI/2DO/2 Timer
- Digital Input:
Dry Contact:
Logic Level 0: GND
Logic Level 1: Open
Wet Contact:
Logic Level 0: +3V (max)
Logic Level 1: +10V~30V
- Digital Output:
Open Collector 30V (200mA Max Load)
- Optic Isolation: 2000VRMS
- Timer:
Max Timing: 4,294,967,285 (320bit)
Input Frequency: 0.3~1000Hz max. (Frequency Mode)
5000Hz max. ( Timing Mode)
Isolation Voltage: 2000VRMS
Mode: Timers, frequency
- Power Consumption: 2W (typically)
Ordering Information:
- R-8351 16-channel Isolated Digital I/O Module with Timer
R-8351 is a high-density I/O module built-in a 10/100 based-T interface for seamless Ethernet connectivity. It provides 12 digital input, 2 digital output, and 2 counter channels with 2000 VDC isolation protection. All of the digital input channels support input latch function for important signal handling. Meanwhile, these DI channels allow to be used as 3 kHz counter and frequency input channels. Opposite to the intelligent DI functions, the digital output channels also support pulse output function.
Brief Introduction:
- Support 10/100M Ethernet
- Support Modbus/TCP
- Input voltage +10V~+30VDC
- Power dissipation:1.5W
- Temperature:-20ºC~70ºC
- Temperature:5%~90%,no condensing
- Isolation :3000VDC
Digital Input:
- Channels:12
- Dry Contact: Logic Level 0:Ground
Logic Level 1:Open
- Wet Contact: Logic Level 0:0 ~ 3 VDC
Logic Level 1:10 ~ 30 VDC
- Support 3 kHz counter(32+ 1bit overflow)
- Support 3 kHz Frequency Measurement
- Support "High-Low" or "Low-High" Latch
Counter Input:
- Channels :2 (32+ 1bit overflow)
- Max count: 4,294,967,295
- Frequency measurement: 0.2 ~ 4500 Hz
- 0 ~ 4500 Hz (counter mode)
Digital Output:
- Channels: 2
- Output Type:open collector, sink mode,MAX 30VDC 100mA
- Support 5 kHz pulse output
Founded in 1999, Beijing GEMOTECH Intelligent Technology Co., Ltd. is a high-tech company integrated R & D, production, system integration, sales and services.
GEMOTECH leads the development of industrial control industry on "Embedded Computer" notion and obtains the approval of the customers widely, relying on the forward-looking technical application idea, the remarkable product and the principle "customer benefit is supreme". In October, 2003, we establish industrial data acquisition R & D, manufacturing center,
In order to improve the technical of industrial control devices and enhance the application level. In addition, we obtained the ISO-9001/2000 International Quality and Management System certificate at the end of Year 2005,
So that make sure to supply more considerate service for customers.
Our main products are: PC-BASED products, embedded products, Data Acquisition Modules, Communication Products, which are widespread applied in telecommunications,
Metallurgical, transport, power, railroad, communications, financial and security defense industries.
Nowadays, we have set up the perfect sales and service system throughout the country. There are 3 branches, 6 offices, and some agents and dealers in more than 10 cities in the country. In addition,
The international trade department is set up, which brings the superior technical in line with international practice, to make up the global marketing network. The business covers Asian, European and American areas.
After sixteen years rapid development, GEMOTECH Intelligent Technology Co., Ltd. Persists in the marketing philosophy: "Base in China, move towards the world".
We will provide more superior and more perfect service to the customers on the road of developing China's automation industrial industry.
