Shenzhen Pontron Group Ltd. >> 17'' Embedded Industrial Panel Pc's with PCI Slot (IPPC-1725)

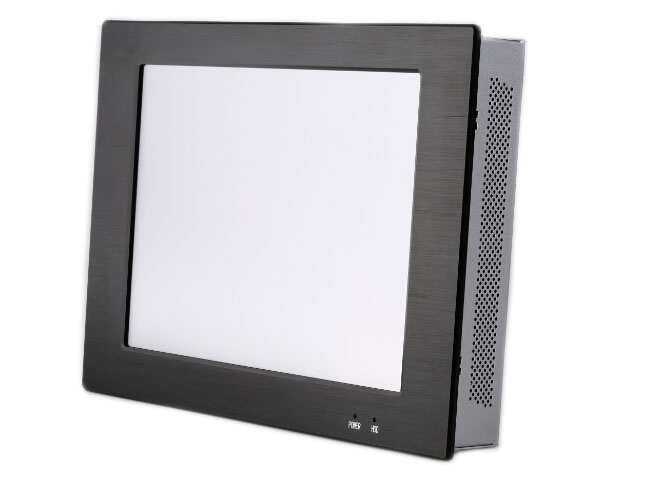

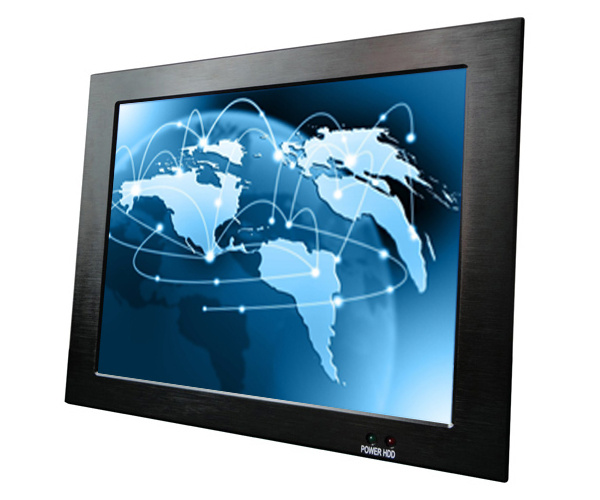

17'' Embedded Industrial Panel Pc's with PCI Slot (IPPC-1725)

Name: 17'' Embedded Industrial Panel Pc's with PCI Slot (IPPC-1725)
Brand: China-Manufacturer-Directory.com
SKU: 720746845
Availability: InStock
Rating: 4.8 (135 reviews)

Supplier:	Shenzhen Pontron Group Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	IPPC-1725
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	IPC
Touch Screen:	Touch Screen
Installation:	Wall-Mounted
Application:	Commercial
Power Supply Type:	ATX12V
Screen Size:	17''
CPU Type:	Intel D2500 Dual Core 1.86GHz
CPU Card Size:	Mini Itx Mother Board
Case Type:	Metal Case
Hard Disk Rack Type:	SSD16g/32g/64G (Optional)
System Expansion Slot:	1*PCI Slot
Accessories:	CD Driver, User Manual etc

Product Description

IPPC-1725 is an industrial panel PC with 17 high brightness LCD, the latest low-power motherboard, 16G SSD. It comes with 1*extensional PCI slot, 2*LAN, 4* USB ports, 4*COM, 1*VGA, 1*DVI, 1*audio, 1*PS/2 KB /mouse.
Smart fanless-design. It has Installation methods: Panel type, wall-mounted, VESA standard etc. And The product structure is very compact and robust with better vibration and resistance.
IPPC-1725 is a cost-effective industrial grade panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.
IP rate: Water proof IP65 front panel (Optional).

CPU		Onboard Intel D2500 Duo core 1.86Ghz
Chipset		Intel D2500cc+Intel NM10
Display	17″high-brightness LCD screen
Resolution	1280X1024
Memory	DDRIII 2GB, up to 4GB
HDD/SSD	HDD:320GB; SSD: 16Gb/32Gb( Optional)
Audio interface	SPK-Out\MIC-In\Line In
Network interface	2x 100/1000Mbps Ethernet controller

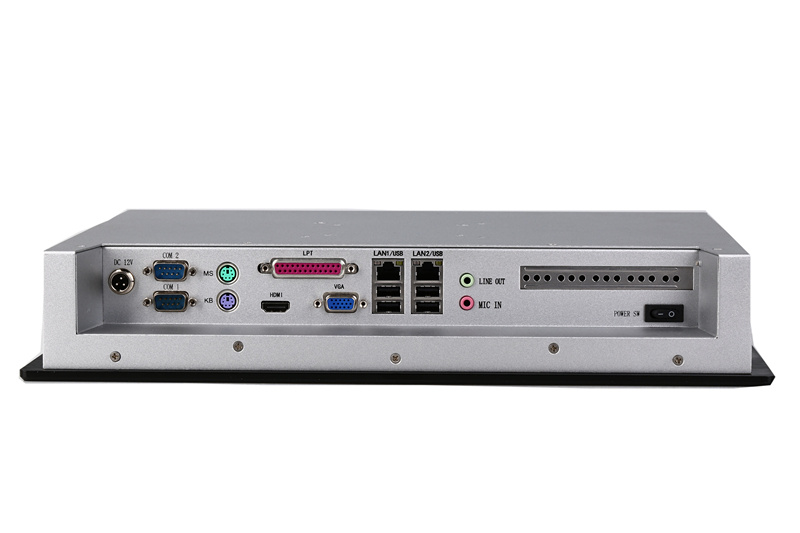

I/O	3×RS23 (1 supports 485/422)
	4×USB2.0
	1×VGA
	2xLAN
	1*Audio
	1*DVI
	1x PCI slot
	1×PS/2 Mouse/ Keyboard
	1xpower switch
Touch screen	5-wire resistive (optional)
Extensional slot	1*PCI slot
Power Supply	DC8-28V 5A power adapter,AC100V~265v 65HZ
Cooling	a 40×20 inlet fan in the chassis,there is sufficient cooling ventilation openings at the bottom of the chassis
Fanless	Fanless design
Dimension	419mm(L)×340mm(W)×74 mm(H)

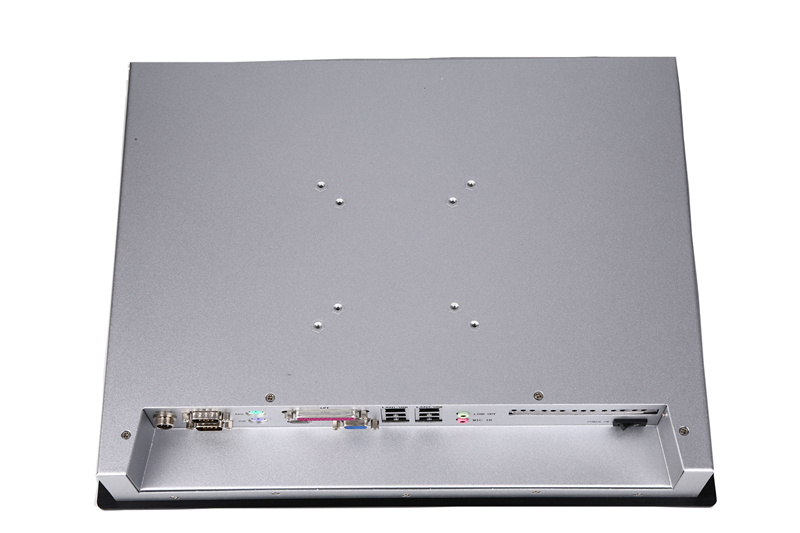

Installation	Panel type, wall- mount, table, bracket etc
Gross Weight	Abt 9.1Kg
Operating temp	-10ºC~50ºC
Humidity	-20ºC~60ºC
