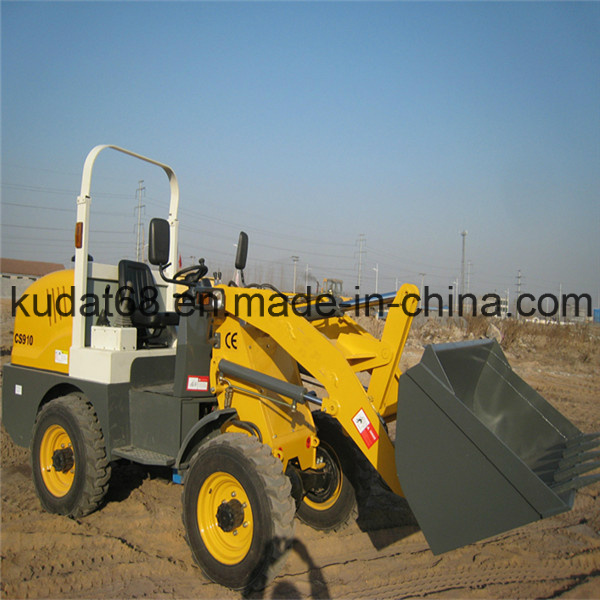

1tons Mini Wheel Loader (CS910)

1tons Mini Wheel Loader (CS910)
Supplier: Wuhan Kudat Industry & Trade Co., Ltd.
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: CS910
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Bucket Capacity: 0.54m3
Rated Loading Weight: 1000kgs
Engine Model: 490bt
Overall Dimension: 4450X1430X2370mm
Operating Weight (Kg): 2690kgs
Grade Ability: 30 Degree
Rated Power: 32.4kw
Dump Clearance(Mm): 850
Rated Speed: 2400rpm
Dump Height: 2420mm
Walking Mode: Wheeled
Condition: New
Type: Small Loader
Certification: ISO9001: 2000
Load And Unload Method: Front Discharge

Product Description

1. Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5. Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
MODEL CS910
(Length*width*height)mm 4450/1430/2370(2000)mm
Loading weight 1.0t
Operating weight 2690kg
Max.traction force 35KN
Min.ground clearance 230mm
Turning angle 35°
Min turning radius 3750mm
Speed
Forward 1 gear 0-7km/h
Forward 2 gear 0-24km/h
Reverse 1 gear 0-7km/h
Reverse 2 gear 0-24km/h
Engine mode 490BT
Rated speed 32.4/2400kw/r/nin
Cylinder/dirameter/stroke 4/108/125
Bucket capacity 0.54 m3
Circulating time 9S
Dump height 2420mm
Dump clearance 850mm
tire 10/12.5
Tire width 270mm
track base 1160 mm
wheel base 1710 mm
Since 1990, Kudat Industry and Trade Company has exported engineering machinery, construction machinery and agricultural machinery to international markets. Satisfying customers' stated and implied needs have always been the focus of business policy of Kudat. As a further step to satisfy customers and to give them confidence in our quality & production capabilities, Kudat has adopted ISO 9001: 2000, the international quality management system. And some of our products have also passed CE and EPA certification.

With a rich inventory of numerous products and vast sourcing capabilities (more than 60 famous manufacturers) cater to the requirements of its customers. Except abundant of products, we also set up factory for studying and producing relative machinery products. From base to top, Kudat holds a unique position in the global market of machinery products which is combination of production and trade.

With 16 years experience in the export of machinery products, Kudat has gained reputation and confidence as a reliable Chinese supplier. By virtue of committed management and dedicated employees, Kudat has gained recognition from the government of China as an excellent exporter.
