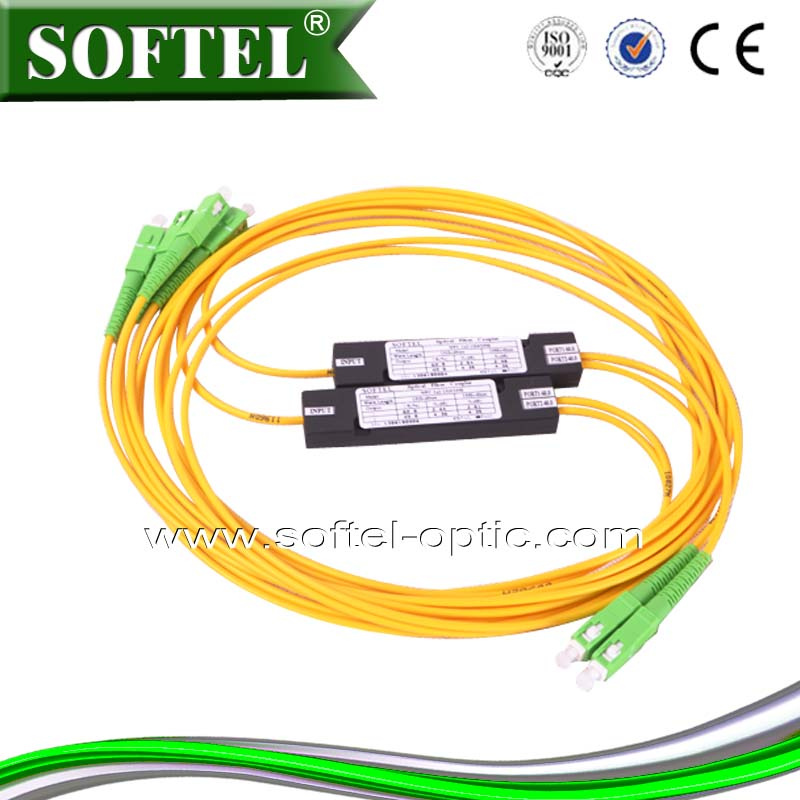

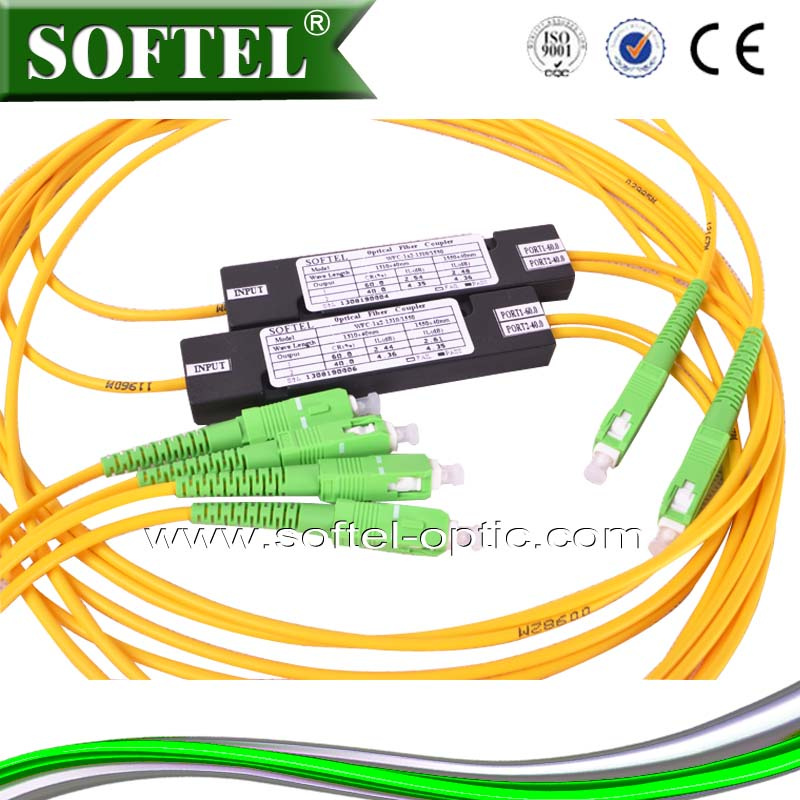

1X2 Single Mode Optical Coupler

Name: 1X2 Single Mode Optical Coupler
Brand: China-Manufacturer-Directory.com
SKU: 685363372
Availability: InStock
Rating: 4.3 (25 reviews)

Supplier:	Hangzhou Softel Optic Co., Ltd.
Price:	US $ 3.5/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Optical coupler
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Optical Fiber Coupler
Application:	FTTH, Fttp, Fttn, Fttc
Connector Type:	Sc,FC,St,LC
Operation Wavelength:	1310nm and 1550nm
Fiber Type:	Corning SMF-28e Fiber
Operating Temperature:	-40~85
MOQ:	1 PCS
Cable Diameter:	2.0mm, 3.0mm, 0.9mm
Cable Length:	1.5meter or Customer Request
Delivery:	7 Working Days
Wiring Devices:	ODF
Type:	Optical Coupler

Product Description

1x2 single mode optical coupler

1. main application

High speed communication systems

Fiber instrumentation

System and signal monitoring

CATV Systems & Fiber Sensors

Local Area Network

2. specification

Low insertion loss

High return loss

Various coupling ratio

Low Polarization dependent loss

Environmental stable

3 more product picture

Parameter	Grade A
Operation Wavelength	1310nm or 1550nm ,Depends on customers
Bandwidth	±20nm			±40m
Excess Loss	≤0.15dB(0.05dB typical)
Coupling Ratio	50/50		40/60		30/70	20/80
Typ. Insertion Loss(dB)	3.05		4.2/2.4		5.4/1.8	7.2/1.1
Max. Insertion Loss(dB)	3.4		4.2/2.5		5.6/1.8	7.4/1.1
Polarization Dependent Loss(dB)	≤0.15
Thermal Stability	≤0.1 dB over -40°C~+85°C
Directivity	1×2	≤55 dB
	2×2	≤60dB
Fiber Length	1.5M

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
