All Dieletric Self-Supporting Fiber Optical ADSS Cable

Name: All Dieletric Self-Supporting Fiber Optical ADSS Cable
Brand: china-manufacturer-directory.com
SKU: 685530282
Availability: InStock
Rating: 4.6 (140 reviews)

Supplier:	Hangzhou Softel Optic Co., Ltd.
Price:	US $ 0.315/Meter
Min Order:	2/Roll
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ADSS Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Apply For:	Aerial/Self-Supporting
Fiber Count:	2-36 Core
Cable Type:	Sm or Mm
Fiber Type:	G652/G655
Outer Sheath:	PE or at
Use:	Pole to Pole
Temperature:	-40 ~ +60 C
Model No.:	ADSS
Delivery Time:	10 Days
MOQ:	2 Drum
Application:	Fiber Optic Cable
Cover Material:	PE
Certification:	ISO
Conductor Material:	Fiber
Type:	ADSS

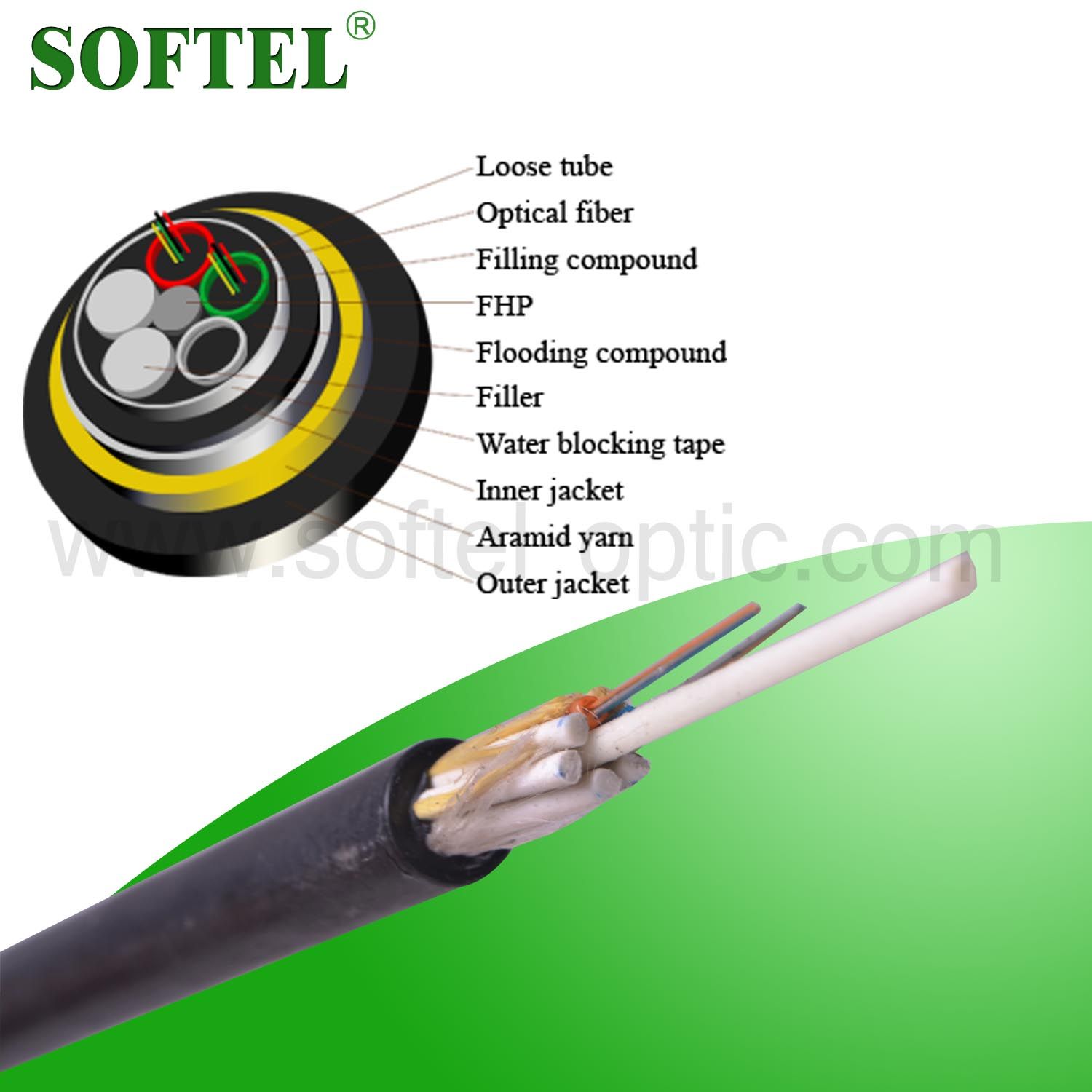

Product Description

[GYXTW] All dreletric application for Aerial Fiber Optical ADSS Cable

Products'Details:

Main application :
Used mainly in areas with high electrical field strength in power communication transmission system, or areas suffered from frequent lightning.

Feature :

1. Low attenuation, low dispersion Proper design and precise excess length control make the cable have outstanding

2. mechanical and environmental performance.
3. Non-metallic construction makes the cable resist the electromagnetic interference well.
4. High strength aramid yarn as strength member ensures high tensile resistance, small diameter and light weight of the cable, fitting for different weather conditions and different installation spans.
5. Special AT outer sheath (optional) offers good electro-erosion resisting performance

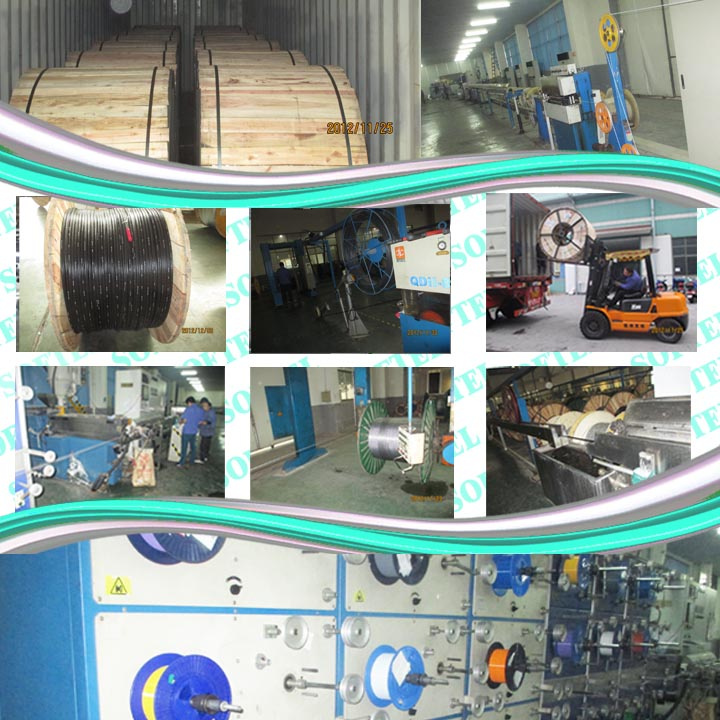

Workshop:

Our Teams:

Designation	Diameter (mm)	RTS(N)	MAT(N)	EDS(N)	Kg/km

2~24 core
ADSS-AT(PE)xx -4KN	12.2	9698	3879	2425	121
ADSS-AT(PE)xx -6KN	12.5	14108	5643	3527	126
ADSS-AT(PE)xx -9KN	12.9	22928	9171	5732	135
ADSS-AT(PE)xx -12KN	13.3	30645	12258	7661	143
ADSS-AT(PE)xx -15KN	13.6	37260	14904	9315	149
ADSS-AT(PE)xx -18KN	13.9	44978	17996	11245	157
ADSS-AT(PE)xx -21KN	14.3	52695	21078	13174	164
ADSS-AT(PE)xx -24KN	14.6	60413	24165	15103	172
ADSS-AT(PE)xx -26KN	14.8	65925	26370	16481	177

26~36 core
ADSS-AT(PE)xx -4KN	12.8	9698	3879	2425	133
ADSS-AT(PE)xx -6KN	13.0	14108	5643	3527	138
ADSS-AT(PE)xx -9KN	13.4	22928	9171	5732	146
ADSS-AT(PE)xx -12KN	13.8	30645	12258	7661	154
ADSS-AT(PE)xx -15KN	14.1	37260	14904	9315	161
ADSS-AT(PE)xx -18KN	14.4	44978	17991	11245	168
ADSS-AT(PE)xx -21KN	14.7	52695	21078	13174	175
ADSS-AT(PE)xx -24KN	15.1	60413	24165	15103	183
ADSS-AT(PE)xx -26KN	15.3	65925	26370	16481	188

Hangzhou Softel Optic Co., Ltd. (Brand: SOFTEL) was established in 2006, which Located in the HangZhou Hi-Tech Development Zone. Taking advantage of the modern broadcast and optic fiber communication technology, we are specializing in R&D of CATV system equipment, and leading manufacturer of HFC broadband Optic Transmission equipment with strong R&D capability in this field.

We have more than 100 staff in which 10% of senior technicians. It has more than 1, 000 square meters standards production assembling line, we have strict QC procedure, each unit of our products will go through 3 layer QC procedure, material checking before production, stability and performance testing after production, packing checking before delivery.

Currently, we supplying to numerous agents, integrated dealers and equipment producers all over the world, most of our products move to South America, Russia and north European countries.

Through keen international business competition in good faith, all of our staffs feel big accomplishment & work under heavy responsibility. In addition, we are much proud of providing our invaluable customers with our high quality, high reliability, high efficiency, competitive products.
