Hangzhou Softel Optic Co., Ltd. >> FRP G657A 6 Core Optical Drop Cable

FRP G657A 6 Core Optical Drop Cable

Name: FRP G657A 6 Core Optical Drop Cable
Brand: china-manufacturer-directory.com
SKU: 693054562
Availability: InStock
Rating: 4.7 (131 reviews)

Supplier:	Hangzhou Softel Optic Co., Ltd.
Price:	US $ 0.08/Meter
Min Order:	1000/Meter
Quantity::
Trade Terms:	FOB,CFR,DAP

Product Specifications

Prod Model:	Drop cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	FTTH Drop Cable
Application In:	Indoor Use
Cores:	2,4,6,8 as Per Your Design
Cable Type:	Gjyxfch-8b6.A2
Fiber Color:	Blue, Orange, Green, Brown, Gray etc
Fiber Type:	9/125 (G657A2)
Operation Temperature:	-20~+60 Degree
Lead Time:	Within 30 Days
Warranty:	12 Months
Application:	Communication
Type:	Single-mode Fiber
Certification:	RoHS
Connection Structure:	Drop Cable

Product Description

6 Core G657A FIber FRP Strengthen Member Optical Drop Cable

Summary

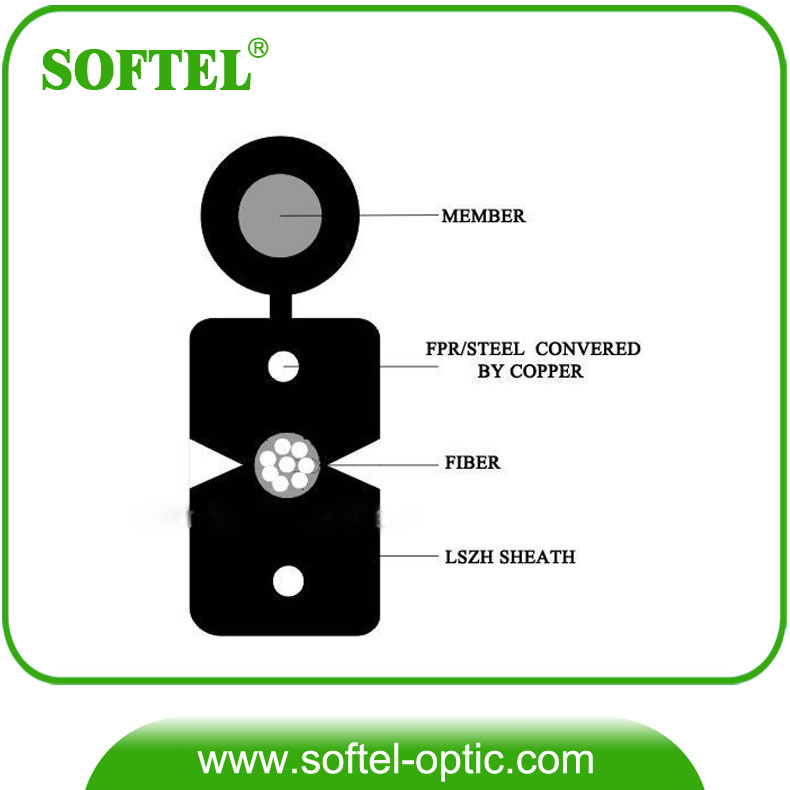

The optical fiber unit is positioned in the centre, two parallel fiber Reinforced plastics (FRP) are placed at
The two sides, A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.

1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2. Two parallel FRP strength members ensures good performance of tensile strength.
3. Simple structure, light weight and high practicability.
4. Novel flute design, easily strip and splice, simplify the installation and maintenance.
5. Low smoke, zero halogen and flame retardant sheath.

Item	Technology parameter
Cable type	GJYFJCH-2B6
Product specification	3.5×6.5
Fiber type	9/125 (G.657A2)
Tight buffer material	LSZH
Tight buffer color	Blue, orange
Tight buffer diameter mm	0.6±0.05
Strength member	Aramid yarn
Suspension unit type	1×7(single steel wire 0.4mm)
Message wire thickness mm	≥0.6
Outer sheath material	LSZH
Outer sheath color	Black
Outer sheath thickness mm	1.0±0.2
Cable weight Kg/km	Approx. 28.0
Min. bending radius mm	With suspension unit: 130 Without suspension unit: 15
Attenuation dB/km	<= 0.4 at 1310nm, <= 0.3 at 1550nm
Short term tensile N	600
Crush resistance N/100mm	1000
Operation temperature ºC	-10~+70

Item	Technology parameter
Cable type	GJYFJCH-4B6
Product specification	4.0×7.0
Fiber type	9/125 (G.657A2)
Tight buffer material	LSZH
Tight buffer color	Blue, orange, green, brown
Tight buffer diameter mm	0.6±0.05
Strength member	Aramid yarn
Suspension unit type	1×7(single steel wire 0.4mm)
Message wire thickness mm	≥0.6
Outer sheath material	LSZH
Outer sheath color	Black
Outer sheath thickness mm	1.0±0.2
Cable weight Kg/km	Approx. 34.5
Min. bending radius mm	With suspension unit: 130 Without suspension unit: 15
Attenuation dB/km	<= 0.4 at 1310nm, <= 0.3 at 1550nm
Short term tensile N	600
Crush resistance N/100mm	1000
Operation temperature ºC	-10~+70

Item	Technology parameter
Cable type	GJYXCH-4B6
Cable specification	5.2×2.0
Fiber color	Nature, blue, orange, green
Fiber type	9/125 (G657A2)
Sheath color	Black
Sheath material	LSZH
Cable dimension mm	5.2(±0.2)*2.0(±0.2)
Cable weight Kg/km	Approx. 19.5
Min. bending radius mm	120
Min. bending radius(rip off the messenger wire) mm	10 (Static) 25 (Dynamic)
Attenuation dB/km	<= 0.4 at 1310nm, <= 0.3 at 1550nm
Short term tensile N	600
Crush resistance N/100mm	2200
Operation temperature ºC	-20~+60
