Shenzhen Kingspec Electronics Technology Co., Ltd. >> 2.5"SATA Multicore Series Solid State Disk M5000 Series

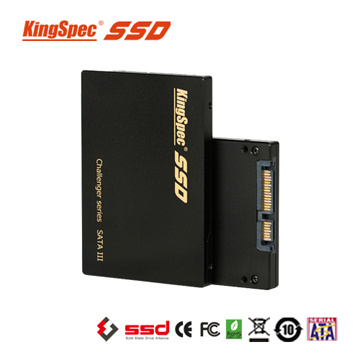

2.5"SATA Multicore Series Solid State Disk M5000 Series

Supplier:	Shenzhen Kingspec Electronics Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	EXW

Product Specifications

Prod Model:	M5000-XXX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	2.5 Inch
Physical Thickness:	9mm
Installation:	Internal
Application:	Laptop
Type:	Solid State Disk
Interface Type:	SATA3.0
Capacity:	60GB/120GB/240GB/480GB

Product Description

Challenger Series SATA III SSD is designed base on high reliability and high performance processor, with excellent sequential read and write ability and perfect random IOPS performance, it has broken the speed bottleneck of SATA III that limited by traditional HDD, make a full play of SSD. With the unique DuraWriteTM data write of the controller greatly extend the service life of flash memory, meanwhile the AES data confidentiality to ensure the security of data, the RADIO allows users to easily set up a disk array features, and achieve higher performance.

Main Features:
Compliant with SATA 6Gbps Specification
Low power consumption
Noise Free, Shock Resistant
ECC Correction Code
CE, RoHS, FCC compliant
Interface: SATA-III
Physical Thickness: 9mm
Flash: MLC NAND FLASH
Operating tenperature: 0C-70C
IOPS Random Read(4KB): 60K
IOPS Random Write(4KB): 30K
Max Read: 500MB/s
Max Write: 500MB/s
MTBF: More than 1, 000, 000hours
Capacity: 60GB, 120GB, 240GB, 480GB

For all UltraBook with SATA-III interface.

Model	SATA III 2.5
General	Form factor	2.5
General	Interface	SATA III
Performance	Capacity	60GB \| 120GB \| 240GB \| 480GB
	Sustained Read	500MB/S \| 500MB/S \| 500MB/S \| 500MB/S
	Sustained Write	410MB/S \| 470MB/S \| 480MB/S \| 500MB/S \|
	Random IOPS
	4KB Random Read IOPS	50000
	4KB Random Write IOPS	20000
	Average Access time	0.2ms
Storage Media	NAND Flash	MLC
Power Consumption	input Voltage	5V+/_5%
	Idle	0.5W
	Active	2.0W
Reliability& Endurance	Write endurance	16years @100GBytes write and erase per day at 60GB
	Read endurance	unlimited
	Wear-Leveling Algorithm	Dynamic and static wear-leveling
	Data Retention	10years at 25ºC
	MTBF	1,300,000hours
	ECC	Supports BCH ECC 8bits or 15bits in 512 bytes
	Bad Block Management	Auto Bad Block Management in system
Environment	Operating Temperature	0~70C
	Non-operating Temperature	-40~85C
	Shock
	Vibration
	Ambient Humidity
Warranty	2years
Available unit	Available	NO EOL
Testing Platform	CPU: Intel® Core(TM) i5-2400 CPU @ 3.10GHz Chipset: Intel® Z68 Express Chipset Memory: Kingston KHX1600C9D3C1K2/4GX OS: Microsoft Windows 7 Professional 64-bit AHCI Driver: Server Express Chipset SATA AHCI Controller BIOS Settings: AHCI Mode
Testing Software	PC Mark,CrystalDiskMark v3.0 ,AS SSD Benchmark,HD Tune PRO 3.50
Physical Dimensions & Weight	Height(mm)	7
	Width(mm)	69.8
	Length(mm)	100
	Weight(g)	TDB
*The read and write speed is limited to this test platform
