Product Specifications
| Prod Model: |
KSD-SA18.5-XXXMJ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1.8 Inch |
| Nand Flash: |
MLC/SLC |
| Certification: |
CE, RoHS, FCC, Reach |
| Factory Certification: |
ISO9001:2008 |
| Lead Time: |
3 Days |
| Warranty: |
3 Years |
| Payment Option: |
Paypal, Tt |
| Package: |
Resell Package |
| Delivery: |
DHL, UPS, TNT |
| Installation: |
Internal |
| Interface Type: |
SATAII |
| Application: |
Server |
| Type: |
Solid State Disk |
| Capacity: |
≤40GB |
Product Description
Our products and technologies are designed with an emphasis on quality and are unique for each application in the consumer computing and industrial/embedded.

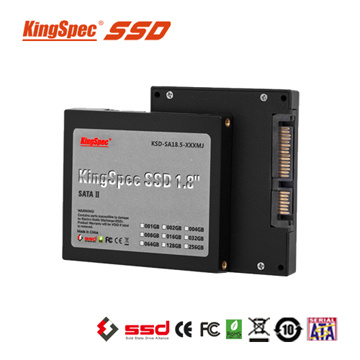

New 1.8" SATAII Flash Disk for laptop upgrade
Why KingSpec
A. KingSpec is a service-driven SSD manufacturer, our own factory is located in Shenzhen China;
B. Full range of production line, including PCIE Card, 2.5" SATA, 2.5" PATA, 1.8" SATA, 1.8" IDE, SATA DOM, PATA DOM, USB DOM, mSATA, SATA Slim, CF card, CFast Card etc;
C. Professional Service Attitude:
-Quality guaranteed products
-Strict quality control standards
-Short lead time
-Low product defect rate
-Large Production capacity
D. Reliability Testing
-High and low temperature testing
-High and low humidity testing
-Power failure testing
E. KingSpec SSD Advanced Functions
-RAID 0 /RAID 1 /RAID 01
-SMART
-TRIM
-NCQ
New 1.8" SATAII 128GB Flash Disk for laptop upgrade
Interface: SATAIII
Factors: 1.8"
Capacity: 128GB MLC
Warranty: 3 years
KingSpec 1.8" SATA2 MLC SSD
Notebook Upgrade: According to the needs of notebook and DIY, we develop a range of products, which is a boon for the notebook of general performance and DIY. It no need to replace the notebook, but can also enhance their performance. There are various types of products for customers to choose.
Main Features:
Module No: KSD-SA18.5-XXXMJ
Sustained Read/Write: 98/52 MB/s;
Random IOPS: 5, 166;
Average Access time: 0.2ms;
Input Voltage: 5V± 5%;
Idle: 0.5W;
Active: 2.0W;
Warranty: 2years.
Application: All Notebook & equipment with SATA.
|
Model |
SATA 1.8 MLC |
|
General |
Form factor |
1.8 |
|
Interface |
SATA |
|
Performance |
Capacity |
8GB | 16GB | 32GB | 64GB | 128GB |
|
Sustained Read |
50MB/S | 97MB/S | 97MB/S | 97MB/S | 97MB/S |
|
Sustained Write |
14MB/S | 30MB/S | 53MB/S | 53MB/S | 53MB/S |
|
Random IOPS |
|
|
4KB Random Read IOPS |
|
|
4KB Random Write IOPS |
|
|
Average Access time |
0.2ms |
|
Storage Media |
NAND Flash |
MLC-NAND Flash |
|
Power Consumption |
input Voltage |
5V± 5% |
|
Idle |
0.5W |
|
Active |
2.0W |
|
Reliability& Endurance |
Write endurance |
8years@10GBytes write and erase per day |
|
Read endurance |
unlimited |
|
Wear-Leveling Algorithm |
Dynamic and static wear-leveling |
|
Data Retention |
10years at 25ºC |
|
MTBF |
1,000,000hours |
|
ECC |
Supports BCH ECC 8bits or 15bits in 512 bytes |
|
Bad Block Management |
Auto Bad Block Management in system |
|
Environment |
Operating Temperature |
0~70C |
|
Non-operating Temperature |
-40~85C |
|
Shock |
2,000G(@0.3ms half sine wave) |
|
Vibration |
20G(40-2000HZ) |
|
Ambient Humidity |
5-95% |
|
Warranty |
2years |
|
Available unit |
Available |
NO EOL |
|
Testing Platform |
AMD Athlon 64 3000+ 1.8GHz,DDR2 PC2-5300 512MB×2pcs double channel.RAM,NVIDIA nForce520 chipset,Microsoft Windows XP Professional SP3 |
|
Testing Software |
HDBench3.4.0.3, IOMeter 2006.07.27 |
|
Physical Dimensions & Weight |
Height(mm) |
8.3+/_0.25 |
|
Width(mm) |
60.1+/_0.25 |
|
Length(mm) |
70.0+/_0.25 |
|
Weight(g) |
40 |
|
*The read and write speed is limited to this test platform. |
