Product Specifications
| Prod Model: |
CSN-A6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Description: |
2" Mini Thermal Panel Printer for Recording Meter |
| Printing Speed: |
50-80mm/S |
| Printing Method: |
Thermal Line |
| Resolution: |
8 Dots/Mm, 384 Dots/Line |
| Paper Width: |
58mm |
| Effective Printing Width: |
48mm |
| Paper Type: |
Thermal Paper |
| Dimension: |
83X58.5X47 Mm |
| Color: |
Black/White |
| Brand Name: |
Cashino/OEM |
| Style: |
Color |
| Interface Type: |
RS232/Ttl/Parallel |
| Type: |
Thermal Type |
| Consumable Type: |
Thermal Line |
| Max. Paper Size: |
58mm |
| Usage: |
Thermal Printer |
Product Description

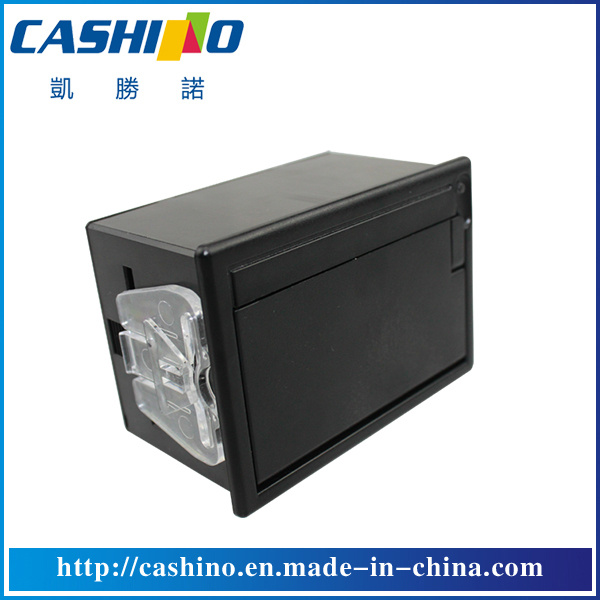

2" Mini Thermal Panel Printer for Recording Meter
Feature:
Smart appearance
Easy paper loading
Low noise thermal printing
Different interfaces optional
Front panel make paper replacement easily
Easily embedded to any kinds of instruments and meters
Application:
Taxi meter print proposal
Recording Meter print proposal
Self-service Print proposal
Ticket Machine print proposal
Medical instrument print proposal
Weight Machine Print proposal
Electric Instrument Print proposal
Test Instrument Print proposal
Specification:
Print |
Printing Method |
Thermal Dot Line |
Printing Speed |
50-80mm/s |
Resolution |
8 dots/mm, 384 dots/line |
Effective Printing Width |
48mm |
Character |
Character Set |
ASCII,GB2312-80(Chinese) |
Print Font |
ANK:8x16,9x17,9x24,12×24,
GBK: 16×16,24×24 |
Paper Spec |
Paper Type |
Thermal paper |
Paper Width |
57.5± 0.5mm |
Paper Thickness |
60-85µm |
Paper Roll Diameter |
Max: 30mm |
Reliability |
MCBF |
5 million lines |
Interface |
Parallel/RS232/TTL/USB |
Insert Depth |
43.5 mm |
Power Supply (Adapter) |
DC5V-9V/12V |
Physical |
Outline Dimension (WxDxH) |
83x58.5x47 mm |
InstallationPortSize |
78x53.5mm |
Color |
Black/Beige |
Environment |
Operating Temp |
5°C ~ 50°C |
Operating Humidity |
10% ~ 80% |
Storage Temp |
-20°C ~ 60°C |
Storage Humidity |
10% ~ 90% |
