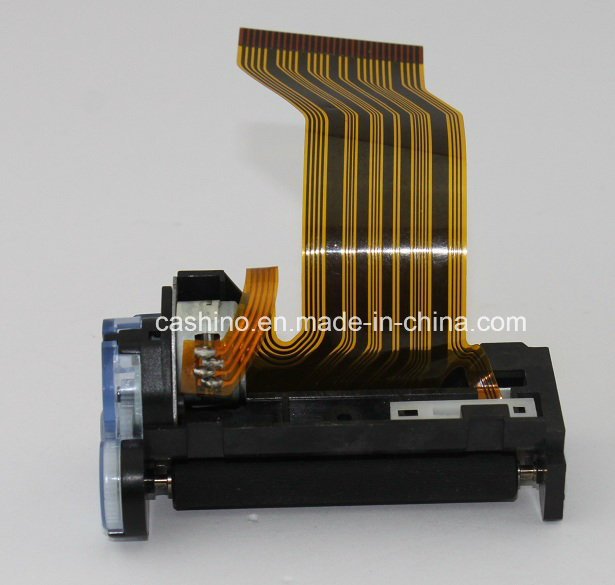

2'' thermal printer mechanism compatible with APS ELM-208
Specificatitions:
1.58mm thermal printer mechanism
2.58mm paper width
3.high speed (up to 90mm/c ,8.5V)
4.easy paper load
5.48mm print width
Packaging & Delivery
Packaging Detail:250units/cartons
Delivery Detail:1-2weeks
Feature:
1.Compatible with APS ELM -208
2.Paper width:57±1mm
3.Easy paper load
4.Compact design
5.Low Noise
6.Pasteboard print and paper detect
7.Mechanism life(50KM)
8.High speed(Up to 90mm/s printing speed.
9.Printing width 48mm
Application:
1.Be applicable for cash register
2.POS printer
3.ticket printer terminal
4.measure and medical treatment equipment
Specifications:
|
Type |
TP-208 |
|
Print method |
Thermal dot line printing |
|
Resolution (dots/mm) |
8 |
|
Dot per line (dots/line) |
384 |
|
Speed (mm/sec) |
Up to 90mm/s |
|
Print width/Paper width(mm) |
48/58 |
|
Head temperature detect |
Via thermistor |
|
Thermal Printer head detect |
Via photo interrupter |
|
Paper detect |
Via photo interrupter |
|
Life span |
Pulses |
100 million |
|
Structure life (km) |
50 |
|
Operation voltage range (V) |
TP-485A-H |
3.0 - 8.0 |
|
TP-485A-B |
4.2V - 9.0 |
|
Logical voltage(V) |
3.0 7.0 |
|
Dimensions (length X width X depth) (mm) |
67.4L*30.8W*30.7D |
|
Weight (g) |
Approach 38
|
