Product Specifications
| Prod Model: |

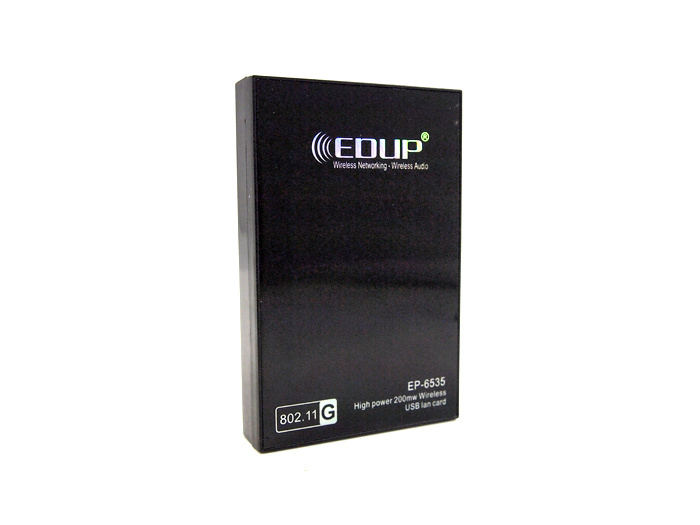

EP-6535 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Interface: |
USB |
| Transmission Rate: |
54Mbps |
| Application: |
Laptop |
| Type: |
Wireless |
Product Description
Description
The same as 802.11b devices, EP-6535 is using a single 2.4GHz frequency band, eliminating the trouble of using the dual-band network. Compatible with existing 802.11g wireless LAN standard, you do not have to change all the network equipment and you can continue to maintain network connectivity.
Easily upgrade to higher bandwidth:
Through the wireless network equipment and have to maintain compatibility, the card can be upgraded to a higher speed you need. EP-6535 and other 802.11g standard devices can be gradually increased to your network, in the process to maintain the existing network is still a good transparency.
Features
802.11bg wireless LAN standard, compatible with 802.11b devices
2.4GHz frequency bandwidth
Fast USB2.0 desktop / notebook interface
Up to 54Mbps wireless transmission rate
User demand WEP 64/128 bit data encryption and WPA security standards
Support for Windows 98 SE, 2000, ME, XP operating system
Integrated antenna
Small compact portable design
Supports USB 2.0 interface, backward compatible to USB 1.1 and 1.2
Enhanced WEP and WPA wireless security for protected Internet access
64-bit / 128-bit WEP (Wired Equivalent Privacy), TKIP, AES 2.400GHz ISM
Frequency Band Modulation Method: QPSK / BPSK / 16-QAM / 64-QAM
Supports Ad Hoc and Infrastructure modes
Supports IEEE 802.11e standard
Specifications
Wireless Standards IEEE 802.11g
IEEE 802.11b
Host Interface High speed USB2.0/1.1 interface
Data Rate 802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback
802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback
Frequency Band 2.4GHz ISM (Industrial Scientific Medical) Band
Chipset GW3887
RF Frequency 2412 ~ 2462 MHz (North America)
2412 ~ 2472 MHz (Europe)
2412 ~ 2484 MHz (Japan)
Radio Channel 1 ~ 14 channels (Universal Domain Selection)
Antenna type Integrated Antenna
Roaming Full mobility and seamless roaming from cell to cell
RF Output Power 13 ~17 dBm (Typical)
Modulation 11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
11b: DQPSK, DBPSK, DSSS, CCK
Data Security 64/128-bit WEP Encryption
WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES
Network Auto-switch to use 802.11g or 802.11b mode
Supports Ad-Hoc, Infrastructure WLAN network
Wireless roaming
Data rate auto fall-back under noisy environment or longer range distance
Site Survey with Profile function
Configuration & Management Plug-and-Play setup and installation
Management Utility supports Windows 98 SE, 2000, ME, XP
Media Access Control CSMA/CA with ACK
LED Indicator Link/Active ( Green )
Operating System Windows 98 SE, 2000, ME, XP
Environment Operating Temperature: 0oC to 40oC
Storage Temperature: -20oC to 75oC
Operating Humidity: 10% ~ 90% (Non Condensing)
Storage Humidity: 5% ~ 95% (Non Condensing)
Compliant FCC (USA)
CE Mark (Europe)
RoHS Compliant
Wi-Fi Compliant
Requirements
Operating System
Windows 98 SE, 2000, ME, XP
Available USB 2.0 port
Package Content
1 x Wireless-G USB 2.0 Adapter
1 x Driver CD
1 x USB Cable
