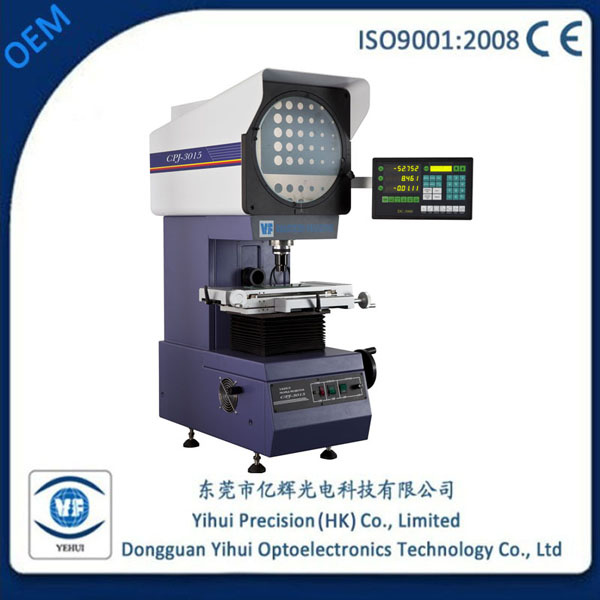

2013 Testing Profile Projector
Usages:
1. Profile Projector(CPJ-3015) is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.
2. It can inpect all kinds of surface and outline of compli-cated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
3. It's widely used in the trade of mechanism, meter, electricity, ligt industry, college, research institute and measurement-inslecting department.
4. Measurement data can output and connect printer and computer.
Guarantee:
12 months warranty. Buy with confidence!
1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.
2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.
3. We provide life warranty services of machine for users with cost.
1) If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
2) But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation.
4. Extra warranty period: We will provider to user after-sale lifelong advisory service.
5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sales value-added technical service by preferential price for life, such as technical upgrades and retrofit.
About us:
We also produce: Video Measuring Machine (VMS),CMM etc.
Welcome to visit our factory!!!
Modle
|
CPJ-3010 |
CPJ-3015 |
CPJ-3020 |
CPJ-3025 |
Table |
The metal table’s size(mm) |
306x152 |
340x152 |
404x228 |
450x280 |
|
The glass table’s size(mm) |
175x100 |
196x110 |
260x160 |
306x196 |
|
X-axis travel(mm) |
100 |
150 |
200 |
250 |
|
Y-axis travel(mm) |
50 |
50 |
100 |
150 |
|
Z-axis travel(mm) |
90 |
90 |
90 |
90 |
|
Measuring accuracy(um) |
3+L/200 |
3+L200 |
3+L/200 |
3+L/200 |
|
Resolution(X-axis,Y-axis):0.001mm |
|
Projector screen |
Screen size (mm):Ø 312 Used range>Ø 300(with the meter line) |
|
Screen rotary range:0°~360° |
|
Resolution(X-axis,Y-axis):1´ or 0.01° |
Lens |
Magnification: 10X(option) 20X(option) 50X(option) 100X(option) |
|
Object view(mm): Ø30 Ø15 Ø6 Ø3 |
|
Working distance(mm): 77.7 44.3 38.4 25.3 |
|
Data Processing System |
DC-3000 multi-function data processing system ,appearing in English ,can be used to gather the data and measure the point , line, circle, angle and distance. |
|
Illumination |
The illumination of transmission and reflection: 24V/150W-halogen lamp. |
|
Power |
110V/220V(AC), 50/60HZ, Total power=400W |
|
Cold |
By three fans |
|
Dimensions |
L*W*H(mm) |
770x550x1100 |
770x600x1100 |
780x780x1100 |
810x780x1120 |
|
weight |
Unit:(kg) |
170 |
180 |
190 |
200 |
|
Option |
Mini-printer,Edge detector,M2D software and so on,please refer to Accessories for measuring projector for more details. |
