Dongguan Yihui Optoelectronics Technology Co., Ltd. >> Mechanical Measuring Instruments (CPJ-3025)

Mechanical Measuring Instruments (CPJ-3025)

Name: Mechanical Measuring Instruments (CPJ-3025)
Brand: China-Manufacturer-Directory.com
SKU: 710414185
Availability: InStock
Rating: 4.7 (138 reviews)

Supplier:	Dongguan Yihui Optoelectronics Technology Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	CPJ-3025
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mechanical Measuring Instruments:	for Profile Measure and Inspection
Application:	Cutter, Spring, Instrument, Electronic etc
Precision:	3um
Resolution:	0.001mm
Measuring Range:	250x150mm
Weight:	200kg
Warranty:	12 Months
Location:	Dongguan
Type:	Standard
Measure Method:	Manual
Material:	Aluminum Alloy

Product Description

No Difficult Products to Test in the World!

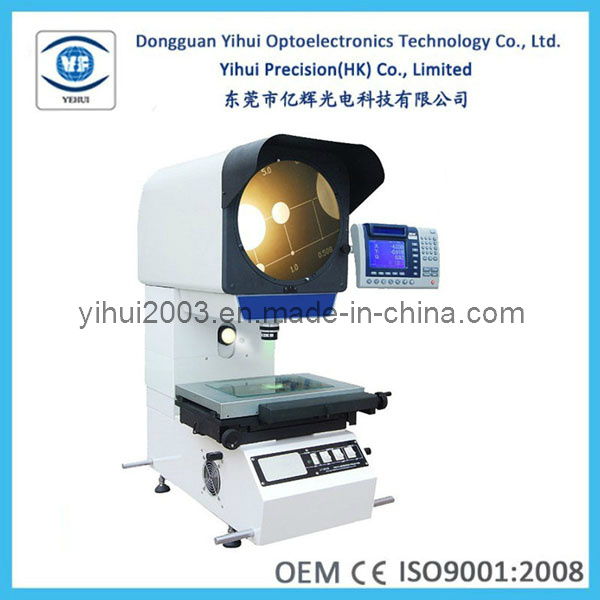

Mechanical Measuring Instruments(CPJ-3025)

Usages:

1. Vertical Optical Comparator(CPJ-3025) is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.
2. It can inpect all kinds of surface and outline of compli-cated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
3. It's widely used in the trade of mechanism, meter, electricity, ligt industry, college, research institute and measurement-inslecting department.
4. Measurement data can output and connect printer and computer.

Guarantee: 12 months warranty. Buy with confidence!

1. Within 12 months from the date of assemble and acceptance, but not exceeding 15 months from the date if shipment.
2. During this period, we will take phone and internet teaching to users with a combinative after-sale advisory service.
3. We provide life warranty services of machine for users with cost.
1) If machine failure caused by our side, you can send back the spare parts to us and the cost by our side.
2) But if needs our technician come to customer side for training, technical service is free, except ticket and accommodation.
4. Extra warranty period: We will provider to user after-sale lifelong advisory service.
5. Our company has spare parts which can be provided for the users with cost.
6. We provided users with after-sales value-added technical service by preferential price for life, such as technical upgrades and retrofit.

About us:

We also produce: Video Measuring Machine (VMS), CMM etc. Welcome to visit our factory! ! !

Modle			CPJ-3010			CPJ-3015		CPJ-3020	CPJ-3025
Table	The metal table’s size(mm)		306x152			340x152		404x228	450x280
	The glass table’s size(mm)		175x100			196x110		260x160	306x196
	X-axis travel(mm)		100			150		200	250
	Y-axis travel(mm)		50			50		100	150
	Z-axis travel(mm)		90			90		90	90
	Measuring accuracy(um)		3+L/200			3+L200		3+L/200	3+L/200
	Resolution(X-axis,Y-axis):0.001mm
Projector screen	Screen size (mm):Ø 312 Used range>Ø 300(with the meter line)
	Screen rotary range:0°~360°
	Resolution(X-axis,Y-axis):1´ or 0.01°
Lens	Magnification: 10X(option) 20X(option) 50X(option) 100X(option)
	Object view(mm): Ø30 Ø15 Ø6 Ø3
	Working distance(mm): 77.7 44.3 38.4 25.3
Data Processing System	DC-3000 multi-function data processing system ,appearing in English ,can be used to gather the data and measure the point , line, circle, angle and distance.
Illumination	The illumination of transmission and reflection: 24V/150W-halogen lamp.
Power	110V/220V(AC), 50/60HZ, Total power=400W
Cold	By three fans
Dimensions	LWH(mm)	770x550x1100		770x600x1100			780x780x1100			810x780x1120
weight	Unit:(kg)	170			180		190			200
Option	Mini-printer,Edge detector,M2D software and so on,please refer to Accessories for measuring projector for more details.

Dongguan Yihui Optoelectronics Technology Co., Ltd. was established in 2003, which is a high-tech enterprise with the precision measuring equipment R&D, prodution and sales. Our main products are: Video measuring machine, optical projectors, CMM, tool microscope etc. It is widely used in electronics, plastics, mold, machinery, hardware, clocks and connectors, mobile and other industries.

At present, our company have passed ISO9001 and CE Certificate. What's more, we has more than 30 design patents, and got the sofware copyright registration certificate awarded by the state intellectual property office.

"Customer oriented, quality first, standardized management, continuous transformation" is our company's operating philosophy. Base on leading technology, excellent quality and scientific management makes our company recognized by our customers.

Our Target: No Difficult Products To Test In The World!
