Price: | US $ 308500-376800/Piece |
---|---|
Trade Terms: | FOB,CIF |
Min Order: | 1/Piece |
Pay Type: | L/C,T/T |
Prod Model: | 13"~24.5" |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: | Dynamic Balancing Machine |
Conditon: | New |
Brand Name: | Desiree |
Delivery: | 3months |
Type: | Tire Machinery |
Type Of General Rubber Machinery: | Dynamic Balancing Machine |
Type Of Tire Machinery: | Test Machine |
Weight: | 50~300 tons |
Power: | 10~100KW |
Voltage: | 380V |
Certification: | CE, ISO |
Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of high quality rubber machinery.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.

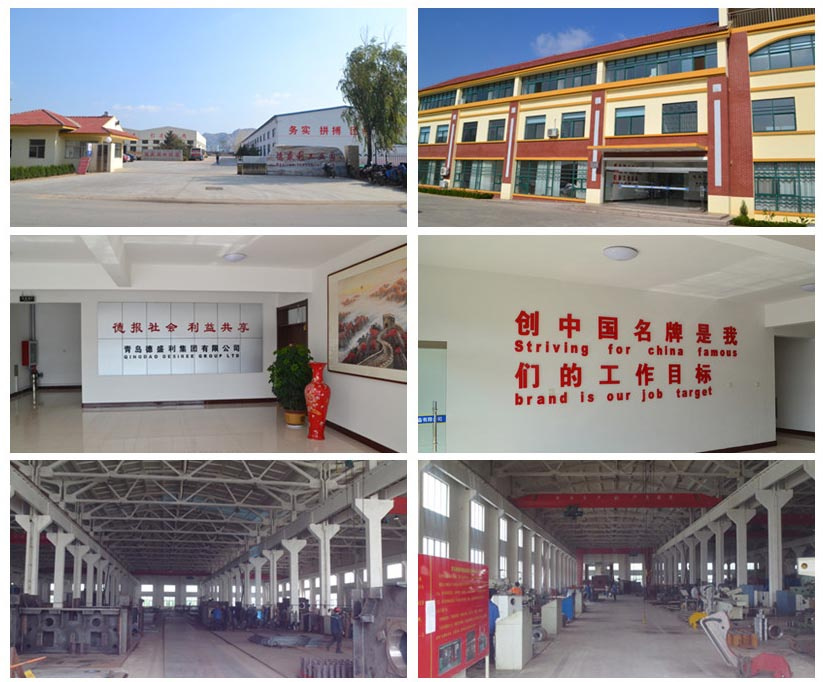

Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Quality is our life. Striving for China famous brand is our job target.
Dynamic Balancing Machine Parameters | ||||
Tyre test category | Heavy duty/Bus radial tyre | Semi-steel radial tyre | ||
Tyre size | Outer diameter | 700-1300mm | 450-1050mm | |
Rim diameter | 16-24.5" | 13-22" | ||
Section width | Max:450mm | Max:400mm | ||
Test precision | Dynamic balance resolution | 0.1g | 0.1g | |
Ellipticity precision | 0.01mm | |||
Repeatability precision | Amount of unbalance | ±5.0g | ±5.0g | |
Angle | ±2.5º | ±2.5º | ||
5x5test | Dvalue of unbalance amount: ±7.5g | 5g | ||
Surface separating precision | ≤2% | ≤2% | ||
Marking precision | ≤±5.0% | ≤±5.0% | ||
Testing period | Dynamic balance test | Max:40s | Max:28s | |
Ellipticity test | Max:45s | |||
Dynamic balance/ellipticity test | Max:60s | |||
Rim size | 16"-17.5"-19.5";20"-22.5"-24.5" | 13"-14"-15" | ||
15"-16"-17" | ||||
17"-18"-19" | ||||
20"-21"-22" |
