Ovality Testing Machine

Name: Ovality Testing Machine
Brand: China-Manufacturer-Directory.com
SKU: 690623162
Availability: InStock
Rating: 4.4 (82 reviews)

Supplier:	Qingdao Desiree Group Rubber Machinery Co., Ltd.
Price:	US $ 308500-376800/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	13"~24.5"
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Ovality Testing Machine
Conditon:	New
Brand Name:	Desiree
Delivery:	3months
Warranty:	12months
Service:	Customer First.
Type:	Tire Machinery
Type Of General Rubber Machinery:	Dynamic Balancing Machine
Type Of Tire Machinery:	Test Machine
Certification:	CE, ISO

Product Description

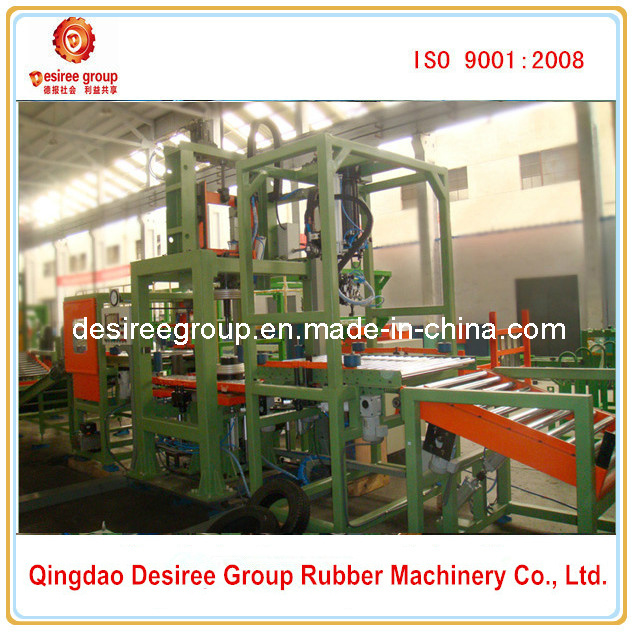

Ovality Testing Machine

Function:
This machine is mainly used to test the balance performance, size tolerance and roughness of heavy-duty tyres by auto mode on line.

Features:
This machine is composed of test working position, grade transportation, safe protecting device, electric control device, pneumatic control system, lubricating device, etc., tyre conveying plant is optional.

It could test several size of tyres with the characters of eccentric spindle auto-compensator, monitor ambient temperature and humidity, mark the auto complete&storage, remote control interface, system network interface, etc...

Rims could be designed to multi-step.

Company Information:
About us:

Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of high quality rubber machinery.

The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.

Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.

Quality is our life. Striving for China famous brand is our job target.

Any question about our products, please feel free to contact with me.
We are always pleased to serve you at any time.

Ovality Testing Machine Parameters
Tyre test category	Heavy duty/Bus radial tyre			Semi-steel radial tyre
Tyre size	Outer diameter	700-1300mm		450-1050mm
	Rim diameter	16-24.5"		13-22"
	Section width	Max:450mm		Max:400mm
Test precision	Dynamic balance resolution	0.1g		0.1g
	Ellipticity precision	0.01mm
	Repeatability precision	Amount of unbalance	±5.0g	±5.0g
		Angle	±2.5º	±2.5º
	5x5test	Dvalue of unbalance amount: ±7.5g		5g
	Surface separating precision	≤2%		≤2%
	Marking precision	≤±5.0%		≤±5.0%
Testing period	Dynamic balance test	Max:40s		Max:28s
	Ellipticity test	Max:45s
	Dynamic balance/ellipticity test	Max:60s
Rim size	16"-17.5"-19.5";20"-22.5"-24.5"			13"-14"-15"
				15"-16"-17"
				17"-18"-19"
				20"-21"-22"
