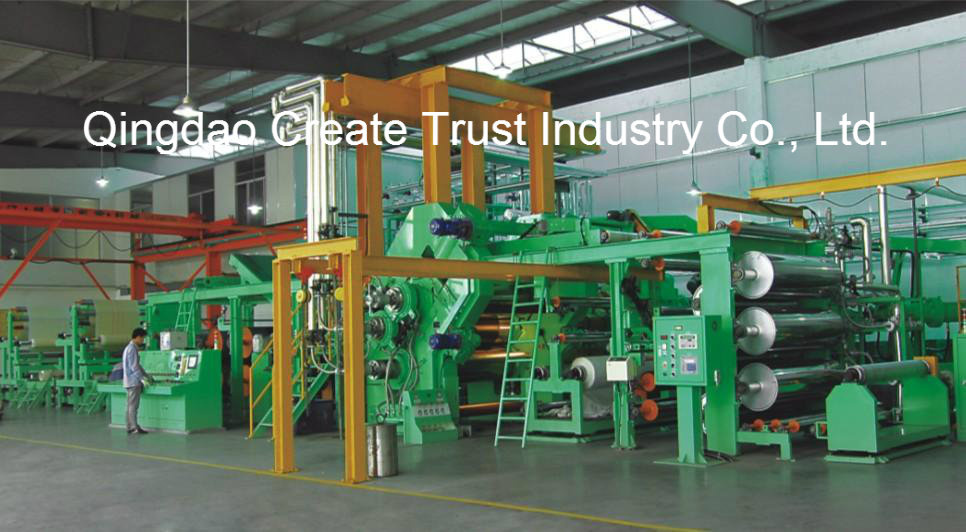

2015 High Technical PVC Calender with Full Automatic Control System
Product Specifications
| Prod Model: |
XY1650 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Roll Material: |
Chrome Plated More Thickness Than Other Supplier |
| PLC: |
Simens Brand,Automatic Control ,High Precision |
| Lubrication System: |
Automatic by Grease or Oil ,You Can Choose |
| Standards: |
Completely Follow CE and ISO9001:2008 |
| Reducer: |
Hardened Gear Teeth,Submerged Lubrication |
| Bush: |
Ball Bearing Bush,Longlife Use |
| Thickness And Precision Of Products: |
More Than 0.2mm, Precision Is 0.03 Mm |
Product Description
Name: PVC calender,PVC calender machine, PVC calendering machie,PVC film machine,PVC sheeting machine
Model No.: XY3I1730
Usage :
Mixer-Planetary Extruder(or Banbury mixer)-Open Rubber Mixing Mill-Waggle convey system-calender machine-Cooling auxiliary machine.
Application & Feature:
Rigid & Semi-rigid PVC Film Calender Line is specilized design to produce transparent, semi-transparent and various colored rigid and semi-rigid PVC film. By our professional designs of automatic Printing Machine and Embossing Machine, products can be manufactured with many kinds of patterns with high quality and texture.
Soft PVC film are divided into two main kinds: one is super transparent film and the other is colored PVC film. High-quality transparent film is applied for inflated products and high-quality packing material. Inflatable film is made to meet the trendy requirements nowadays since they are non-toxic, non-phenol, good for welding and embossing, fireproof, highly durable and resistant with low shrinking rate.
we can produce production lines according to the performance and function of different products,and can design machines according to customer's production process requirement.
Technical Data:
Type |
XY-4F230 |
XY-4F250 |
XY-4F300 |
XY-4F360 |
Roller working part length(mm) |
635~720 |
635~720 |
600~900 |
900~1200 |
Width of rolled products(mm) |
≤500~600 |
≤500~600 |
≤500~700 |
≤700~1000 |
Min.thickness for calendering(mm) |
≥0.20 |
≥0.20 |
≥0.20 |
≥0.20 |
Designed roller speed(m/min) |
1.04~10.35 |
13.60 |
16.49 |
22.16 |
Motor power(kw) |
22 |
22 |
37 |
55 |
Overall dimendion(L*W*H)(mm) |
2650/2750×1200×1800 |
3500/3600×1250×1900 |
4000/4300×1400×2300 |
4400/4700×1700×2400 |
Weight(t) |
~3.5 |
~3.5 |
~8 |
~13 |
Type |
XY-4F400 |
XY-4F450 |
XY-4F560 |
XY-4F610 |
Roller working part length(mm) |
1200~1400 |
1200~1500 |
1530~1650 |
1730 |
Width of rolled products(mm) |
≤1000~1200 |
≤1000~1300 |
≤1300~1400 |
≤1500 |
Min.thickness for calendering(mm) |
≥0.20 |
≥0.20 |
≥0.20 |
≥0.20 |
Designed roller speed(m/min) |
22.20 |
24.98 |
31.09 |
30.10 |
Motor power(kw) |
75 |
110 |
160 |
200 |
Overall dimendion(L*W*H)(mm) |
5300/5500×1860×2510 |
6150/6450×2300×3300 |
6900/7000×2600×3860 |
7500×3700×4000 |
Weight(t) |
~16 |
~30 |
~50 |
~58 |
Auxiliary machine for calender can be cooling device, powder device,belt conveyor,take-up device ect .
Service of us
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
Qingdao Create Trust Industry Co., Ltd. is established in 1990, is a modern science and technology enterprises which is committed to the R&D, design, production, sale of rubber machinery. After more than two decades of development and accumulation, we are now emerged as a dedicated manufacturer of rubber machinery in China.
Our product catalogue offers a wide range of machinery, such as rubber machinery, tyre machinery, as well as casting machinery below:
Rubber mixing equipment: Open mixing mill, Banbury mixer, Rubber kneader, Rubber refiner, Rubber cracker, Rubber bale cutter, Double conical-screw extruder and sheeters, etc.
Vulcanizing press: Press vulcanizer, Tyre vulcanizer, Tube press, Vacuum vulcanizing machine, vulcanization vessel (autoclave), belt splicing machine ect.
Extrusion equipment: Cold feed extruder, Hot feeding extruder, Rubber strainer, etc.
Calendering equipment: Three roll calender, four-roll calender, as well as auxiliary equipment.
Cooling equipment: Batch off cooling machine
Other equipment: Rubber injection molding machine, Rubber preformer, etc.
Technical of production line:
Reclaimed rubber production line, Waste tyre recycling production line, Rubber tile production line, EVA foaming production line, EVA recycling granulation production line, Rubber hose extrusion line, Tire retreading machine, Waste tire pyrolysis equipment, rubber sealing strip extrusion line, and so on.
Also we has implemented production process in conformance with ISO9001: 2008 Quality Management System Certification and CE. Owing independent import and export right, we export our equipment to Russia, Turkey, Southeast Asia, South America, Europe, the Middle East, as well as other countries and regions. Our products enjoy high reputation in these markets and you can purchase them with a peace of mind.
Our company adheres strictly to the business philosophy of sincerity orientation, quality first, timely service, and continuous innovation. We look forward to building a brighter tomorrow together with our extensive customers!
