2015 New Caf High Efficient Cavitation Air Flotation Device for Waste Water Treatment
| Price: |
US $ 5888-29999set |
| Trade Terms: |
FOB,others |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
We "Earth Guard" specializes in wastewater treatment equipment,
dissolved air flotation machine,buried sewage treatment machine,
sludge dehydrating machine,mud scrapers.Introduction
CAF series cavitation air flotation sedimentation equipment is the advanced technical equipment, manufactured after assimilating the American flotation equipment. It deals with different kinds of wastewater according to the principle of combined mechanical aeration with chemical flocculation. The water after treating could be used as recycling water or discharged after secondary treatment. Pollution control up to the standard could improve the image of the corporate and the river ecological landscape, recovery of aquaculture irrigation, protection of the water environment. it not only has the social benefits, but also has considerable economic benefits.
Feature
1)low investment, low energy consumption, automatic slag without noise, convenient operation and management.
2) it is better if uses super filter with a guide plate to do pre-treating, removing coarser impurities of the SS,reducing the load of flotation machine and reducing the consumption of flocculant , great adoptability to the change of water quantity and quality.
3) No dissolved-air tank, air compressor, high pressure water pump needed compared with domestic traditional devices and energy consumption is 1/8 to 1/10 of traditional equipment.
4)The equipment could remove the solid suspended load, lipa and any kind of jelly, reduces BOD,COD, SS etc and improves the color of the water.
5)The system is used to purifying wastewater for paper, chemical, printing and dyeing,food industries

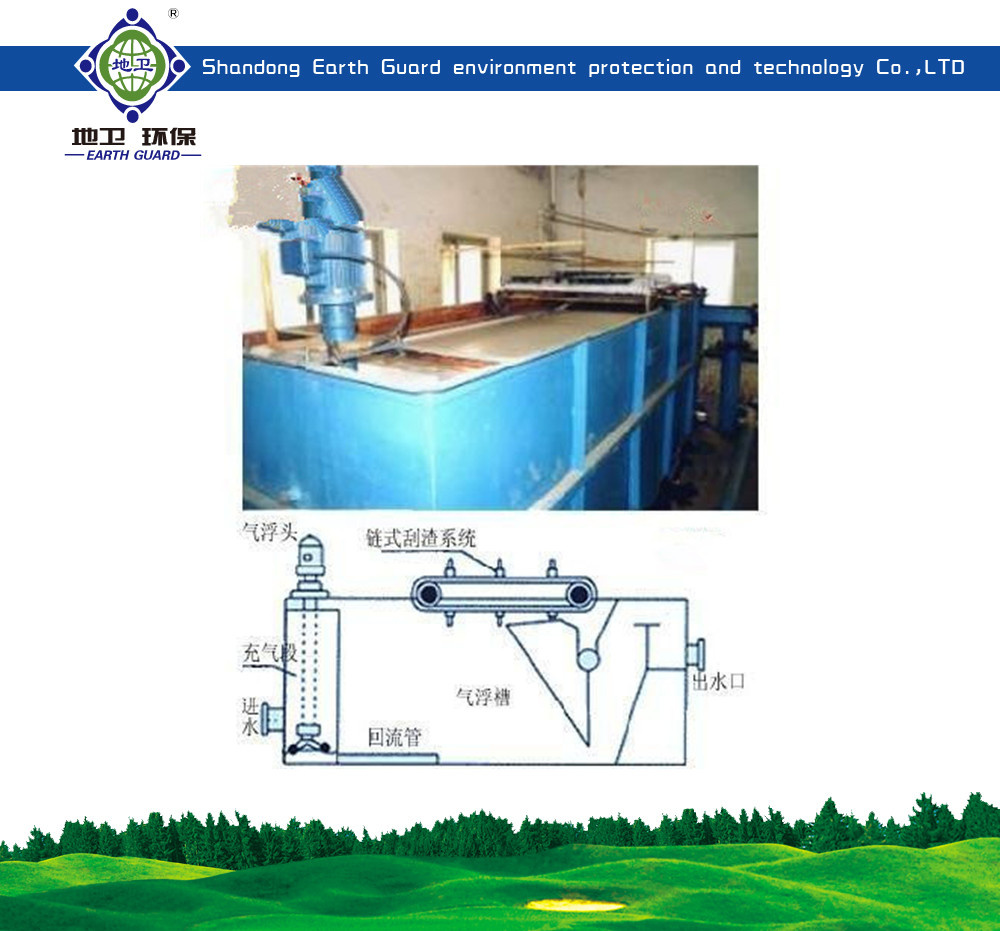

Operating principle
Pre-treated wastewater is pushed into super filter to do pre-treating and preliminarily purified after being screened and filtered, and then the water is pumped or flowed into air flotation sedimentation equipment. In the end this water is agglomerated after being injected with suitable flocculants. Submerged air flotation aeration, the latest product, is under the principal of creating an airless space in water by using rotating with high speed of the bulk gas impeller under the air delivery pipe and the air is Inhaled into the water, and then the tiny bubbles are produced and raised circularly to the surface of water with oxygen in the air put into the water.
As the unbalance pressure between the liquid and mixture of steam and water, a vertical upward buoyancy is produced which pushes the suspended solid to the surface of water. The tiny bubbles adhered on the suspended solid while raising. After arrived the surface of water, the suspended solid stays on the surface of the water in the support of the bubbles and is removed through air thrust in radiation ways.
The suspended solid floating in the water, is cleared out by overhead crane slag scraper or raddle scraper, the scraper moving along the whole surface of the water, pushing the suspended solid from the inlet end of the air flotation tank to the outlet end,and then falls into the scum trough through the metal plate as the same time stores and collects the sludge into sludge collecting troughs.
As to the falling SS, some are designed by using backflow to do air flotation again.Let us to think, if the proportion of SS is bigger than water, it is difficult to be air floated to the surface of the water,so we set up a precipitation cone.As the water floes relatively slowly ,slow settling could be remained,so we could settle SS into the cone, and then being discharged regularly.
The water after purification flows into overflow device before discharging. Adjustable water level unit is setted up on this overflow device to control the level of air flotation trough, which ensures that the scraper avoids wastewater into the scum discharging tube while working.
Specification
Type | Flow(m³/H) | Tank length( m) | Tank width(m) | Tank depth (m) | power(KW) |
| CAF-5 | 5 | 2 | 1.25 | 1.25 | 2.75 |
| CAF-10 | 10 | 3.0 | 1.25 | 1.25 | 2.75 |
| CAF-15 | 15 | 4.5 | 1.25 | 1.25 | 2.75 |
| CAF-20 | 20 | 4.8 | 1.5 | 1.25 | 2.75 |
| CAF-25 | 25 | 5.5 | 1.5 | 1.25 | 2.75 |
| CAF-30 | 30 | 5.5 | 1.5 | 1.5 | 2.75 |
| CAF-35 | 35 | 6 | 1.5 | 1.5 | 2.75 |
| CAF-50 | 50 | 6 | 1.8 | 1.8 | 2.75 |
| CAF-80 | 80 | 8 | 2.12 | 1.8 | 4.95 |
| CAF-100 | 100 | 9.5 | 2.12 | 1.8 | 4.95 |
| CAF-150 | 150 | 15 | 2.12 | 1.8 | 7.15 |
| CAF-175 | 175 | 15.5 | 2.4 | 1.8 | 7.15 |
| CAF-200 | 200 | 17.7 | 2.4 | 1.8 | 9.35 |
| CAF-320 | 320 | 22.5 | 3 | 1.8 | 11.55 |
| CAF-400 | 400 | 24.5 | 3.5 | 1.8 | 13.95 |
| CAF-500 | 500 | 26.5 | 4 | 1.8 | 13.95
|

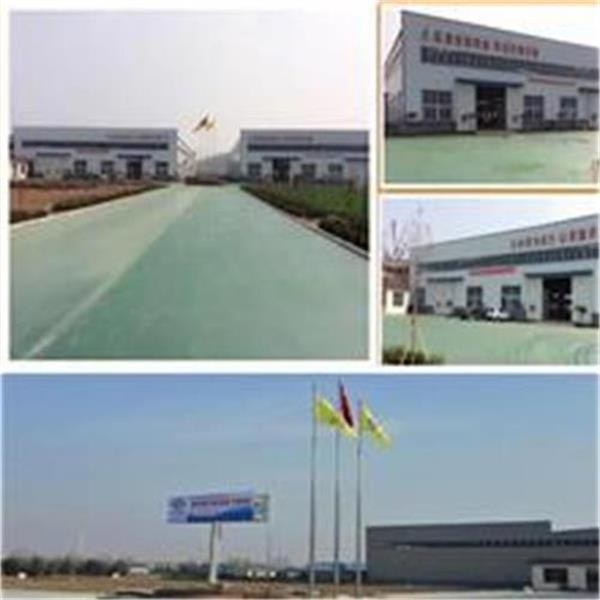

Our company
We "Earth Guard" specializes in wastewater treatment equipment, dissolved air flotation machine,buried sewage treatment machine, sludge dehydrating machine,mud scrapers.
Over the years we have provided a large number of quality products and services for domestic and international environment engineerings in chemical,food, textile, electric power, metallurgy,petroleum, coal.
We strictly follow the the philosophy of "life -oriented, credibility is the gold" First person and then the idea of doing things to promise to provide customers with high-quality products and good services.
Qualifications and certificate
Our Sevices
If you have any questions about our product or our company,please feel free to email me or chat with me through Trademanager.
Our earth, our world,our earth guard strives to make the world much cleaner,let us hand in hand to make the the world a better place to be.
Our transportation
FAQ
1)Q:How about your company?
A:We are a factory that specializes in production and design of
wastewater treatment equipments for more than 10 years.
2)Q:What is your address? How can I pay you a visit?
A:Our factory is located in Qiaozhuang industrial park,206
national street,Zhucheng city,Weifang,Shandong Provice,China.
It is 2 hours away from Qingdao international airport and we
can pick you up from there if necessary.Welcone to China,
welcome to our factory.
3)Q:Do you have any certificates?
A:Yes,we have ISO,SGS cerficates.
4)Q:How to buy your ideal products ?
A:You can provide us your water sources ,water quality,
water flow rates and ground area (connect us for more details )
5)Q:How to pay ?
A:TT and L/C are acceptable and TT will be more
appreciated. 30% deposit before producing, 70% balance
before loading by TT
6)Q:What is the delivery time ?
A:It depends on the quantities,generally speaking,
the delivery time will be within 4 to 5 weeks.
7)Q:How to pack the products ?
A:We use standard package.if you have special package
requirements,we will pack as required.
8)Q:How to keep your equipments from corrosion?
A:we use the world famous paint,like Sigmacoatings,
painBowETc,what's more ,we paint strictly according to the
standard requirments .
9)Q:How do you manufacture your equipment ?
A:We use laser cutting ,automatic welding ,CNC cutting
and bending to manufacture the equipment
10)Q:.How to install after the equipments arriving destination ?
A:We will provide detailed illustrations to you,if necessary
,we will send technicians to help you,however,the visafee,air
tickets ,accommodation wages will be paid by buyers.
| Prod Model: |
CAF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Customized (Green, Blue or Grey) |
| Material: |
Carbon Steel or Stainless Steel |
| Quantity Of Sewage Treatment: |
Customized |
| Name: |
Air Flotation |
| Brand: |
Earth Guard |
| Packaging Detail: |
Designed According to The Customer's Needs |
| Place Of Origin: |
Shandong, China (Mainland) |
| Payment: |
T/T, L/C |
| Treat Method: |
Combined Treatment |
| Treatment Capacity: |
5-100m3/H |
| Method: |
Combined Treatment |
| Usage: |
Industrial |
Shandong earth guard environment protection and technology Co., Ltd referred as " the Guardian green" is a professional technological enterprises in environment equipments production and sales. Not only do we have a strong capacity in production and a complete history of more than ten years in equipments research and production services of environment protection, but also has a high-quality team with integrity dedicated to the cause of environment protection.
"the Guardian green" poses in the building of a integrated equipment business which specializes in the development, production, installation, commissioning, operation and service of environment protection products.
Our goals are striving to make high-quality, fine and trustworthy products that can compete with foreign brands; Let the customers enjoy the high-quality service and high quality products at the same save a lot of foreign exchanges.
Our company can provide the entire processing design of the whole sludge dewatering and the whole service of equipment design and manufacturing, installation and commissioning for the sewage treatment plant. Products available include a variety of dissolved air flotation machine, CAF precipitation machine, buried sewage treatment machine, truss car scraper suction machine, suction machine bridge scraper to remove SS micro filtration, mechanical grid gate series and so on. All products use high-quality raw materials, advanced anti-corrosion technology to satisfy the preservative requirements of the water treatment equipment in harsh working environment.
Over the years we have provided a large number of quality products and services for domestic and international environment engineerings in chemical, food, textile, electric power, metallurgy, petroleum, coal.
Down to earth, pursing steady developments, providing users with first-class products and services, holding the spirit of doing fine, being specialized and stronger, we strive to be a leading modern enterprise in the field of China's environment equipment in protection and production.
We strictly follow the the philosophy of "life -oriented, credibility is the gold". First person and then the idea of doing things to promise to provide customers with high-quality products and good services.
