Product Specifications
| Prod Model: |
LEEB432 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cut-off Lengths: |
0.25mm/0.8mm/2.5mm |
| Evaluation Length: |
1.25mm/4mm/5mm |
| Sesor: |
Piezocreystal |
| Power Supply: |
3.7V Lithium-Ion Battery |
| Weight: |
440g |
| Dimensions: |
119*47*65MMS |

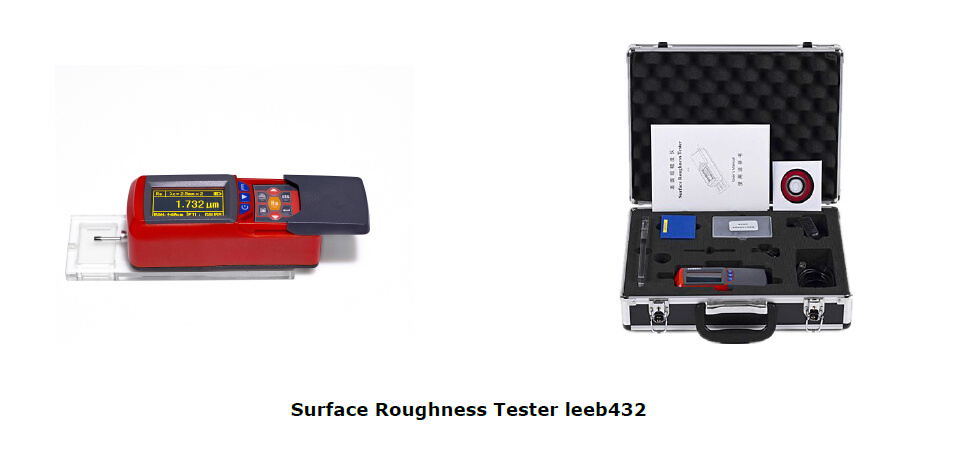

Product Description
Main Function
Small and light, easy to use, suitable for field measurement
Controlled by DSP chip, fast speed of testing with lower consumption and high precision.
Compatible of ISO/ DIN/ ANSI/ JIS standards.
Can measure 13 parameters
LCD liquid crystal display measurement parameters and graphics
In both Chinese and English menu operation
Inner equipped with high quality lithium ion rechargeable battery, with high capacity and unlimited memory efficiency;
Electric quantity indicator, display the charging process.
Continuous working time more than 20 hours
Can store more than 100 groups of measuring data and wave forms.
Real-time clock setting;
Low power consumption: Auto sleep, automatic shutdown function of saving energy;
Display of various of noting information, such as measuring information, menu notice information and error information.
All metal shell, firm, small and easy to operate with high reliability.
Freely selection of Languages, including Chinese and English.
Can be connected with computer and printer.
Optional accessories include: curved sensor, hole sensor, measuring table, sensor jacket, extension bar.
Technical Specification
| Model | leeb432 |
| Roughness parameter | Ra,Ry,Rq,Rz,Rt,RSm,RS,Rp,Rv,R3z,RSk,Rmax,Rmr |
| Resolution | 0.001μm |
| Cut-off lengths | 0.25mm / 0.8mm / 2.5mm |
| Evaluation length | 1.25mm / 4mm / 5mm |
| Standard | ISO,DIN,ANSI,JIS |
| Accuracy | ≤±10% |
| Repeatability | <6% |
| Sensor | Piezocrystal |
| Power supply | 3.7V Lithium-Ion battery |
| Operating temperature | 0 ºC -40 ºC |
| Weight | 440g |
| Dimensions | 119×47×65mm |
| Standard Delivery | Main Unit,Standard sensor,Model for multi-standard groove,Power adapter |

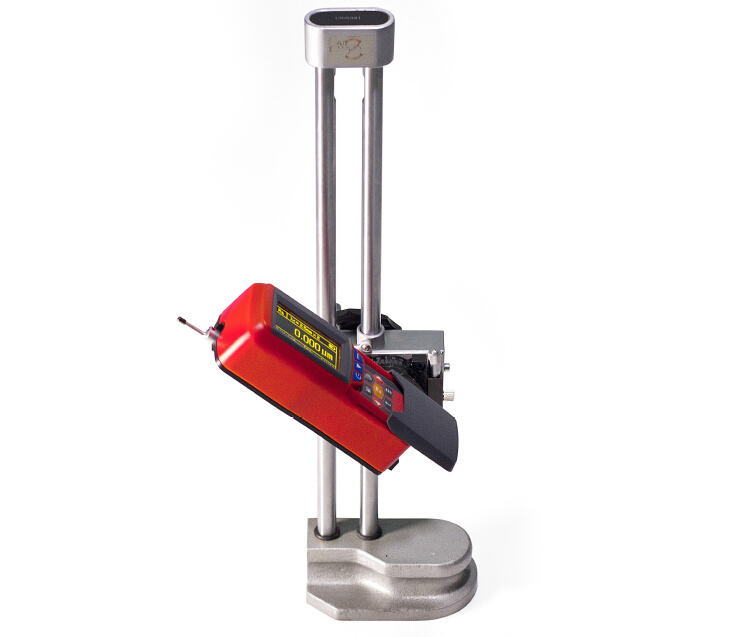

| Optional Accessories | Measurement Platform, printer ,PC analysis software |
Chongqing Leeb Instrument Co., Ltd, located at High-tech Industrial Development Zone of Chongqing, China, specialized in researching, manufacturing and sales of NDT Testing Instruments over 20 years.
We offer high quality testing instruments and accessories, including Hardness Tester, Coating Thickness Gauge Ultrasonic Thickness series, Roughness Instrument and Ultrasonic Flaw Detector etc.
Acquired ISO9001 and CE certificate, LEEB has become the member of National Product Size and Geometry Specifications Standardization Committee, participated in the technical specification criteria related with geometry. In 2011, LEEB Ultrasonic Flaw Detector received the State Science and Technology Innovation Fund.
With technical innovation, high quality products with favorable price and satisfactory service, LEEB realized top 2 brand in this field of China, and aims to be the most valuable brand in the industry of testing instrument.
And now, we are going to open the oversea markets, are looking for the oversea agencies with high quality and low price. Pls feel free to contact us if you are interested in any product.
