Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 6*USB2.0+2*USD3.0: |
12V-24V DC Power Supply |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Maximum Memory Capacity: |
16G |
| Structure: |
Mini-ITX |
| Memory: |
DDR3 |
| SATA Interface: |
SATA2.0 |
Product Description

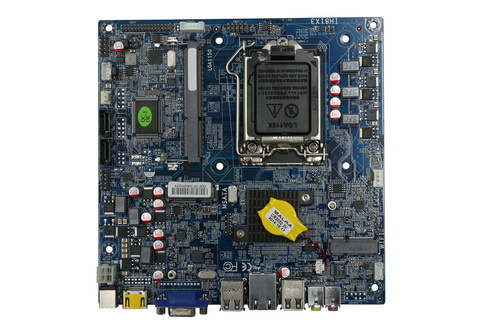

CPU Intel core i7,core i5,core i3i processor
Chipset Single chip: Intel H81
Memory 1 xSODM DDR3 1333/1066MHz DIMM, Max support 16GB
Graphics support DirectX 9.0C
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard Realtek 8111E, 10/100/1000M lan support PXE.
Storage Interface 2x SATA2.0 Hard disk connector
Expansion Slots 2x MINI PCIE solt
USB Support 8 PCS USB Port (4 pcs need extend),including 2pcs USB3.0
Internal
I/O Connectors 1 x 4-pin12V-24V DC main power supply
2 x SATA headers
1 x CPU fan header
1 x SYS fan header
1 x front panel header
1 x F_Audio header (stock without)
2 x USB 2.0 headers
1 x Auto_On header (Power-on)
1 x 12V/19V SEL
1 x LVDS header
1 x Invert Header
1 x VGA_H header
1x Speaker header
1x Clear CMOS Header
Back Panel
Connectors 1 x VGA port
1X HDMI port
2 x USB 3.0 ports
1 x RJ-45 Giga LAN
2 x USB 2.0 ports
1 x audio 2 Jacks( Line-out, MIC or Line-in )
I/O Controller 1 x IT8782F
BIOS AMI Authorized 32Mbit BIOS process, support RPL/PXE
Form Factor Mini-ITX 170 x 170mm
Work Environmental
Working conditional temperature -15~55°C
Working conditional humidity 10%~80% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
