Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 6*1000m LAN: |
8USB |
| Integrated Graphics: |
Integrated Graphics |
| Main Chipset: |
Intel |
| Maximum Memory Capacity: |
8G |
| Structure: |
ATX |
| Memory: |
DDR3 |

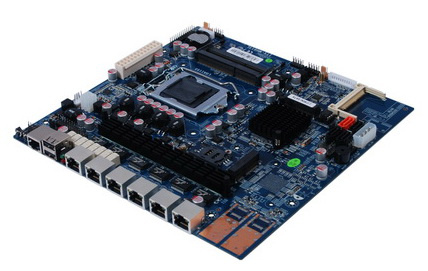

Product Description
CPU Supports Intel Sandy bridge/Ivy Bridge 32nm/22nm LGA1155
Chipset Intel B75
Graphics Intel CPU, internal graphics core
Display Output Intel VGA header
Memory 2*SO-DIMM,DDR3 1066\1333\1600MHz Memory, max up to 8GB
Audio
LAN 6*Intel 82574 1000M
Storage Interface 3*SATAII,1*SATAIII
Expansion Slots 2*MINI-PCIE(for M-SATA/WIFI) 1*SIM 1*CF
USB 2*USB2.0(on the back panel)
4*USB2.0(connected to the internal USB header via the USB Cable)
COM 2*COM(1*Rj45 to COM on the back panel)
Back Panel
I/O Connectors 2*USB2.0
6*RJ-45 GLAN
1*RJ-45 to COM
1*PWR
1*RESET
1*LED(power LED)
Internal I/O Connectors 1*4pin ATX
1*24pin ATX
1*IDE-PWR
2*USB2.0 headers(extensible to 4*USB ports)
1*12PIN VGA header
1*LPT port
1*GPIO header
1*PS/2 port
1*F-PANEL header
1-6 LAN-LED headers
1*CLR_CMOS
1*SATA-PWR header
2*SYS-FAN headers
1*CPU-FAN header
1*DEBUG-CON
BIOS AMI 32M BIOS
Power Supply ATX 24+4 pins
Cooling System Need self-configured CPU radiator and CPU fan
Working Environment -15~60ºC; relative humidity: 0% ~ 95%, non-condensing
Form Factor 230X230MM
