Product Specifications
| Prod Model: |
WPS-140-R |
| Markets: |
North America,Eastern Europe,Western Europe |
| PT Camera: |
Pan 360degree & Tilt 180 Degree Camera |
| Camera Size: |
70mm (Diameter) * 140mm (Length) |
| Sensor Size: |
1/4inch |
| Camera Viewing Angle: |
120degree |
| Light Rescource: |
18PCS White LEDs |
| Cable Length: |
20m(Standard), as Your Requirement |
| Soft Cable Diameter: |
6.5mm |
| Camera Used For: |
Chimney Inspection |
Product Description

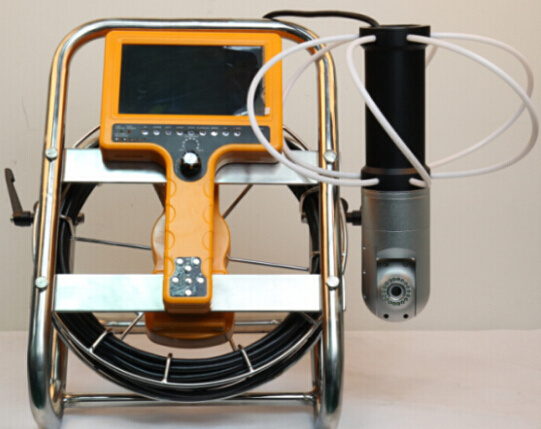

Pan & Tilt Chimney Inspection Camera WPS-140-R
It supports video recording, sound recording, pan 360 degree tilt 180 degree rotation.
It is designed for the CCTV chimney inspection.
| Camera |
| 1.Camera size | Φ70mm*140mm |
| Rotatable: | horizontal 360°, vertical 180° |
| 2.Camera Housing material | aluminum alloy |
| 3.Camera lens material | sapphire glass |
| 4.Sensor size | 1/4 inch |
| 5.Pixels | PAL:720*576 NTSC:720*480 |
| 6.View range | 120 ° |
| 7.Illumination | 18pcs bright light LED With adjustable brightness |
| 8.Camera work current | 100MA |
| 9.Camera power supply | DC 12V |
| 10.Operating Temperature | -10°C to +50°C |
| Monitor |
| 1.Monitor size | 7inchTFT-LCD color monitor |
| 2. Pixels | 1440*234 |
| 3. Monitor power supply | DC 12V |
| 4.OSD language | English |
| 5.Up, down left, right adjustable |
|
| 6. Model | 16:9 & 4:3 model |
| 7.Shock absorber hinges also acts as sun visor |
| 8.Waterproof connector |
|
| 9.Operating Temperature | -10°C to +50°C |
| DVR |
| 1.DVR power supply | 12V |
| 2.DVR work current | 200MA |
| 3.Storage medium | SD card (32G) |
| 4.Digital clock and digital calendar |
| 5.Battery level display |
|
| 6. Pixels | 720*567(D1) |
| 9.Picture sanp and movie record |
|
| 10.Movie format | AVI |
| 11.Microphone Audio record |
|
| 12.Stereo earphone output |
|
| Cable Wheel |
| 1.Cable size | 430X330(W)X175(H)mm |
| 2.Wire material | Soft cable |
| 3.Fiberglass length | 20M(standard), as your requirement |
| 4.Fiberglass diameter | Φ6.5mm |
| 5.Fiberglass color: | Black |
| Battery |
| 1.Battery | 12V 4000MAH rechargeable li -ion battery(18650 |
| 2.Used time | 7 hours |
| Charger |
| 1.Input | AC100-240V~50/60Hz |
| 2.Out put | DC 12V/1000MA |
| 3.DC plug diameter | 2.1M |
| Skids Size |
| SKIDS1:φ300MM |
|
| As your requirement |
|
| ABS Carry Case |
| Case Size | 520*435*200MM |
| Case Material | Engineering Plastic |
| Empty Case weight | 5.9KG |
| Case Color | Orange/Green/Black |
Shenzhen Wopson Electronics Co., Ltd. Deals in all kinds of electronics and specializes in security and monitoring systems. Wopson has a production base in Shenzhen.
Our main products include CCTVs, special monitor systems, pipe inspection systems and DVRs. All of our products conform to CE, GS, BS, UL, FCC, FDA and RoHS certificates, and are exported to Europe, North America, Asia-Pacific Region, the Middle East, South America, etc. By providing high quality products and services for all customers, Wopson has already established good relationships with many leading companies in mentioned regions and received approval and praise from them.
We will try our best to establish good relationships with new customers. All kinds of OEM / ODM orders are warmly welcomed.
