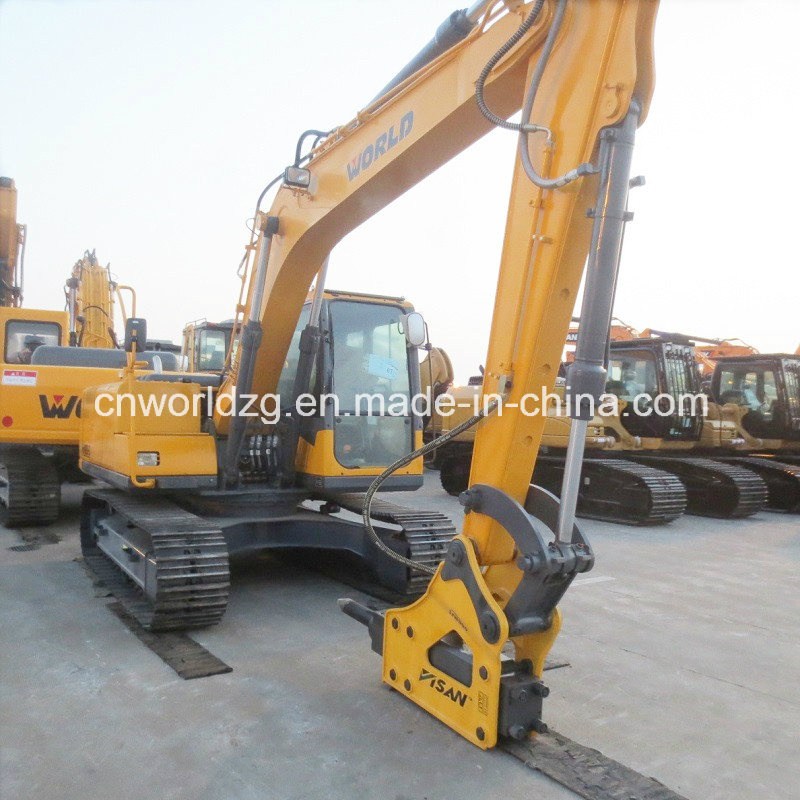

21ton Excavator with Beaker, Powerful Engine

Name: 21ton Excavator with Beaker, Powerful Engine
Brand: china-manufacturer-directory.com
SKU: 776055825
Availability: InStock
Rating: 5 (139 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 70000-80000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	W2215
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Excavator:	Hydraulic Excavator
Engine Brand:	Isuzu
Hydaulic Pump:	Kawasaki
Main Valve:	Parker
Engine Power:	73kw
Cabin:	Air Conditioned
Type:	Crawler Excavator
Size:	Medium-Sized
Certification:	CE
Condition:	New

Product Description

Excavator

W2150 is a 15ton middle size excavator with 0.53 cubic meters bucket. The excavator adopts the original ISUZU BB-4BG1TRP engine which can supply 72.7kw power at the rated speed of 2200rpm. Automatic idle speed prevents unnecessary fuel consumption. The well known Kawasaki brand hydraulic pump supplies larger displacement to ensure the excavator stronger power and higher efficiency. Parker brand valve, Doosan brand travel motor and Sungbo brand swing motor match the pump perfectly. It is really a economic machine with high quality. It was widely used in urban construction and building.

Specifications

Engine System
Brand & Origin	ISUZU(Japan)
Model	BB-4BG1TRP
Rated Power	72.7/2200 kw/rpm
Max. Torque	337.6/1600 Nm/rpm
Idling Speed	1000rpm
Engine Displacement	4.329 L
Cylinder No./-BorexStroke	4-105mmx125mm
Engine Oil Capacity	13.2L
Fuel Tank Capacity	240L
Fuel Consumption Rate	240 g/kw.h or less
Working Specifications
Operating weight	13600(Kg)
Bucket capacity	0.53(m3)
Max. breakout force
(1)Bucket digging force	91.8(KN)
(2)Arm digging force	65.3(KN)
Max. digging height	8640(mm)
Max. dumping clearance	6139(mm)
Max. digging depth	5532(mm)
Max. vertical wall digging depth	5102(mm)
Max. digging reach	8330(mm)
Min. front swing radius	2500(mm)
Max. pulling force	113(kN)
Max.travel speed(double modes)	3.1/5.3(km/h)
Max. grade ability	70%
Overall dimensions
Length(with bucket on ground)	8330(mm)
Width	2490(mm)
Bucket width	854(mm)
Ground length (in transportation)	7718(mm)
Height(To the top of the boom)	2800(mm)
Height(To the top of the cab)	2705(mm)
Counter weight ground clearance	885(mm)
Track gauge	1990(mm)
Tail swing radius	2380(mm)
Min. ground clearance	392(mm)
Rotating platform width	2490(mm)
Counter weight height	930(mm)
Crawler teeth thickness	25(mm)
Reach from swing center to tail	2380(mm)
Crawler ground length	2840(mm)
Standard arm length	3132(mm)
overall length of crawler	7525(mm)

World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.

We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.

Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.

Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.

Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
