Shanghai YingXin World Machinery Co., Ltd. >> Wd165y Tractor Bulldozer Compare to D6 Dozer

Wd165y Tractor Bulldozer Compare to D6 Dozer

Name: Wd165y Tractor Bulldozer Compare to D6 Dozer
Brand: china-manufacturer-directory.com
SKU: 677859175
Availability: InStock
Rating: 4.3 (150 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 60000-70000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WD165Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tractor Bulldozer Compare To D6 Dozer:	165HP
Machine Type:	Crawler Bulldozer
Applications:	Earthmoving Machine, Construction
Operation Weight:	16800kg
Engine:	C6121
Track Width:	510mm
Track Rollers Numbers:	4+2
Cabin:	Air Conditioned
Steering Clutch:	Wet Type
Warranty:	One Year
Walking Mode:	Crawler
Load And Unload Method:	Front Discharge
Certification:	ISO9001: 2000
Condition:	New
Type:	Bulldozer

Product Description

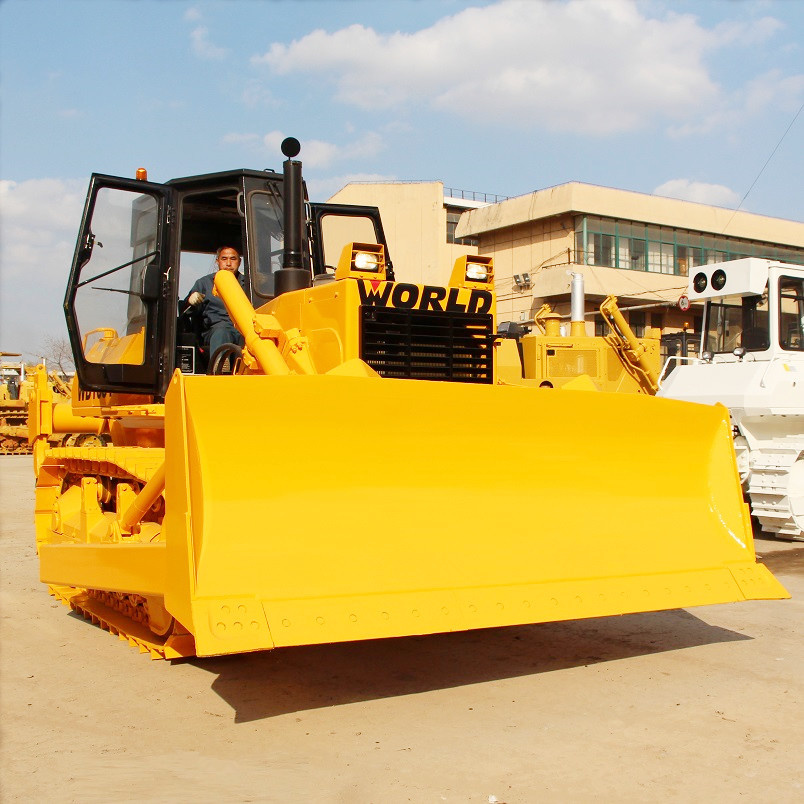

WD165Y tractor dozer with C6121 engine

WD165Y bulldozer is equipped with CAT licensed C6121 engine, which adopts semi-rigid suspended, power shift, hydraulically controlled and swing type of sprayed beam. It is applicable for road construction, water and electricity engineering farmland leveling, port building, mining and other engineering conditions. AlsoWD165Y can be fitted with winch system and be used in lumbering.

Specifications:

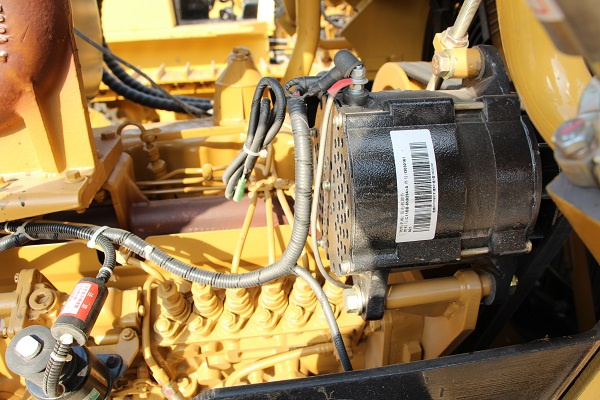

Engine
Model	Shangchai C6121ZG57
Type	Straight vertical, 4 stroke, water cooling, direct injection type
Flywheel power	122 kw
Rated speed	1850 rpm
No. of cylinder-bore x stroke	6-121x152 mm
Starting method	Electric starting, 24V, 7.5kw
Battery	24V(12Vx2)-195AH
Air cleaner	Dry type, precleaned cyclone air cleaner
Min fuel consumption ratio	208 g/kw.h
Transmission system
Torque converter	3 element, single stage, single phase
Transmission	Hydraulic shift, planetary gear, multiple disc clutch, forced lubrication by gear pump
Bevel gear	Helical bevel gear, splash lubricated
Steering clutch	Wet type, multiple disc, spring loaded, hand-operated with booster and hydraulic released
Steering brake	Wet band brake, operated with hydraulic booster
Final drive	Spur gear, double reduction, splash lubricated
Working hydraulic system
Working pressure	14 Mpa
Rated flow	243 L/min (2000rpm)
Pump	Double gear pump
Control valve	Hand-operated, plunger, servo controlling
Cylinder bore x rod x stroke	110x65x1026 mm

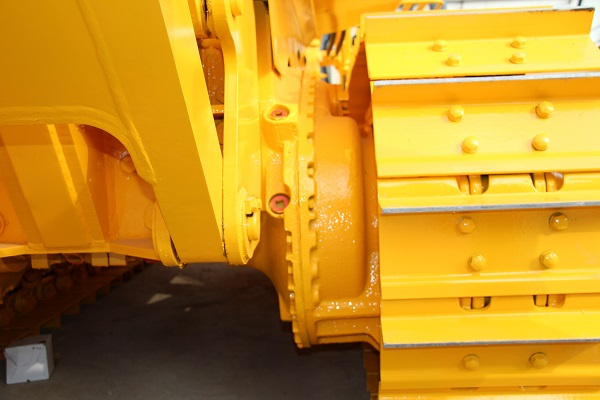

Track
Type	Sealed and lubricated single grouser or sealed single grouser
Track pitch	203.2 mm
Track width	560(510) mm
No. of track shoes each side	37
Length of track on ground	2430 mm
Ground clearance	400 mm
Track gauge	1880 mm
Travel speed
Forward speed	3.8/6.6/10.6 km/h
Reverse speed	4.9/8.5/13.6km/h
Under carriage
Spocket	Segmented
No. of track rollers each side	6 (4 single and 2 double)
Track tension	Hydraulic-adjusted

World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.

We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.

Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.

Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.

Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
