Shanghai YingXin World Machinery Co., Ltd. >> Mining Machinery, D8 Bulldozer Made in China

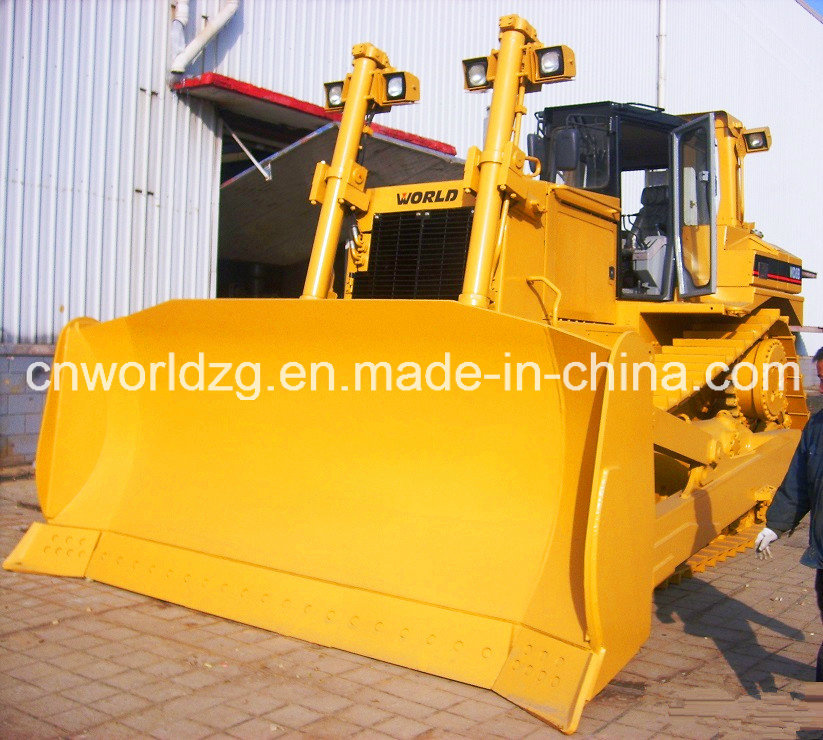

Mining Machinery, D8 Bulldozer Made in China

Name: Mining Machinery, D8 Bulldozer Made in China
Brand: china-manufacturer-directory.com
SKU: 775890875
Availability: InStock
Rating: 4.4 (145 reviews)

Supplier:	Shanghai YingXin World Machinery Co., Ltd.
Price:	US $ 150000-180000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WD8B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
D8 Bulldozer:	Tractor Dozer
Bulldozer Weight:	35900kg
Bulldozer Blade Capacity:	10m3
Engine Brand:	Cummins
Track Width:	560mm
Walking Mode:	Crawler
Load And Unload Method:	Front Discharge
Certification:	ISO9001: 2000
Condition:	New
Type:	Bulldozer

Product Description

dozer for sale

WD8B bulldozer is manufactured base on the technology of CAT . Its layout is well designed ,its appearance is nice and modern ,it has a high working performance and is reliable in safety. The machine has used in civil industry widely including large mine ground, port, electricity, road building.

Specifications:

Engine
Model	Cummins NT855-C360S10
Type	Straight vertical, 4 stroke, water cooling, PT pump injection, turbocharged
Flywheel power	235 kw
Rated speed	2100 rpm
Air cleaner	Dry horizontal type with precleaner
Min fuel consumption ratio	235 g/kw.h
Transmission system
Torque converter	Power seperating hydraulic-mechanic type
Transmission	Hydraulic shift, planetary gear, multiple disc clutch, forced lubrication by gear pump, 3 forward and 3 reverse speeds
Steering clutch	Wet,Hydraulic pressed,non-constant engated
Steering brake	Wet,Hydraulic pressed by spring,seperated hydraulic, constant meshed type
Final drive	Two-stage planetary reduction gear mechanism, splash lubrication
Working hydraulic system
Working pressure	22.5 Mpa
Rated flow	220L/min (2100rpm)
Pump	High pressure gear pump
Track
Type	Delta type,Sprocket is elevated
Track pitch	216 mm
Track width	560 mm
Length of track on ground	3280 mm
Ground clearance	556 mm
Track gauge	2083mm
Travel speed
Forward speed	3.5/6.2/10.8 km/h
Reverse speed	4.7/8.1/13.9km/h
Under carriage
Spocket	Segmented
No. of track rollers each side	8
Track tension	Hydraulic-adjusted

World Group was established in 1988. The main products include wheel loaders, hydraulic excavators, power presses, wheel tractors, combine harvesters, lawn mowers and crankshafts for diesel engines.

We can supply 3 ton and 5 ton wheel loaders, 1.8 ton, 6 ton, 8.5 ton, 15 ton, 24 ton, 33 ton, 36 ton and 42 ton excavators, from 25 ton to 500 ton C-frame and H frame power presses, 40-120HP tractors, 18" to 60" lawn mowers, wheel and crawler combine harvesters for wheat and rice, etc.

Great manufacturing ability and matured technology are the major advantages of World Group. High reliability and durability are the ever lasting endeavor of World Group.

Shanghai Yingxin World Machinery Co., Ltd is a subsidiary company of World Group, which is appointed to be fully in charge of the overseas business of World brand products.

Now we are looking for dealers and distributors to promote our products in worldwide markets. If you are interested, please visit for more information about us.
