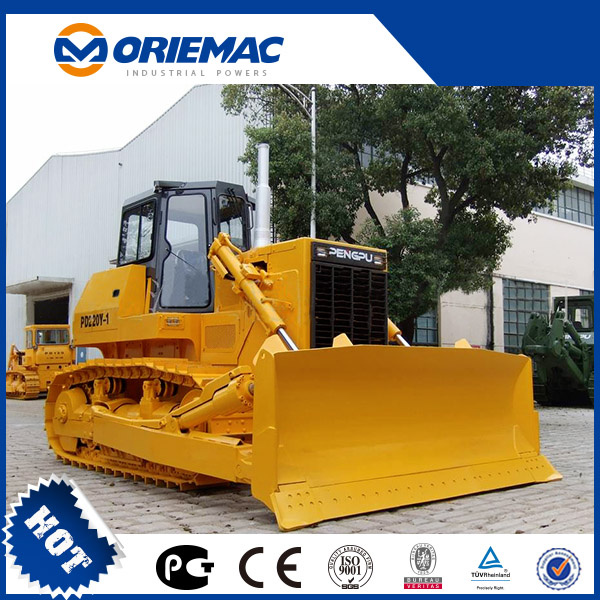

220HP Pengpu High Efficiency Bulldozer Pd220y-1 with Lower Price

220HP Pengpu High Efficiency Bulldozer Pd220y-1 with Lower Price
Supplier: Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Price: US $ 40000/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: PD220Y-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Weight: 35900kg
Dimension(Long * Breadth * High): 6880 X 4130 X 3640mm
Engine: Dongfeng 6135k-2A
Horse Power: 220HP
Rated Speed, R/Min: 1800

Product Description

220hp Pengpu High Efficiency Bulldozer PD220Y-1 with Lower Price

1. Engine: ChongqingCummins
2. Rated horsepower/rpm: 88.2kw/ 1500r/min
3.220Hp
4. Machine Weight: 35900kg
5. Dimension(Long * Breadth * High): 6880 x 4130 x 3640mm
ngine
ModelCummins NT855-C280
TypeFour-stroke, vertical, turbocharged
Flywheel power, kW162
Rated speed, r/min1800
Number of cylinders - bore x stroke, mm6-ø139.7 x 152.4
Starting methodStarting motor 24V,  11kW
Battery24V (12V x 2), 195 AH
Air cleanerDry horizontal type with precleaner
Transmission system
Torque converter3-element, single-stage, single-phase
TransmissionPlanetary gear, hydraulic actuated,  multiple-disc clutch, forced lubrication by gear pump, 3 forward and 3 reverse speeds
Bevel gearSpiral bevel gear, splash lubricated
Steering clutchWet, multiple-disc clutch, spring loaded, hydraulically released
Steering brakeWet, band brake, operated with hydraulic booster and valve inner linkage
Final driveSpur gear, double reduction, splash lubricated
Travel speed, km/h
Forward:

? 1st3.6
? 2nd6.5
? 3rd11.2
Reverse:

? 1st4.3
? 2nd7.7
? 3rd13.2
Under carriage
SprocketSegmented
Track tensionHydraulic-adjusted
Number of track shoes, each side6 (4 single, 2 double)
* Floating seals are used in all track rollers, carrier rollers, sprocket and front idlers
Track
TypeSealed single grouse
Track pitch, mm216
Track width, mm560
Number of track shoes, each side38
Lenghth of track on ground, mm2730
Ground clearance, mm405
Track gauge, mm2000
Ground pressure, MPa≤0.082
Hydraulic system of work equipment
Working pressure, MPa13.7
Rated flow, L/min257
PumpCBT3160 gear pump
Control valveHand-operated plunger, servo controlling
Valve positionRaise, hold, lower, float
Cylinder, Bore x Rod x Stroke, mmø120 x ø70 x 1054
Work equipment
Blade typeSemi-U blade
Dimensions, Length x Width x Height, mm6880 x 4130 x 3640
Weight, kg35900
Blade dimensions, Width x Height, mm4130 x 1590
Max. lift above ground, mm1560
Max. drop below ground, mm560
Pitch adjustment, °55±2
