Product Specifications
| Prod Model: |
YHS301A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current Measurement: |
Range: 0-400ma DC/ 0-400ma AC |
| Voltage Measurement: |
1000vdc /0-700 Vac |
| Diode Measurement: |
2.4 V Shows Diode Voltage Drop |
| Temperature Measurement: |
K-Type Thermocouple (Optional). |
Product Description

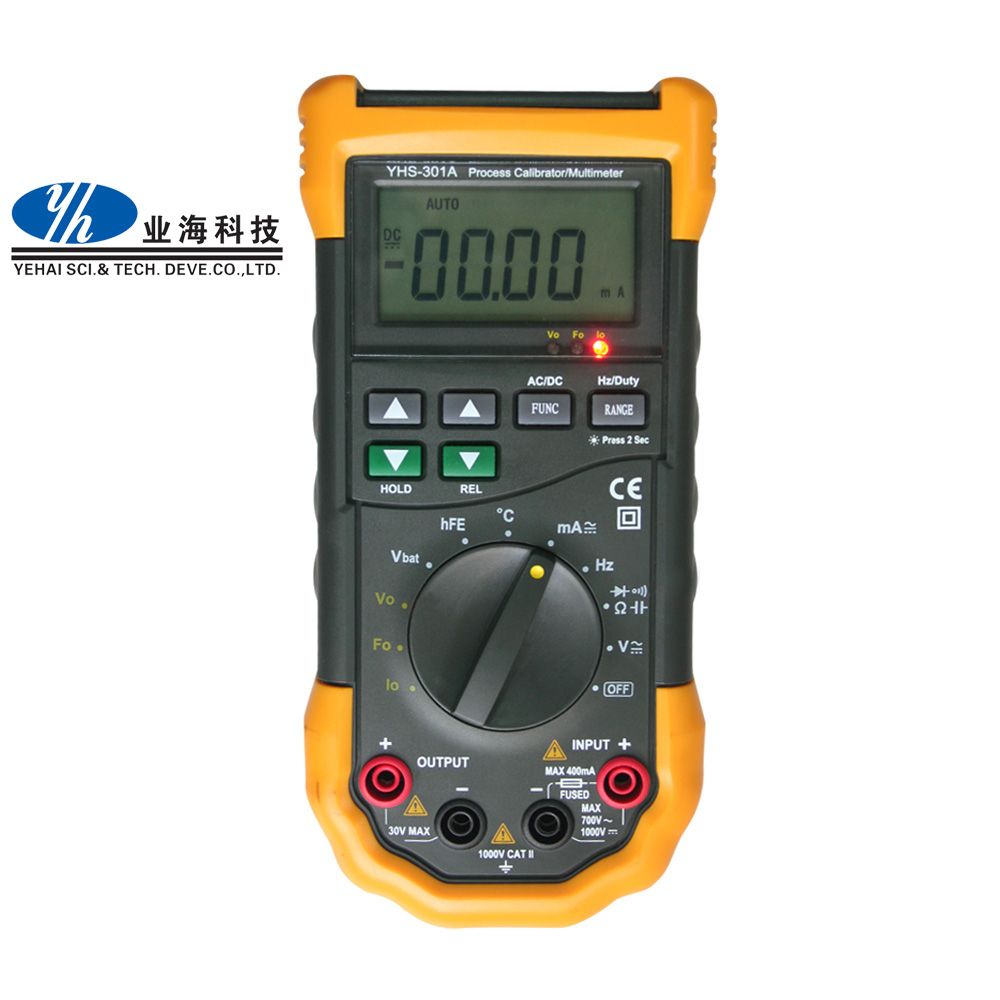

Process Meter YHS301A for field metermen, computer distributed control system maintainer, meter mounter, and can be used as a multimeter by the meterman.
YHS301A is a portable and specialized process verification instrument, which serves as a digital verification meter that has both digital multimeter and signal source function, and can measure and output signal simultaneously. Its large liquid crystal digital display can show the measured signal value and output signal value, and it is equipped with backlight which makes the user easier to read the value. It uses large-capacity rechargeable battery pack and is featured with low voltage indication. Charging and operating for this instrument can be conducted simultaneously (with a charger). Signal output and measurement function of the instrument is mainly designed for on-site verification and service of an instrument in industrial automation field. This instrument is also featured with multimeter function, which makes it an ideal option for field metermen, computer distributed control system maintainer, meter mounter, and can be used as a multimeter by the meterman.
Precision 1000V, 400 mA digital multimeter
1. Measure AC and DC volts, AC and DC current, resistance, continuity, frequency and temperature and break-and-make, diode and triode test.
2. 0.1% DC voltage accuracy
3. 0.1% DC current accuracy
4. True RMS AC voltage measurement to 400Hz
5. Frequency measurement to 200KHz
6. Diode test and continuity beeper
7. DC current source/loop calibrator
8. 20 mA current source/simulator
9. Simultaneous mA
|
Current Measurement |
Range: |
0-400mA DC |
0-400mA AC |
|
Resolution: |
0.1 mA |
0.1 mA |
|
Accuracy: |
0.1% Rdg + 5LSD |
1% Rdg + 5LSD |
|
Voltage measurement |
Range: |
1000VDC |
0-700 VAC |
|
Resolution: |
1.0 V |
1.0 V |
|
Accuracy: |
0.1% Rdg+5LSD |
0.8% Rdg + 5LSD |
|
Frequency measurement |
20Hz to 50 kHz, 0.05% + 5LSD |
|
Resistance measurement |
to 4 MΩ , 0.3% Rdg + 5 LSD; 4 MΩ to 40 MΩ 0.5% + 50 LSD |
|
Capacitance measurement |
to 100 F, 2.0 % Rdg + 10LSD |
|
Temperature measurement |
K-type Thermocouple (optional). |
|
Diode measurement |
2.4 V shows diode voltage drop |
|
|
|
Current Sourcing |
Range: |
0-22 mA |
|
Accuracy |
0.1% Rdg + 5LSD |
|
Drive Capability: |
1000 Ω @ 20 mA |
|
DC voltage signal output |
Range: |
10VDC |
100mVDC |
|
Resolution: |
10mV |
0.1mV |
|
Accuracy: |
0.1% Rdg+5LSD |
0.1% Rdg+5LSD |
|
Frequency signal output |
Range: |
100Hz |
1KHz |
10KHz |
|
Resolution: |
0.01Hz |
0.1Hz |
1Hz |
|
Accuracy: |
0.1Hz |
0.5Hz |
5Hz |
|
24DC voltage Sourcing |
Accuracy: 2%; Drive Capability: 30 mA |
|
|
|
|
|
|
|
|
|
Mechanical & General Specifications
|
Size |
55 x 92 x 195 mm |
|
Weight |
600 g |
|
Batteries |
Ni – MH rechargeable batteries |
|
Warranty |
2 years |
|
Battery Life |
50 hours typical (measurement), 12 hours typical (sourcing 12 mA) |
|
Shock & Vibration |
Random, 2g, 5-500 Hz |
|
1 meter drop test |
|
Auto step, auto ramp |
Yes |
