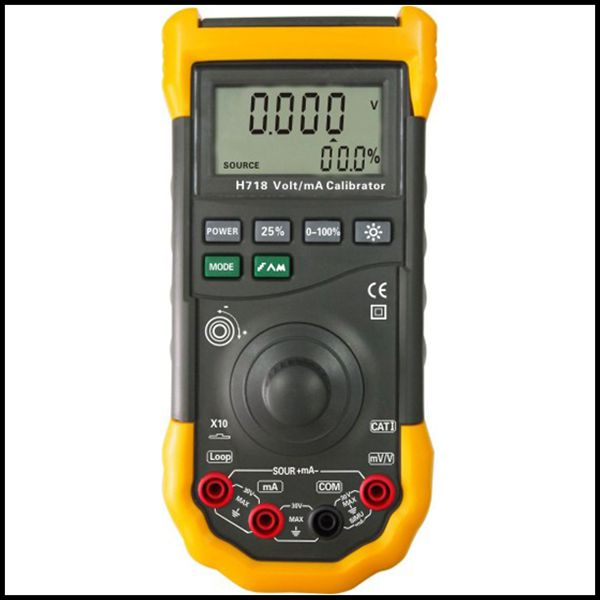

H718 Voltage/Ma Calibrators Similiar to Fluke 715 Voltage/Current Calibrators

Product Specifications

Prod Model:	H718
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current Measurement:	Range 0 to 24 Ma
Current Source Range:	0 to 20mA or 4 to 20mA
Current Simulate Range:	0 to 20mA or 4 to 20mA
Loop Power:	While Measureing Ma 24V
Voltage Measure:	0 to 10 VDC
Mv DC Measure:	0 to 100mv
Application:	Electronical Instrument
Power:	Electricity

Product Description

2012 new products 24V loop Powr Resolution 0.001mA current Source 0 to 20mA or 4 to 20mA Voltage and mA Calibrators H718

We can provide OEM Service for customers completely

Features

The fast, one-handed tool for loop checks. Just click to calibrate.

This feature-rich solution combines the best features push-button and knob-base loop calibrator and offers:

Large display and simple, quick-click interface for easy one-handed operation.
Simultaneous mA and % readout for quick, easy interpretation of readings.
MA accuracy of 0.025%, superior to other loop calibrators in this price range.
1 µ A resolution for mA source, simulate and measure.
Push button 25% steps for fast, easy linearity checks.
0-100% "span check" for fast confirmation of zero and span.
Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests.
24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
New R&D Features by Yehai

Measures o-10V DC&0-100mV DC with accuracy 0.02%
Output o-10V DC&0-100mV DC with accuracy 0.02%
0 - 20 mA or 4 - 20 mA output range could be set manually
Rechargabel lithiumion battery pack.
Push button 25% steps or fast, easy linerity checks
