Product Specifications
| Prod Model: |
YHS717 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current Measurement: |
Range: 0-400ma DC/ 0-400ma AC |
| Voltage Measurement: |
1000vdc /0-700 Vac |
| Diode Measurement: |
2.4 V Shows Diode Voltage Drop |
Product Description

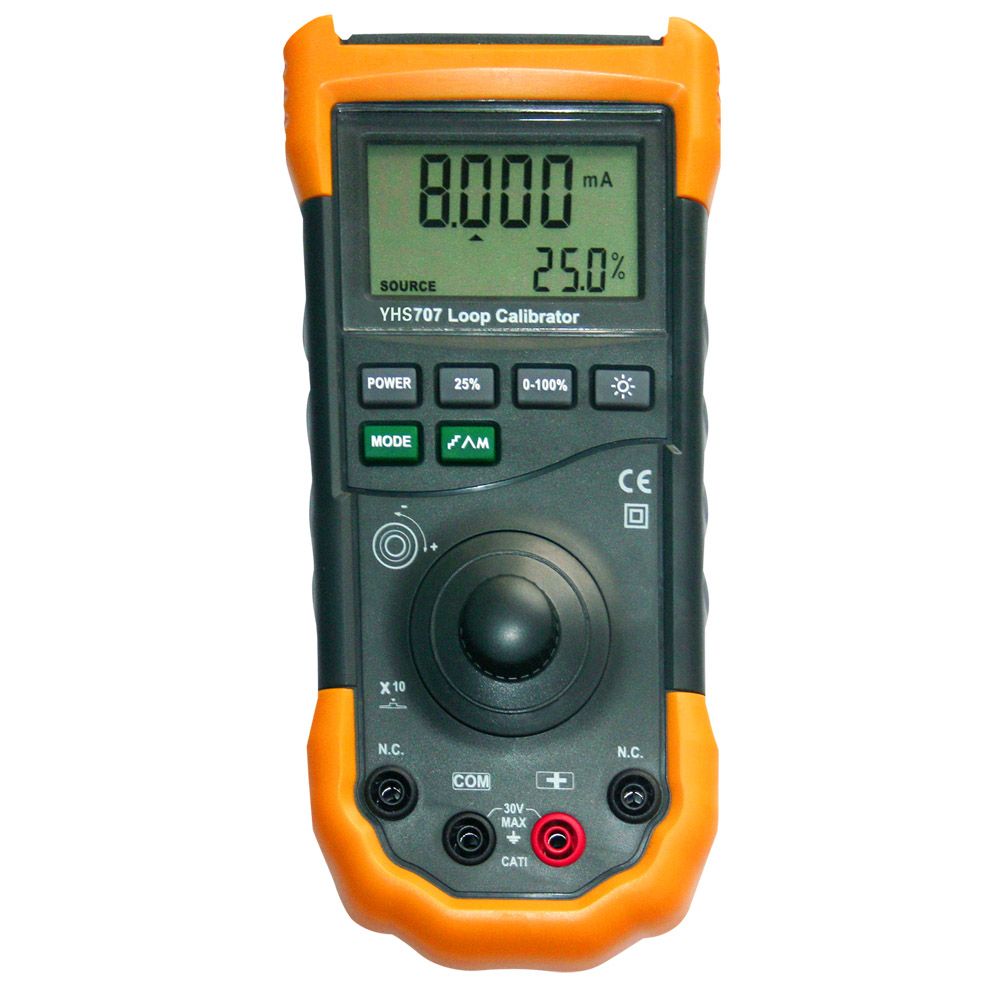

100% Span Check Loop Calibrator With Rechargeable Batteries Equivalent to Fluke 707 Loop Calibrators(YHS717)
Conformity to safety standards: Meet the standard of IEC 61010-1-95 CAT I, 30V; Meet the standard of EN61010-1 EN61326.
***Batteries: A group of large capacity Lithium Battery (7.4V)
General Introduction
- The fast, one-handed tool for loop checks. Just click to calibrate.
- This feature-rich solution combines the best features push-button and knob-base loop calibrator and offers:
*Large display and simple, quick-click interface for easy one-handed operation.
*Simultaneous mA and % readout for quick, easy interpretation of readings.
*mA accuracy of 0.025%, superior to other loop calibrators in this price range.
* 1 µ A resolution for mA source, simulate and measure.
Push button 25% steps for fast, easy linearity checks.
* 0-100% "span check" for fast confirmation of zero and span.
Selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests.
* 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM.
* Measures V DC to 28 V.
* Single 9V battery that is easily changed without braking calibration seal
* 0 - 20 mA or 4 - 20 mA default start up modes.
Innovative output adjustment dial with 1 µ A and 100 resolution.
* HART ™ Mode connects 250 Ω Resistor in series with 24 V loop for compatibility with HART communicators.
General Specifications
- The voltage between any two terminals, or between any terminal and earth ground: Max 30V
- Storage temperature: -40deg-60deg
- Operation temperature: -10deg-55deg
- Operation elevation: Max 2000m in height
- Temperature coefficient: 0.005% range /deg (-10deg-18deg or 28 deg-55deg).
- Relative humidity: 95% up to 30deg, 75% up to 40deg, 45% up to 50deg, 35% up to 55deg.
- Shock & Vibration: Per MIL-T-28800 for a Class 2 Instrument
- Vibration: Random sampling 2 grams, 5-500Hz
- Impact: 1m free drop test
- Size: 195(L)92(W)55(H) mm
- Weight: About 400g, (including the rubber cover)
- Warranty Two years
- Display current and % of span Yes
- Auto step, auto ramp Yes
- Span Check Yes
|
Range: |
0 to 24 mA |
Resolution: |
0.001 mA |
Accuracy: |
0.02% Rdg + 4 LSD |
Current Sourcing |
Range: |
0 to 20 mA or 4 to 20 mA |
Accuracy: |
0.02% Rdg + 4 LSD |
Drive Capability: |
1200 Ω ; 950 Ω at 20 mA in HART mode |
Current Simulation |
Range: |
0 to 20 mA or 4 to 20 mA |
Accuracy: |
0.02% Rdg + 4 LSD |
Ext. loop voltage requirement: |
12-30 V |
Loop Power |
While measuring mA, 24 V |
Voltage measurement |
Range: |
0 to 28 V DC |
Resolution: |
1 mV |
Accuracy: |
0.02% Rdg + 4 LSD |
