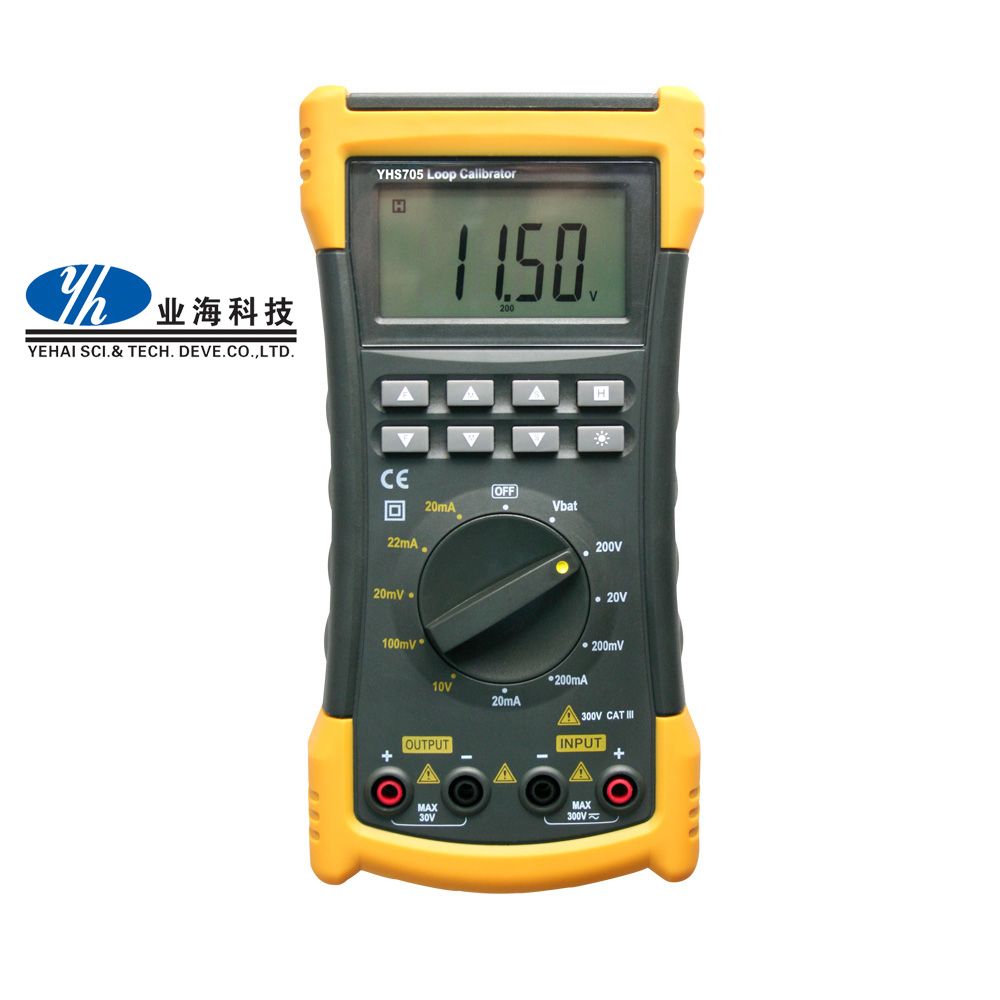

YHS705 Loop Calibrator is a handheld multi-function digital calibration instrument that is featured with high accuracy, resolution and reliability and anti-drop and is integrated with digital display of DC voltage, current signal source and DC voltage, DC current functions. The instrument uses large liquid crystal display with clear reading and is featured with backlight reading hold and auto power-off. The instrument can be fed by DC or AC power source, which delivers more convenience.
Signal output and mA, mV measurement functions of this instrument are mainly for field calibration, service in industrial automation site. It is an ideal tool for field metermen, distributed control system maintainers and instrument installers. It is different from common electrician multimeters and signal sources, which is the multimeter used by metermen.
The overall machine circuit takes dual slope A/D converter as its core, and is featured with signal output and measurement functions. Its technical performance conforms to Automation Instrument Calibration Standard for type Electric II and Electric II, its operation environment complies with related regulations in GB6587.1-86 Environmental tests program for electronic measuring instruments about instrument Group II.
Functions and features of loop calibrator yhs705
4 1/2 LCD display.
Display "1" for Over range, max display value 19999.
24V. DC (30mA. MAX) power output, which can be used as 24V. DC working power supply for two-wire instrument.
0-10V, 0-100mV, 0-20mV, 0-20mA and 0-22mA DC signal source, which can simulate output signals of varieties of model II, III and other instruments in field calbration.
200mV\20V\200V DC voltage signal measuring scale.
20mA, 200mA DC current signal measuring scale.
Battery voltage detection
Backlight used for reading in site with insufficient light.
Power undervoltage indication.
General indicators of Loop Calibrator YHS705
The voltage between the input terminal and the grounding: 300V.
Display mode: Max reading 19999, auto pole indication.
Overload indication: "1" will be displayed on LCD.
Undervoltage indication: " " will be displayed on LCD.
Measurement speed: About 3 times/sec.
Data hold: Available. Backlight function: Available.
Power supply mode: 4XAA batteries.
Operation environment: 0~40deg; 20~80%RH.
Storage temperature: -10~50deg.
Safety standard: Comply with IEC1010_1, 1000V CAT. II.
Accuracy indicators
Accurancy: Reading+figure), 1 year of calibration period
Basic conditions: Environment temperature 18deg-28deg, relative humidity not higher than 80
DC voltage 24V± 10%
|
Range |
Resolution |
Accuracy |
|
20mA |
1mA |
± (0.05% reading +4 figures) |
|
200mA |
10mA |
± (0.05% reading +7 figures) |
Overload protection: self-recovering fuse (F400mA/250V)
Max input current: 200mA DC or AC RMS |
