Product Specifications
| Prod Model: |
JCUT-6060C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
CNC |
| Current: |
AC |
| Usage: |
Stone |
Product Description

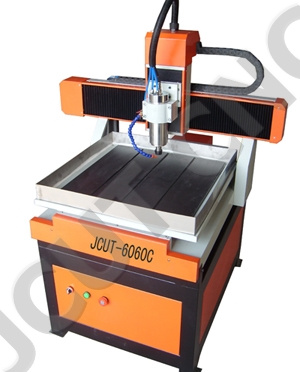

23.6" x 23.6" Jade CNC Engraaving machine----( JCUT-6060C)
Specifications:
1. CNC advertising models for the table, working reposeful, accurate models than models with fixed gantry high accuracy.
2. X axis adopts imported popular dust proof structure to make the machine work for al ong time.
3. The models are suitable for architectural model, schools, enterprise, and governments.
4. Adopt advanced CNC system (NCstudio or DSP control system), This system have break point memory mode and special saving made of different points so that can make sure continuous working after electronic drop or other postpone situation. This function can guarantee the processing precision of long time operation. Configured with practical and easily -earned software, can conveniently check the moving path of tool, and adjust the processing depth of Z axis and the speed of motor
Applications: Advertisement engraving, advertisement cutting, stone processing, Cu and AL molding, mold manufacturing, wood processing, craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing, as well as stamp cutting.
Key point:
Please kindly tell us your engraving or cutting materials, and materials' size.
Then we can quickly check and recommend to you the right machine with right working area.
Parts for free:
Software in CD, Controlling Card (PCI card), Water Tank, Water Pump, Engraving Tools, Data Wire, Power Line, Brush, Spanner and Clamp.
Freight:
We can send this machine to your port or door address by sea. Do as you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with post code.
Warranty:
One year for machine
We supply online service 24 hours a day MSN, Skype, Yahoo, Gmail and so on.
You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
|
JCUT MODEL |
JCUT-6060C CNC Router |
|
Working Area (X*Y*Z) |
600X600X80mm(23.6X23.6X3.1 inch) |
|
Processing accuracy |
0.01mm |
|
Repositioning accuracy |
0.03mm |
|
Spindle |
1.5KW variable speed, water-cooled |
|
Spindle rotating speed |
0-24000rpm/min |
|
Max Moving Speed |
6000mm/min |
|
Working speed |
0-5000mm/min |
|
Driving mode |
Ball screw |
|
Voltage |
AC220V/50Hz |
|
Max. Power consumption |
1.9KW |
|
Feeding Height |
80mm |
|
Drive motor |
Stepper |
|
Command |
G. code, mmg, plt, uoo, HPGL |
|
Compatible Software |
Type3, Artcut, ArtCAM, masterCAM software |
|
Certificate |
CE, FDA |
|
Pack dimensions |
1250mm X 1250mm X 1600mm wooden trunk |
|
Net weight |
165KG |
Jinan JCUT CNC Equipent Co., Ltd., lies in Jinan city, is a new technology enterprise which is specialized in developing and manufacturing Mechanical CNC engraving machine, CNC Laser machine and CNC Woodworking machine. We supply global market with high quality and reasonal price. We have the first class reaserch and development center and professional technician. With many years hardworking and perfect management, we have been improving SuperStar products.
We have three main series machines and 20 models to meet different requirments, such as CNC engraving and cutting router, 3D woodworking routers, laser engraving machine etc. With excellent designs, good characteristics, we enjoy high reputation in the world. At the same time, our machines are exported to USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on. On the basis of absorbing the international advanced CNC technology, our company has developed laser engraving machine, laser cutting machine and marking machine, which are mainly based on the CO2 laser.
They are widely used in advertising, engraving, shoes samples, garments, rubber molding, and arts and crafts fields. Our principle: Good quality is the life of our company; New technology is the basis of our development; Innovation is the key of our progress and the good after-sale service gains the wide market for us. We sincerely look forward to establishing friendly business relations with the customers and hope to develop together.
