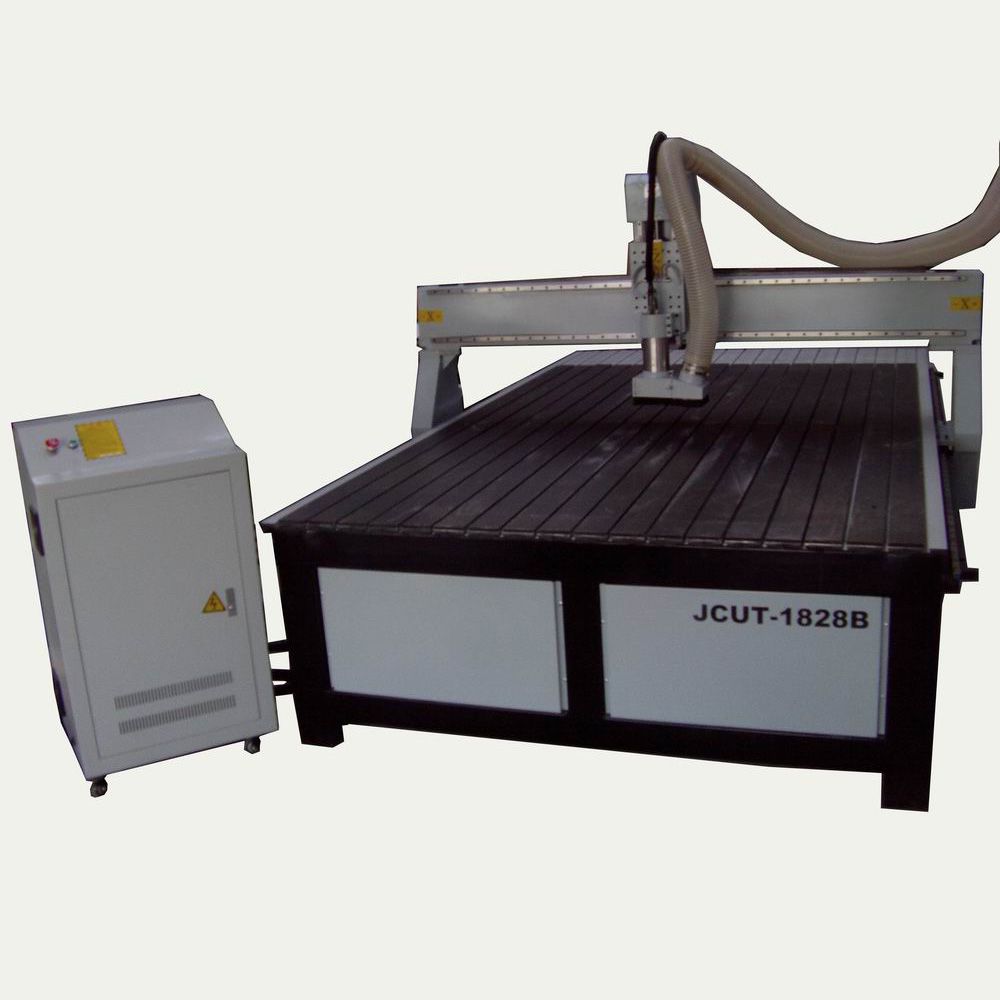

CNC woodworking machine router kit JCUT-1828B
1) Machine body: Whole cast iron
2) Guideway: XYZ-axis use linear guideway
3) Driving mode: XY-Rack, Z-ball screw
4) Work dimensions: 1800mm x 2800mm x 150mm
5) Body dimensions: 2250mm x 3300mm x 1650mm
6) Z-axis working area: 150mm
7) Max. Feeding height: 300mm
8) Cut thickness of material: ≤ 40mm
9) Max. Speed: 35000mm/min
10) Working speed: 0 - 18000mm/min
11) Mechanical precision: 0.01mm
12) Software: Type 3 software, Artcut software, Artcam software
13) Max. Power consumption: 6KW
14) Power source: 3 x 380 AC 50 Hz
15) Driver type: Servo motor
16) Memory: No
17) Spindle: 3KW water-cooling spindle
18) Spindle speed: 0 - 24000rpm
19 ) Blade diameter: 3.175mm, 4mm, 6mm (or 8mm, 10mm, 12mm, 12.7mm)
20) Control system: NCstudio (Optional interface)
21) Command: G code, u00, mmg, plt
22) Running circumstance temperature: 0 - 45° C
23) Relative humidity: 30% - 75%
24) Pack dimensions: 2250 x 3000 x 2000mm
25) Net weight: 1200kg
26) Gross weight: 1400kg
Applications: Advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment, mold processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.
Key point:
Please kindly tell us your engraving or cutting materials, and materials' size.
Then we can quickly check and recommend to you the right machine with right working area.
Parts for free:
Software in CD, Controlling Card (PCI), Water Tank, Water Pump, Engraving Tools, Data Wire, Power Line, Brush, Spanner and Clamp.
Option accessories:
1. Rotary axis
----For engraving on cylindrical shape materials. Please kindly tell us your cylindrical shape materials' length and diameter. Then we can add right rotary axis to the machine.
2. Water cycling system (water sink on the working table)
----For engraving on stone or metal materials. It is used to down the spindle's high temperature.
3. Vacuum table (contain vacuum pump and vacuum pipes)
----For fixing materials on the working table, especially for bigger working table.
After added vacuum table, voltage will be 3 phase/380V.
4. Dust collector (contain dust collector pump and dust collector pipes)
----For sucking away the dusts, such as wood dusks and so on.
Freight:
We can send this machine to your port or door address by sea or by air. Do as you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with post code.
Warranty:
One year for machine
We supply online service 24 hours a day MSN, Skype, Yahoo, Gmail and so on.
You can also contact us by email, and we will reply in 24 hours, or by phone if urgently.
