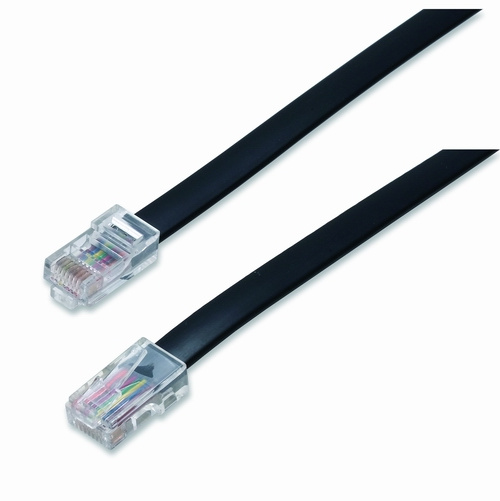

24AWG/26AWG Cat5e UTP Patch Cord Communication Cable

Name: 24AWG/26AWG Cat5e UTP Patch Cord Communication Cable
Brand: china-manufacturer-directory.com
SKU: 703714925
Availability: InStock
Rating: 4.5 (84 reviews)

Supplier:	Shenzhen Xinxinda Communication Technology Co., Ltd.
Price:	US $ 0.58-0.68/Piece
Min Order:	3000/Meter
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	EST-C5EU-OR Flat
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	RoHS PVC Jacket Cat5e Network RJ45 Patch Cord
No. Of Conductor:	8
Insulation:	HDPE
Shielded:	Unshielded Cable
Jacket:	PVC
Test:	Fluke Channel Test
MOQ:	3000PCS
Pair:	4
Interface Type:	RJ45
Application:	LAN Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Type:	Cat 5
Cover Material:	PVC
Certification:	UL
Model:	RJ45
Brand:	Xxd

Product Description

Description
Product name: 24AWG/26AWG Cat5e UTP Patch Cord Communication Cable

Industrial Standards: YD/T1019-2001\(America) ANSI/TIA/EIA-568-B, (Internation) ISO/IEC 11801/71156.

Conductor: Solid&Stranded soft circle twisted copper wire

Insulation: High-density Polythene(HDPE)

Jacket: PolyvinyChloride(PVC) \LSZH\PE

Color code ref. To TIA 568A\TIA568B\TIA568A-T568B\110-RJ45\110-110

We can provide differ lengths, colors and boot types as per your requirements.

Ratting Temperature: 75 degree, OEM is available.

Temperature Range: -20 up to +75c

Conductor Resistance: Max. 9.38 ohm/100m

Resistance Unbalance: Max. 2%

Insulation Resistance: Max. 150 ohm/Km

Mutual Capacitance: Max. 5600pF/100m

Capacitance Unbalance: Max. 330pF/100m

Impedence: 100+/-15

Spark Test: 2000V

Applications: (Cat6 Patch Cords)

ISDN
10BASE-T Ethernet (IEEE802.3)
100BASE-T Ethernet(IEEE802.3)
155MbpsATM \100Vg-Any LAN(IEEE802.12)
TP-PMD(ANSI X3T9.5) \ 16Mbps
Token Ring (IEEE802.5)
1000BASE-T Ethernet (IEEE802.3ab).

If you want to know more products about Network cable patch cord. You can contact me online.
Skype No.: 8615823523283
Mobile No.: +8615823523283

Experienced Maker of Electronic Accessories
As a manufacturer with more than 12 years long history, Shenzhen Xin Xin Da Communication Technology specializes in telecommunication industry, making communication cables, RJ45 patch cord, LAN cables, CAT5E, CAT6, CAT6A Patch cord leads, HDMI cables, USB cables, audio cables, VGA cables, RG59 coaxial cables, and many kinds of network cables. We also offer telephone cables, patch panels, keystone jackets and other communication cable accessories.

Implementing Strict Quality Control Measures
Each product is designed and produced under ISO 9001: 2000-certified operations. Thus, all our products are compliant with RoHS and EIA/TIA-568A standards. We implement strict quality control measures, allowing our products to not only meet internal standards, but also industry standards.

Winning Global Customers' Trust
We have won the trust of global customers through the help of our outstanding R&D team, excellent sales marketing, high-quality production, prompt delivery and quick after-sales services. Moreover, all our products have found extensive applications in many famous brands, such as MODEM. Our products are mainly exported to the US, the UK, Southeast Asia and the Middle East. We ensure the excellent performance, stability, reliability, and reasonable price of our products.

Contact us today to begin sourcing.
