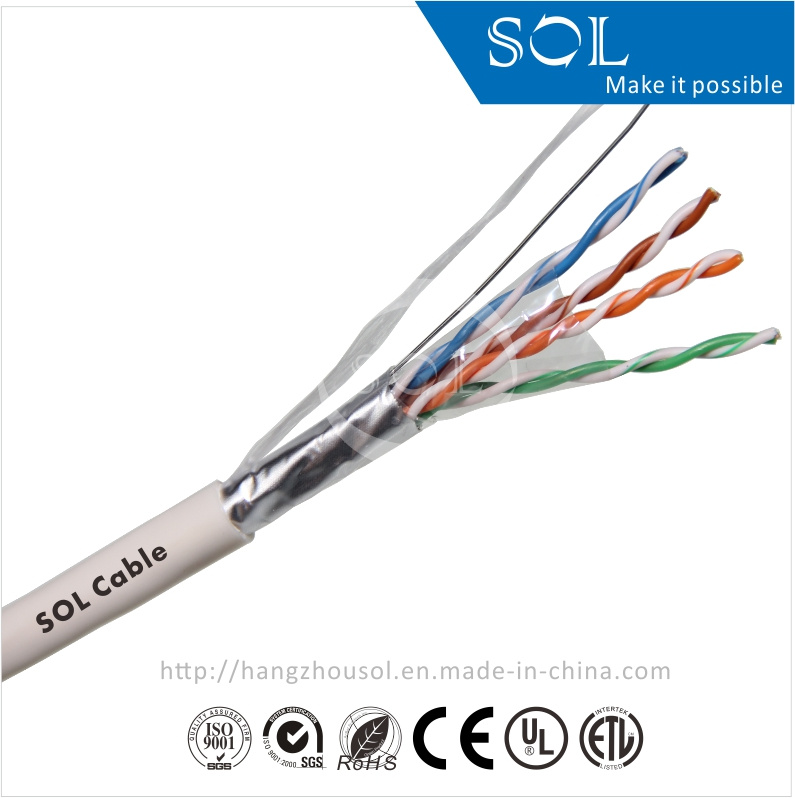

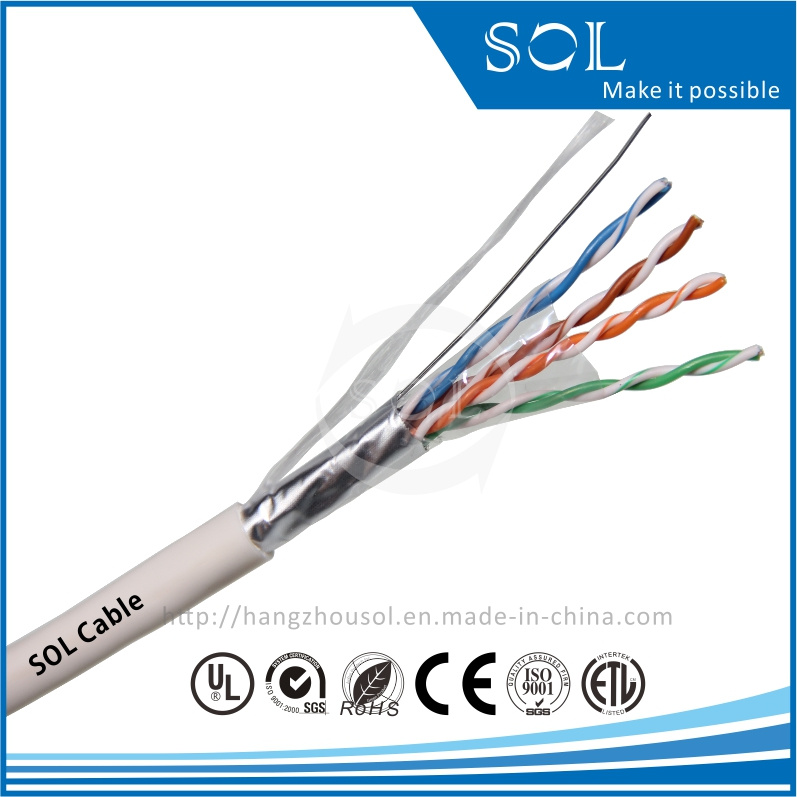

24AWG 4P 8pin FTP Cat5e Computer Cable
Product Specifications
| Prod Model: |
FTP Cat5e |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor: |
Bare Solid Copper |
| Insulation: |
HDPE |
| Shield: |
Al Foil |
| Drain Wire: |
Tc |
| Rip Cord: |
Optional |
| Tape: |
Polyester |
| Jacket: |
PVC or Lszh |
| Application: |
Network |
| Interface Type: |
Flat-Flat |
| Material: |
Copper |
| Pin: |
8Pin |
| Feature: |
Waterproof |
| Shape: |
Round |
| Color: |
White |
Product Description
Lan Cable Series: Shielded Twisted 4Pairs FTP Cat5e (solid)| FTP cat5e | No. | STRUCTURE | MATERIAL |
| 1 | Conductor | Bare solid copper |
| 2 | Insulation | Colourcoded PE |
| 3 | Drain wire | BC/TC |
| 4 | Polyester | Optional |
| 5 | Rip cord | Optional |
| 6 | Shield | PET/AL |
| 7 | Jacket | Lead free PVC or LSZH |
| Description | Flammability grade | CMX, CM, CMG, CMR |
| Rated temperature | 60°C , 75°C, 90°C |
| Reference Standard | UL444, UL1581 |
| Note: Other specification can be made upon customer requirements. |
| ELECTRICAL CHARACTERISTICS |
| Frequency | Impedance | RLdB | Attenuation | Next | Next power | LFXTdB | PSELFEXTdB |
| MHZ | Ohm | dB/l00m | dB | Sum dB |
| 1.0 | 100±15 | 20.0 | 2.0 | 65.3 | 62.3 | 63.8 | 60.8 |
| 4.0 | 100±15 | 23.0 | 4.1 | 56.3 | 53.3 | 51.8 | 48.8 |
| 10.0 | 100±15 | 25.0 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 |
| 16.0 | 100±15 | 25.0 | 8.2 | 47.2 | 44.2 | 39.7 | 36.7 |
| 20.0 | 100±15 | 25.0 | 9.2 | 45.8 | 42.8 | 37.8 | 34.8 |
| 31.25 | 100±15 | 23.6 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 |
| 62.50 | 100±15 | 21.5 | 17.0 | 38.4 | 35.4 | 27.8 | 24.9 |
| 100.0 | 100±15 | 20.1 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 |
Application: used as work-station oution to the FD/IDF and other horizontal cabling, supporting:TP-PMD Audio, Integrated service digital network(ISDN), ATM, 100Base-TX, 100VG-AnyLAN, 1000Base-T(Gigabit Ethernet), Fast Ethernet ETC.
Packing:100m/200m per Coil/roll, 200m/250m per Reel,500ft/1000ft per Rolling Reel, 305m/500m per wooden Drum. Delivery Day: 20days after receiving the T/T payment. Port: Shanghai Port, Ningbo Port.
We specialize in cable & wires 15years!

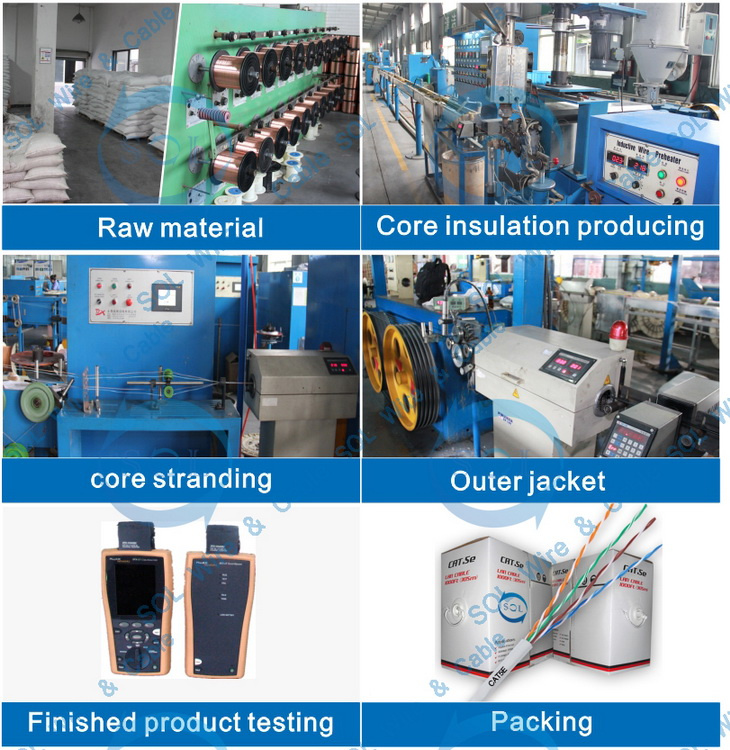

HangZhou SOL Information Technology Co., Ltd. is one of a professional cable manufacturer & trading company, located in HangZhou ZheJiang, the largest cable production base in China. There is the more competitive raw material, excellent technical personnels & the complete industry chain.
The location is closed to HangZhou International airport, and NingBo or Shanghai international port.
At first it was founded in HongKong in 2000 as a international agency procurement super expert office, we enjoys a high reputation in the international cable industry since past 15years. Also we win the honor Outstanding Leader from Alibaba.
We will be glad to stand with you, support you & win our mutual future.
SOL Cable & wires always your best choose!
Our specifications for your kindly reference:
LAN Cable Cat5E UTP/FTP, SFTP, CAT6
Coaxial Cable RG6, RG59, RG11, 500;
With UL, CE & ISO Cert.
Telephone wire, Speaker cable, Electrical wire
Composite cable & accessories
Optical Fiber Cable GYXTY; GYXTA; GYSTY; GYSTS; GYXTY53; ADSS; GYXTC8Y; GYXTC8S;
GYDXTW; DYDSTS; GYSTY53; GYSTA53; GYXTA53; 2-12cores; 24cores...
