Lan Cable Series:

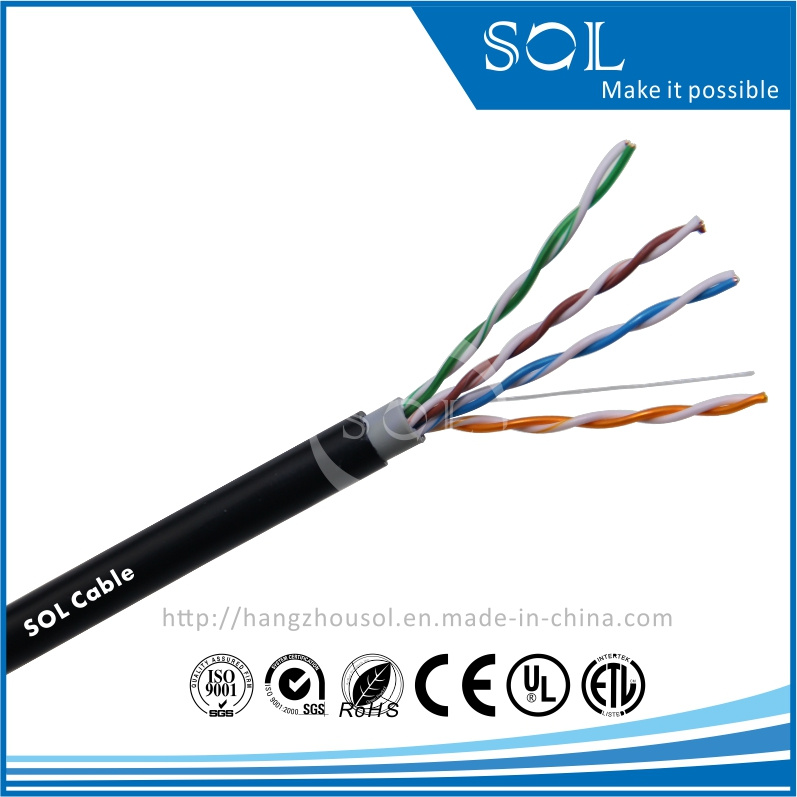

UTP Cat5e (double jacket 4 Pairs)
Application:
used as work-station oution to the FD/IDF and other horizontal cabling,
supporting:
TP-PMD Audio, Integrated service digital network(ISDN),
ATM, 100Base-TX, 100VG-AnyLAN,
1000Base-T(Gigabit Ethernet), Fast Ethernet ETC.
| UTP cat5e | No. | STRUCTURE | MATERIAL |
| 1 | Conductor | Bare solid copper |
| 2 | Insulation | Colourcoded PE |
| 3 | Polyester | Optional |
| 4 | Rip cord | Optional |
| 5 | Shield | PET/AL |
| 6 | Inner Jacket | Lead free PVC or LSZH |
| 7 | outer Jacket | Lead free PVC or LSZH |
| Description | Flammability grade | CMX, CM, CMG, CMR |
| Rated temperature | 60°C , 75°C, 90°C |
| Reference Standard | UL444, UL1581 |
Note: Other specification can be made upon customer requirements.
| Item No. | Construction | Nominal Conductor Dimension mm | Nomial Insulation Diameter mm | No.of Pairs | Nomial Cable OD. Mm | Type oljacket | Remark |
| UTP5e-500 | UTP | 0.5 | 0.89 | 4 | 5.1/5.4 | PVC/PE/LSZH | 100MHz |
| NCUTP5e-510APD | UTP | 0.51 | 1.01 | 4 | 6 | PE | Jelly Filled 100MHz |
| UTP5e-510WBT | UTP | 0.51 | 0.95 | 4 | 6.5 | PE | water blocked Tape 100MHz |
| UTP5e-500DB | UTP | 0.5 | 0.9 | 4 | 6.3 | PVC+PE | 100MHz |
| UTP5e-510#350 | UTP | 0.51 | 0.91 | 4 | 5.3 | PVC/LSZH | 350MHz |
Packing:
100m/200m per Coil/roll,
200m/250m per Reel,
500ft/1000ft per Rolling Reel,
305m/500m per wooden Drum.
Delivery Day: 20days after receiving the T/T payment.
Port: Shanghai Port, Ningbo Port.
