Product Specifications
| Prod Model: |
RYL235-25 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mat: |
HP295 |
| Color: |
Red |
| Item: |
25L Empty Acetylene Cylinders |
| Manufacturing Std: |
ISO3807-2. |
| Material: |
Metal |
Product Description

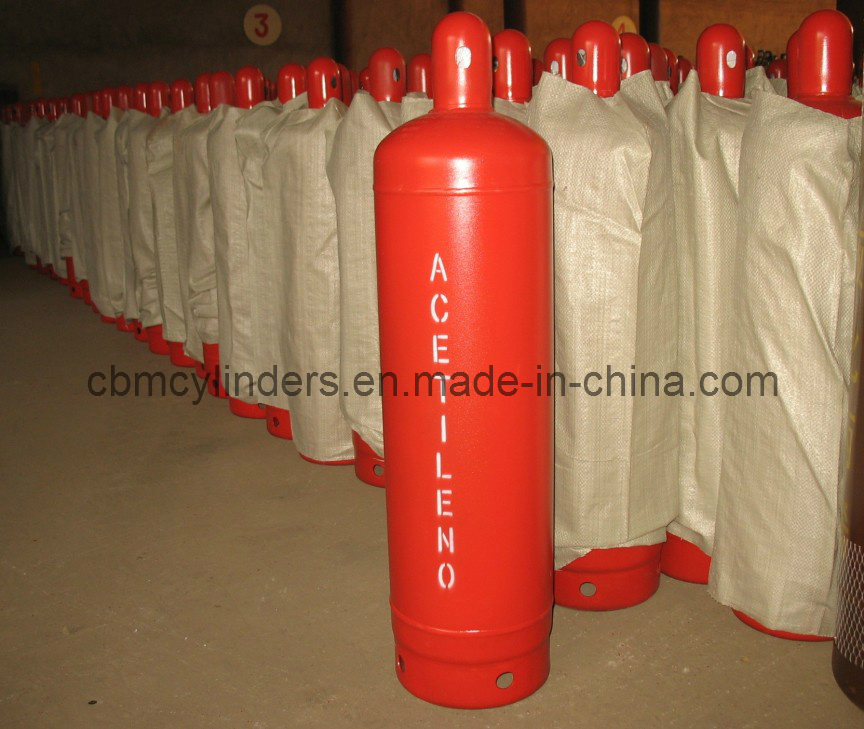

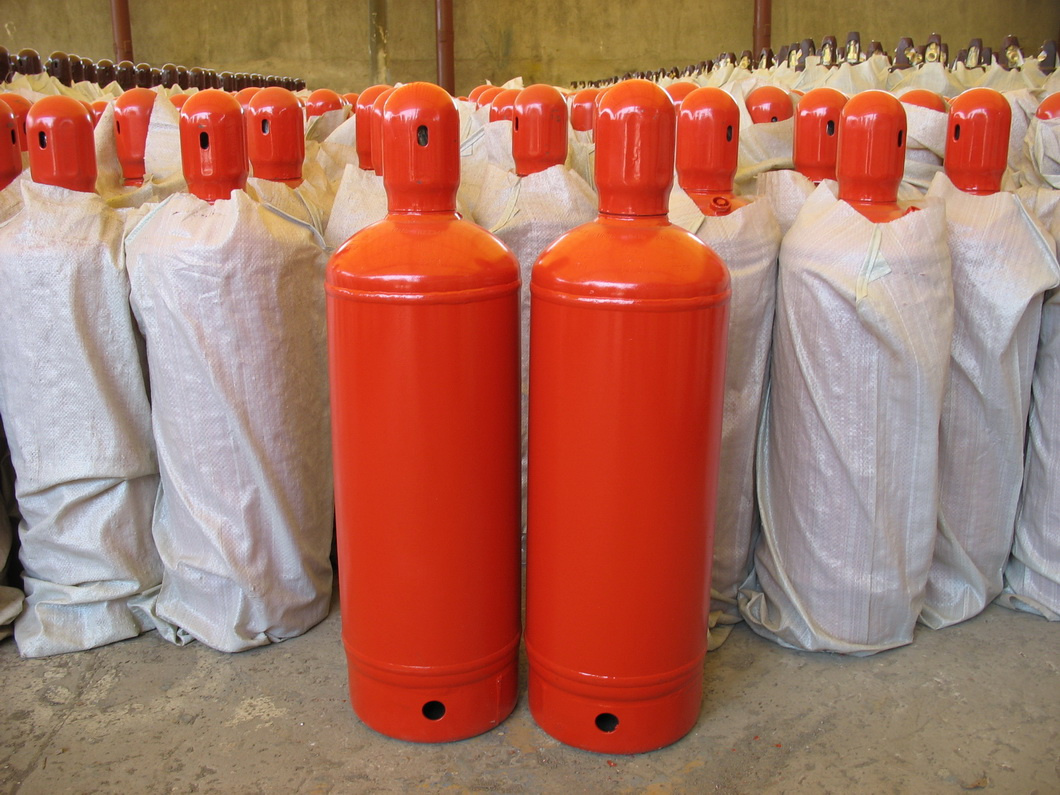

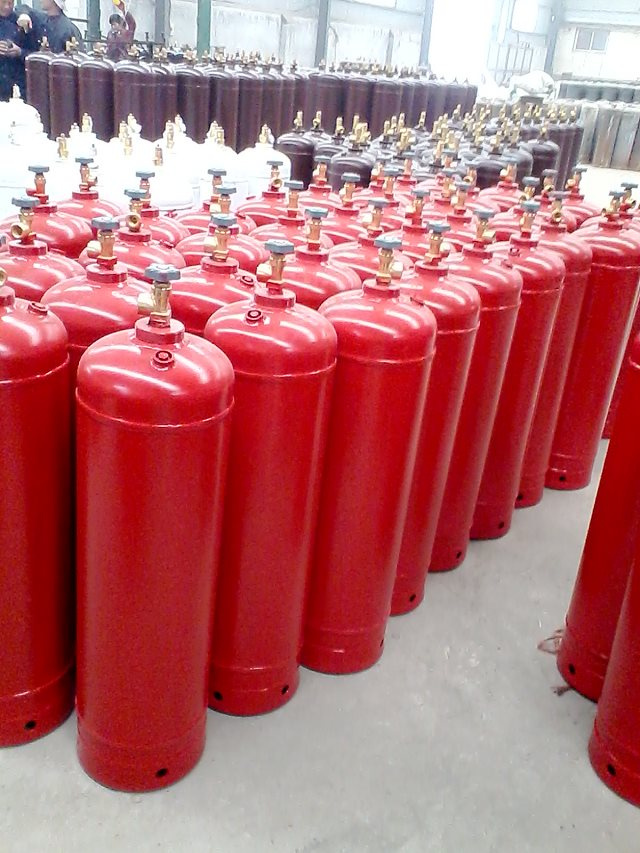

25L Dissolved Acetylene Cylinders for C2H2 gas industrial uses:
Specs:
-Nominal water capacity 25L;-Diameter:~235mm;
-Height:·785mm;
-Wallthickness:~4mm;
-Weight:27kg;
-Working pressure:3MPa;
-Testing pressure:5.2MPa;
-Material:Hp295;
-Manufacturing Standards:GB11638/ISO3807.
Various types of Acetylene Valves,cylinder caps,steel valve guards are optional.
Should you any interests or some more info needed on our
O2 Acetylene Gas Cylinders & accessaries, just pls feel free to contact us!
Nominal Capacity
|
40L
|
Nominal Diameter
|
250mm
|
Limited Filling Pressure(15c)
|
1.52Mpa
|
Hydrostatic Test Pressure
|
5.2Mpa
|
Air Test Pressure
|
3 Mpa
|
Material properties
|
Compressive Strength
|
≥1.8N/mm2
|
Porosity
|
90~92%
|
Volume Density
|
≤270g/L
|
Shoulder Axia Gap
|
≤2.5mm
|
Solvent
|
acetone
|
Filling Gas Quantity
|
About7.2kg approx7.2kg
|
Environmental Temperature
|
under
|
Zhejiang Shengwei High Pressure Vessel Co., Ltd. is located in Yuyao, a famous historical and cultural city abutting on the Hangzhou Bay. The company established in June 2010, engaged in industry of high-pressure vessels. The factory covers about 21000square meters and an plant building with 15000 square meters. Now the company has the fixed asset more than 30 million RMB, and 120 employees. And there are 32 technicians among them. Also company has three advanced production lines of steel seamless cylinder and corresponding testing equipment. The company aims to produce and sales over 400000 0.2L-15L steel seamless cylinders each year.
Zhejiang Shengwei High Pressure Vessel Co., Ltd. is based the company mission of Quality First, Customer First, Technology advanced and Service Best. Establishing the quality assurance system for gas vessel producing. The company has B1 level qualification on pressure vessel, and also passed the ISO9001: 2008 International Quality Management System Certification. The company uses the most strict standard management to manage the procession of producing and testing and dedicates to design and make high-quality products with the most advanced technology.
Our company has advanced equipment, and consummate equipment for product Testing. The main production including nitrogen bottles, argon bottle, carbon dioxide bottle and seamless steel cylinders. The products are sold very well all over the world. The company welcomes all friends come to communicate and discuss with us for seeking common win-win development, and dedicates to offer the users with the high quality products and excellent service.
