Product Specifications
| Prod Model: |
JPB-607A |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Item: |

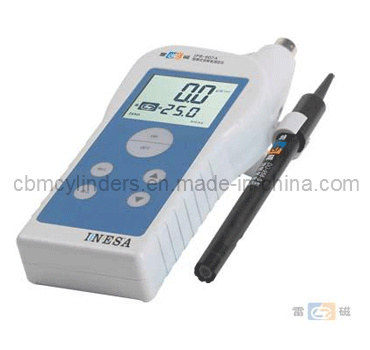

Laboratory Dissolved Oxygen Meter |
| Measurement Range: |
0.00-20.00mg/L |
| Software: |
1.2DC |
| Power: |
Two AA Batteries |
Product Description
Laboratory Dissolved Oxygen Meter, oxygen analyzers.
Specifications:
1. Measuring range
Dissolved oxygen: (0.0~20.0)mg/L
Temperature: (0.0~40.0)° C
2. Accuracy:
Dissolved oxygen: ± 0.30 mg/L
Temperature: ± 0.5° C± 1 digit
3. Residual current<=0.10 mg/L
4. Response time<=45s(90%respond at 20° C)
5. Stability: (± 0.10mg/L )/3h
6. Salinity calibration range: (0.0~35.0)g/L
7. Temperature compensation range: Automatic(0.0~40.0)° C
8. Power supply: 2 alkaline batteries of model 5
9. Dimension(mm): 165× 75× 30
10. Net Weight: 0.3kg
11. Case outside serial No: WXS-A004-1
Package Size: 260X260X200mm
Gross Weight: 2kg.
Functions:
1. 3 1/2 LCD display(blue backlight selectable)
2. Automatic temperature compensation and quick response
3. It supports zero oxygen and full scale calibration
4. It is portable for easy use.
5. It is equipped with DO-958-S dissolved oxygen sensor.
Advantages we have:
-1)Original Manuacturer: Our factories have professional equipments for gas cylinders, medical oxygen regulators, like Punch, CNC Machines, and etc.;
-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Gas Cylinders & 30, 000 PCS Medical Oxygen Cylinders each month;
-3)Quality Control: With ISO9001: 2008, ISO 13485 Quality Management system; All products have been tested before out of our factories;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;
-5)Series: We have different series and models, for different standards in different countries;
-6)Small order can be acceptable: M. O. Q. =50 PCS;
-7)Exporting experience: We have over 5 years' experience for exporting business.
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.
Our manufactured Seamless Steel Gas Cylinders are made from moblie high-pressure vessels. They are manufactured with the most advanced technology, machinery and equipment in the word. They are ideal for holding permanent gases, such as oxygen, hydrogen, argon and carbon dioxide, and etc.
Should you have any potential needs of gas cylinders & accessaries, medical gas equipments, welcome to contact us.
Model
Specifications |
JPBJ-608 |
JPB-607A |
|
Parameters |
Concentration/saturation/ °C |
Concentration/ °C |
|
Range |
DO |
0.00 ~ 19.99mg/L |
0.0 ~ 20.0mg/L |
|
DO Saturation |
0.0 ~ 199.9% |
_ |
|
Temperature |
0.0 ~ 40.0 °C |
|
Accuracy |
DO |
±0.50mg/L |
±0.30mg/L |
|
DO Saturation |
±10%FS |
_ |
|
Temperature |
± 0.5 °C |
± 0.5 °C |
|
Stability |
(±0.10mg/L)/3h |
|
Response Time |
≤45s ( 90% respond at 20°C ) |
|
Residual Current |
≤0.10mg/L |
|
Temperature Compensation |
Automatic: 0 ~ 40 °C |
|
Salinity Calibration |
Yes |
0.0 ~ 35.0g /L |
|
Zero offset /Full scale calibration |
Yes |
|
Barometric pressure |
Yes |
_ |
|
Data Storage |
500 data with time-and-date stamp |
_ |
|
View, delete and print |
Yes |
_ |
|
Display |
Backlit LCD with operation indication |
Backlit LCD |
|
Under-voltage indication |
Yes |
_ |
|
Output |
RS-232 |
_ |
|
Software |
1.1DC |
_ |
|
Housing |
IP65 |
_ |
|
Power |
Four AA batteries |
Two AA batteries |
|
Dimension ( mm ), Weight( kg ) |
510×360×210 , 5 |
260×260×200 , 2 |
