Product Specifications
| Prod Model: |
HTS-25F-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
85X58.5X36.5mm |
| Output Voltage: |
15V |
| Color: |
Silver |
| EMC Standard: |
En55022 Class B, En61000-3-2,3 |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CB |
| Output Power: |
25W |
| Input Voltage: |
85-264VAC; 120-370VDC |
| Brand: |
Haitaik |
Product Description

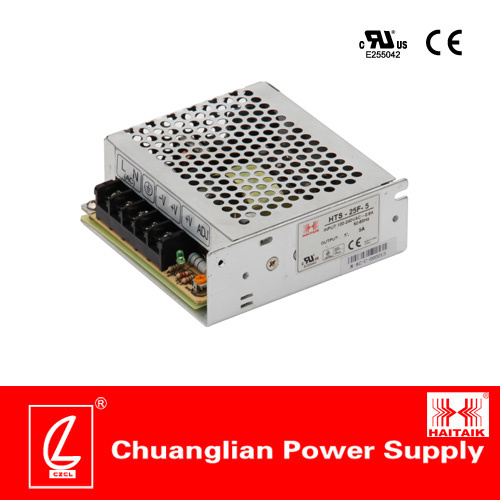

Product Model:HTS-25F-15
Features:
Universal Input 85 to 264 VAC
EMI Meets EN55022(CISPR22) Class B
Low Power Consumption
Approvals: UL/ CUL/ TUV/ CB/ CE
Protections: Over Load/ Over Voltage
Short Circuit
100% Full Load Burn-in Test
2 Years Warranty
Case: 401 Size: 99x98.5x36mm
Input Voltage Range............................................85~264VAC; 120~370VDC
Input Frequency....................................................47-63Hz
Inrush Current.......................................................Cold Start, 15A/ 115VAC, 25A/ 230VAC
Output Adjustment Range................................. ±10% Rated Output Voltage
Line Regulation...................................................≤ 0.5%
Output Over Load Protection.............................110%~150% Hiccup Mode, Auto-recovery
Output Over Voltage Protection.........................115%~135% Rated Output Voltage
Output Short Circuit Protection..........................Hiccup Mode, Auto-recovery
Rise, Hold Up Time............................................50mS, 20mS at Full Load (Typical)
Hi-pot Isolation.....................................................I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Operating Temperature Range.........................0 ºC to +50ºC @100%, -10ºC@ 80%, +60 @60% Load
Storage Temperature Range.............................-40ºC to +85ºC, 0 to 95%RH (Non-Condensing)
Safety Standards...................................................UL60950-1, TUV EN60950-1
EMC standards.....................................................EN55022 class B, EN61000-3-2,3
EN61000-4-2,3,4,5,6,8,11,ENV50204
Cooling Method....................................................Free Air Cooling Convection
Product model | DC output | Load regul. | R&N | Efficiency |
| HTS-25F-5 | 5V, 5A | 1% | 50mV | 73% |
| HTS-25F-12 | 12V,2.1A | 0.5% | 100mV | 77% |
| HTS-25F-15 | 15V, 1.7A | 0.5% | 100mV | 78% |
| HTS-25F-24 | 24V, 1.1A | 0.5% | 100mV | 81% |
