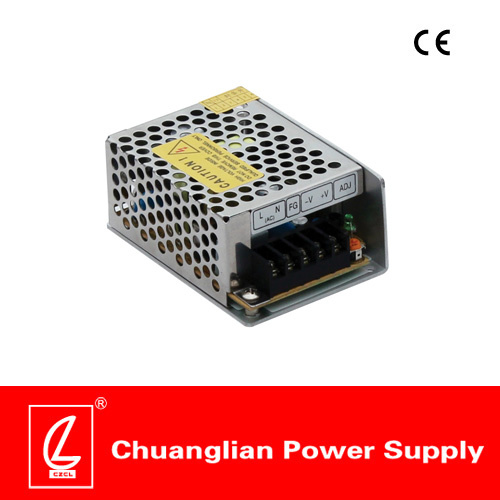

25W 5V Mini Size Single Output Switching Power Supply

Name: 25W 5V Mini Size Single Output Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 764264845
Availability: InStock
Rating: 4.5 (46 reviews)

Supplier:	Changzhou Chuanglian Power Supply Co., Ltd.
Price:	US $ 4.8-5.3/Piece
Min Order:	300/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	A-25M-5
Markets:	Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Size:	85X58X36mm
Output Voltage:	5V
Color:	Silver
EMC Standard:	En55022 Class B
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment

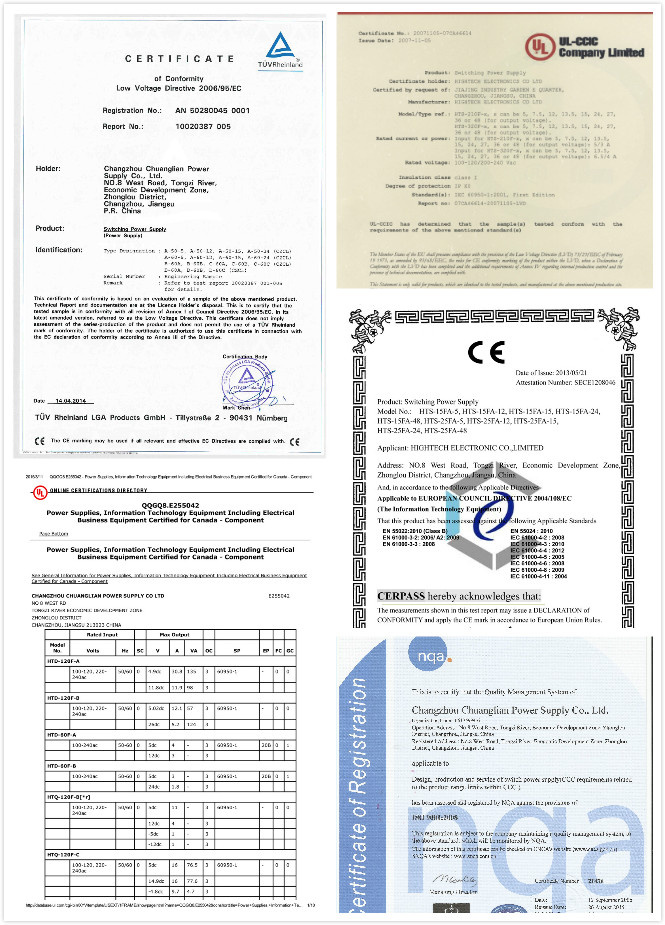

Certification:	CE
Output Power:	25W
Input Voltage:	176-264VAC
Brand:	Czcl

Product Description

Product Model:A-25M

Features:

Low cost, high reliability

Built-in EMI filter

Low output ripple&noise

Protections: Over load/ Short circuit

1 year warranty

CASE: 821 Size: 85x58x36mm

AC input voltage range..........................176-264VAC

Input frequency......................................47-63Hz

AC inrush current...................................Cold start, 40A/ 230VAC

DC adjustment range.............................±10% rated output voltage

Line regulation(full load)........................≤ 0.5%

Output over load protection...................110%-150% hiccup mode, auto-recovery

Rise, hold up time..................................50mS, 20mS at full load (typical)

Withstand voltage..................................I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC, 1 min

Working temperature............................-10~+40ºC @100%, +60*@60% load

Storage temperature............................-20ºC ~+85ºC, 20%~95%RH (non condensing)

Safety standards....................................Design refer to GB4943, UL60950-1, EN60950-1

EMC standards......................................Design refer to GB9254, EN55022 class A

Cooling method......................................Free air cooling convection

Product model	DC output	Load regul.	R&N	Efficiency
A-25M-5	5V,5A	2%	100mV	72%
A-25M-12	12V, 2.1A	1%	120mV	76%
A-25M-24	24V, 1.1A	1%	200mV	78%

Founded in March of 2000, Changzhou Chuanglian Power Supply Co. Ltd. Focuses on researching, developing and manufacturing varieties of AC/DC and DC/DC switching power supplies and modules. Chuanglian® Is one of the famous and leading brands in the switching power supply industry in China. The product spectrum of the company covers the power rating from 5W to 2, 000W in over 2, 000 different models. Chuanglian Power Supplies are widely used in communication, LED display, industrial control, monitors, lighting, railway system, power station, instrumentation, medical equipment, etc. The company offers the costumers in over 50 countries/Regions including Europe, the USA, Japan, Korea, Hong Kong with the annual capacity of 6, 000, 000 units.

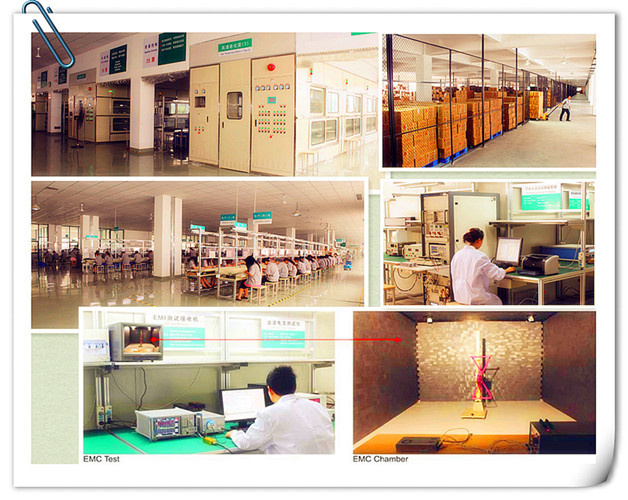

The plant is equipped with vertical and horizontal Automatic Insertion Machines and Surface Mount Machines, Automatic Wave Soldering Machines, PC based Power Supply Auto Test Systems, RoHS spectra analyzer and many other state-of-art devices. For assuring the high quality and reliability, all of the key components for the products are sourced from worldwide famous vendors. Every single unit has to pass the full load high temperature burn-in test. The average failure rate is less than 0.2%.
