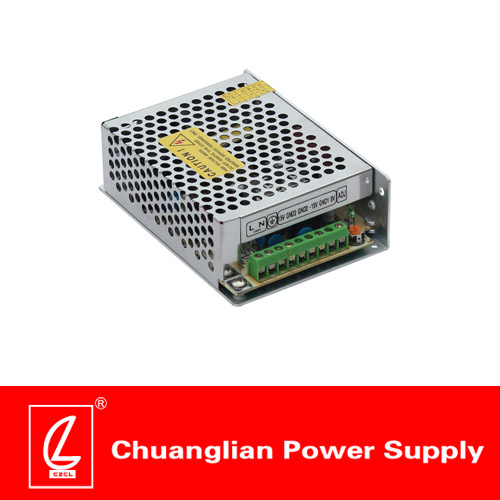

25W Triple Output Switching Power Supply

Name: 25W Triple Output Switching Power Supply
Brand: china-manufacturer-directory.com
SKU: 767971005
Availability: InStock
Rating: 5 (52 reviews)

Supplier:	Changzhou Chuanglian Power Supply Co., Ltd.
Price:	Negotiable/Piece
Min Order:	300/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	C-25
Markets:	Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Size:	110X78X36mm
Output Voltage:	5V, 12V, 24V
Output Type:	Triple
Warranty:	1 Year
Output Power:	25W
Input Voltage:	176-264VAC
Brand:	Czcl

Product Description

Product Model:C-25

25W Triple Output Switching Power Supply

Low cost, high reliability

Built-in EMI Filter

Low output ripple&noise

Protections: Over load/ Short circuit

V1 is isolated by other output

1 year warranty

Case: 802 Size: 110*78*36mm

AC Input voltage range...................................176-264VAC

AC Inrush current.............................................Cold start, 40A/ 230VAC

DC adjustment range.................V1:±5% rated output voltage

Line regulation(full load)..............≤0.5%

Output over load protection.............................110%-150% hiccup mode, auto-recovery

Rise, hold up time............................................50mS, 20mS at full load (typical)

Withstand voltage............................................I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC,1 min

Working temperature......................................-10ºC to + 40ºC@100%, +60ºC@ 60% load

Storage temperature.......................................-20ºC~ +85ºC,20%~ 95%RH (non-condensing)

Safety standards..............................................Design refer to GB4943,UL60950-1,EN60950-1

EMC standards................................................Design refer to GB9254,EN55022 class A

Cooling method................................................Free air cooling convection

Product model	DC output	Load regul.	R&N	Efficiency
C-25S	5V,0.4~4A	2%	100mV	70%
	5V,0~0.4A	3%	100mV
	-5V, 0~0.4A	3%	100mV
C-25P	5V, 0.3~3A	2%	100mV	71%
	12V,0~0.4A	3%	120mV
	-12V,0~0.4A	3%	120mV
C-25Q	5V,0.3~2.5A	2%	100mV	72%
	15V,0~0.4A	3%	150mV
	-15V,0~0.4A	3%	150mV
C-25U	12V,0.2~2A	1%	120mV	72%
	5V,0~0.4A	3%	100mV
	-5V,0~0.4A	3%	100mV
C-25V	24V,0.1~1A	1%	200mV	73%
	5V,0~0.4A	3%	100mV
	-5V,0~0.4A	3%	100mV

Founded in March of 2000, Changzhou Chuanglian Power Supply Co. Ltd. Focuses on researching, developing and manufacturing varieties of AC/DC and DC/DC switching power supplies and modules. Chuanglian® Is one of the famous and leading brands in the switching power supply industry in China. The product spectrum of the company covers the power rating from 5W to 2, 000W in over 2, 000 different models. Chuanglian Power Supplies are widely used in communication, LED display, industrial control, monitors, lighting, railway system, power station, instrumentation, medical equipment, etc. The company offers the costumers in over 50 countries/Regions including Europe, the USA, Japan, Korea, Hong Kong with the annual capacity of 6, 000, 000 units.

The plant is equipped with vertical and horizontal Automatic Insertion Machines and Surface Mount Machines, Automatic Wave Soldering Machines, PC based Power Supply Auto Test Systems, RoHS spectra analyzer and many other state-of-art devices. For assuring the high quality and reliability, all of the key components for the products are sourced from worldwide famous vendors. Every single unit has to pass the full load high temperature burn-in test. The average failure rate is less than 0.2%.
