27 Year Experienced China Factory Mineral Machinery Gold Shaking Table
Product Specifications
| Prod Model: |
MX-6S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
All Kinds of Big Gravity Rate Ore,Metal |
| Capacity: |
800-2000kg/H |
| Application Field: |
Mining Industrial Separating |
| Place Of Origin: |
Jiangxi, China(Mainland) |
| Deck-Material: |
Fiberglass |
| Efficiency: |
99.9% |
| Persons Needed: |
1 |
| Type: |
Gravity Separator |
| Voltage: |
380V |
| Weight: |
1T |
| Certification: |
ISO9001:2008 |
| Warranty: |
1 Year |
| Color: |
Black |
| Customized: |
Customized |
| Condition: |
New |
Product Description

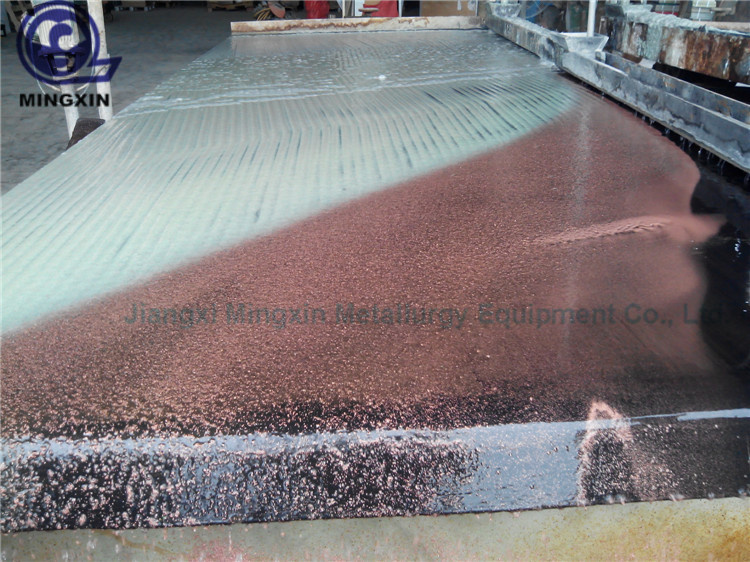

Shaking table, ore shaking table is one of the main mineral processing equipment.
Apply for: sorting tungsten, tin, tantalum and niobium and other rare metals and precious metal ores. It can also be used for sorting iron, manganese ore stone and coal. When dealing with tungsten, tin and other minerals, its effective recovery size is 2-0.02 mm.
Basic Info
· Model NO.: MX6-S
Additional Info
· Production Capacity: 6-7Ton/day in 8hours working time

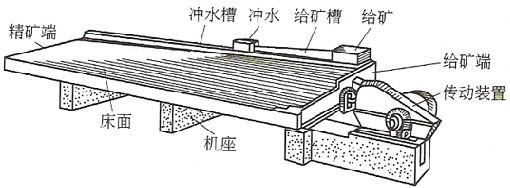

Product DescriptionApplication: Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.Main features:High rich ore ratio, high separating efficiency, Adjustable stroke length Working principle of shaking table:The motor drives the eccentric shafts to rotate, drives the connecting rod to move up and down. With the rod moving down, minerals on tilting deck installed by rifle spokes go into the feed box. Meantime, water stored in the water tank impacts the minerals laterally. So by the means of shaking and washing, minerals of different sizes and densities flow from discharge outlets, which separate concentrates and tailings clearly and efficiently. Since the mining table concentrators have been upgrading in line with advanced technologies, production and accuracy have improved significantly. Structure:A shaking table is manly composed of eight components, which are table head, electric motor, slope control, deck, feed box, water tank, rifle spokes and lubrication system. The vertical and reciprocating motion of the deck is driven by the crank-connecting actuator. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod makes a downward movement, the toggle plate pushes back shaft and reciprocating lever backward. Meanwhile, through the tension of spring, it drives the deck to move backward, because the deck is connected with the reciprocating lever by linkage seat. When the rod moves upward, through the force from spring tension, the deck makes a forward movement.
| Name | Unit | Course ore Deck | Fine sand
Deck | Slime Deck |
| Deck Size | Length | mm | 4450 | 4450 | 4450 |
| transmission end width | mm | 1855 | 1855 | 1855 |
| Concentrate end width | mm | 1546 | 1546 | 1546 |
| Maximum Feeding Size | mm | 2 | 0.5 | 0.15 |
| Feeding Amount | t/d | 30-60 | 10-20 | 15-25 |
| Feeding Density | % | 25-30 | 20-25 | 15-25 |
| Stroke | mm | 16-22 | 11-16 | 8-16 |
| Frequency | f | 45-48 | 18-53 | 50-57 |
| Water added | t/d | 80-150 | 30-60 | 10-17 |
| Transverse slope of Deck | ° | 2° 30-4° 30 | 1° 30-3° 30 | 1° -2° |
| Longitudinal slope of Deck | ° | 1.4 | 0.92 | ------ |
| Beneficiation Area | m2 | 7.6 | 7.6 | 7.6 |
| Cross-section Shape of Deck |
| rectangular | saw tooth | triangle |
| Motor Power | KW | 1.1 | 1.1 | 1.1 |
| Transmission Mechanism |
| Eccentric linkage |
Jiangxi Mingxin Metallurgy Equipment Co., Ltd. (the former is Shicheng Melting Equipment Co., Ltd. ) began to develop plants for mineral machinery from 1980' S. Since 1990' S we' Ve also specialized in design, production & installation of Scrap waste Recycling Machinery.
As a leader manufacturer in this field of China, Mingxin is a National High-tech enterprise, with its 1st factory setup in 1988, Jiangxi Province Famous Trademark, passed ISO9001: 2000 quality SCS, large taxpayer as well as a contract-honoring and faith-keeping AAA enterprise. It owns 40, 000 square meters factory size and offices located in Ganzhou, Beijing.
Mingxin' S projects and clients are located in USA, German, Poland, Romania, Italy, New Zealand, Australia, Egypt, SA, Thailand, Malaysia, India, Taiwan, Korea, Japan...Over 25countries.
Mingxin' S main products:
Circuit board recycling machine (patent ZL02247015.8), Battery recycling equipment(patent ZL200920046802.8), CRT Cutter(ZL200915018012.2), E-scrap recycling machine(ZL200419951304.4), PCB Crusher(ZL201319069012.9)and wire/cable recycling machine (patent ZL200420059021.2) Electronic Waste Shredders, Single shaft shredder, electronic waste shredder,
Crusher, ball mill, Classifier, Shaking tables, Conveyor, vibrating machines, Spiral chute, Flotation etc…
