Wuhan Kudat Industry & Trade Co., Ltd. >> 2tons Wheel Loader with CE (ZL20F)

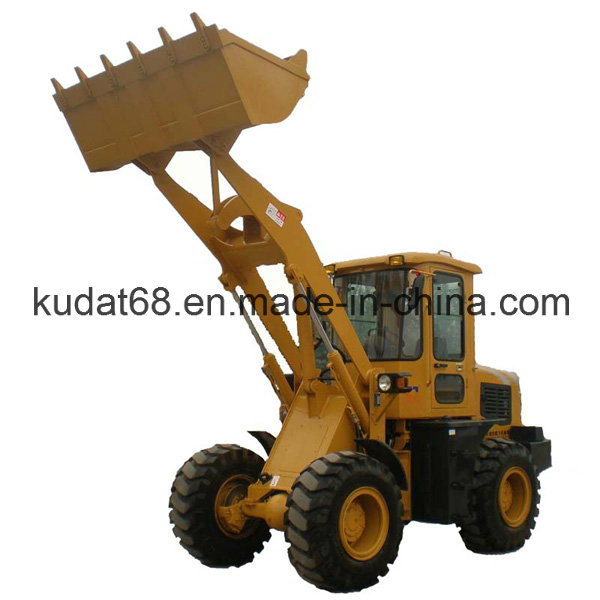

2tons Wheel Loader with CE (ZL20F)

Name: 2tons Wheel Loader with CE (ZL20F)
Brand: china-manufacturer-directory.com
SKU: 742364605
Availability: InStock
Rating: 4.8 (120 reviews)

Supplier:	Wuhan Kudat Industry & Trade Co., Ltd.
Price:	US $ 16700/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZL20F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Bucket Capacity:	1.2m3
Rated Loading Weight:	2000kgs
Operating Weight:	5310kgs
Overall Dimension:	5630X2100X2850mm
Max. Traveling Speed:	24km/Hour
Grade Ability:	30 Degree
Gearbox Type:	Fixed Shaft Power Shift
Rated Power:	55kw
Rated Speed:	2200rpm
Dumping Reach:	752mm
Walking Mode:	Wheeled
Condition:	New
Type:	Small Loader
Certification:	ISO9001: 2000
Load And Unload Method:	Front Discharge

Product Description

1. Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5. Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.

Rated bucket capacity	1.2M3	Transmission system
Rated loading weight	2000kgs	Torque converter model			YJ-280A
Operating weight	5310kgs	Type			Single phase, 3-elements
Auto. self-leveling system	Have	Gearbox type			Fixed shaft power shift
Rated loading turn force	4000kgf	Shifts (forward/reveres)		2/2
Max. breakout force	5467kgf	Max. traveling speed			24km/hour
Max. pulling force	45.4kN	Tire
Grade ability	30 degree	Size			16/70-20
Lifting time of arm	5.9s (full load)	Front wheel pressure		220kps
Lowering time of arm	2.8s (full load)	Rear wheel pressure			180kps
Tilting time of arm	1.1s	Steering system
Overall dimension	5630x2100x2850mm	Steering angle			±35dgeres
Engine		Mini. Steering radius			5251mm
Model	4DX21-72	Others
Type	Water cooled, 4-strokes	Dumping clearance			2600mm
Bore x Stroke	105x125mm	Dumping reach			752mm
Max. torque	270Nm	Min. Ground clearance	310mm
Rated power	55kW	Wheel base	2400mm
Min. oil consumption	243g/ kw.h	Wheel tread	1640mm
Rated speed	2200rpm	Max. bucket reach	4092mm

Since 1990, Kudat Industry and Trade Company has exported engineering machinery, construction machinery and agricultural machinery to international markets. Satisfying customers' stated and implied needs have always been the focus of business policy of Kudat. As a further step to satisfy customers and to give them confidence in our quality & production capabilities, Kudat has adopted ISO 9001: 2000, the international quality management system. And some of our products have also passed CE and EPA certification.

With a rich inventory of numerous products and vast sourcing capabilities (more than 60 famous manufacturers) cater to the requirements of its customers. Except abundant of products, we also set up factory for studying and producing relative machinery products. From base to top, Kudat holds a unique position in the global market of machinery products which is combination of production and trade.

With 16 years experience in the export of machinery products, Kudat has gained reputation and confidence as a reliable Chinese supplier. By virtue of committed management and dedicated employees, Kudat has gained recognition from the government of China as an excellent exporter.
