Product Specifications
| Prod Model: |
ST6000TKMD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
300-860MHz (Optional) |
| Format: |
PAL/NTSC |
| Transmission Environment: |
Los, Nlos and High Speed Moving Environment |
| Video/Audio Interface: |
BNC/RCA |
| Resolution: |
720X576 |
| Dimension: |
170*120*80mm |
| Weight: |
1.27kg |
| Application: |
Audio Transmission |
| Oscillator Circuit: |
D / A Converter or Digital Potentiometer |
| Modulation: |
Cofdm |
Product Description
2W Cofdm traffic Wireless Mobile video surveillance

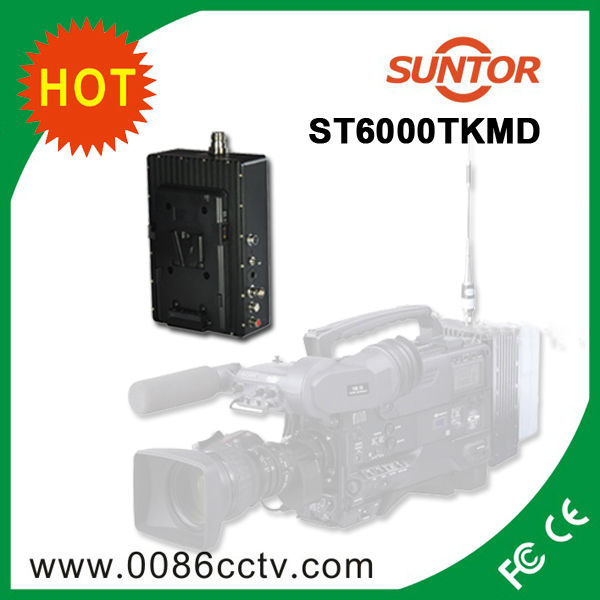

2W COFDM Buckle plate wireless mobile video transmitter and receiver
Product model: ST6000TKMD
Introduction:
This product is a new kind of broadband wireless video equipment that adopts the latest technologies of COFDM modulation and MPEG-2 video compression that can complete video transmission in high-speed motion and NLOS (non line-of-sight) conditions. The diversity receiving technology greatly improves the receiving quality in all conditions. This transmitter is specially designed to meet all necessary transmission requirements of broadcasting standard. It has been widely used in many fields such as: Police Forces, First Responders, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident Support etc.
Main Features:
Lithium battery for power supply
Convenient to be carried and installed
COFDM modulation and MPEG-2 video compression
Firm enclosure with built-in cooling fans, waterproof and shockproof
Great security by encryption of AES 128 bit/ALLTECH Basic Scrambling
Modular design and highly integrated
Good transmission with high definition image and stereo audio
Adjustable working frequency, LCD board displays the working frequency
Stable transmission in NLOS(non line-of-sight)and high speed mobile conditions.
The transmission range is more than 50km in LOS (line-of-sight) environment
This equipment can realize the wireless transmission with high definition video and stereo audio in NLOS (Non line-of-sight) condition. The first responder can carry the equipment to enter accident ground and then the transmitter send the camera's digital, compressed signals to the commanding center.
|
DC Input |
DC12.5V-DC14.8V |
|
Working Current |
≤[email protected] |
|
RS232 Control Interface |
Standard RS232 level, 9600,8,N,1 |
|
RS232 Data Interface |
Standard RS232 level, supporting 1200~115200 |
|
Modulation |
COFDM |
|
Constellation |
QPSK,16QAM,64QAM (optional) |
|
FEC |
1/2,2/3,3/4,5/6,7/8 (optional) |
|
Guard Interval |
1/32,1/16,1/8,1/4 (optional) |
|
Bandwidth |
2/4/8MHz (optional) |
|
Carrier |
2K |
|
Output Frequency |
300MHz-399MHz,400-500MHz (customized), |
|
560MHz-760MHz,760MHz-860MHz (customized) |
|
1.0-1.4GHz , 2.3-2.5GHz (customized) |
|
Video/Audio interface |
BNC/RCA |
|
Power Control |
27-30dBm(selectable) in 1dB step |
|
|
≤2dB (full frequency range ); |
|
Encryption |
AES 128 bit / ALLTECH Basic scrambling |
|
RS232 serial port for configuration |
|
Power Flatness |
≤0.5dB (within 8MHz) |
|
CNR |
≥-30dB @ 30dBm power output |
|
Second Harmonic |
≤-43dB |
|
Video Signal |
1Vp-p@75Ω,PAL |
|
Resolution |
720x576 @ 8MHz, 352x288 @ 1.25MHz |
|
Video Rate |
2-20Mbps (adjustment) |
|
Video Compression |
MPEG-2 4:2:0 |
|
Video image |
720*576@8MHz |
|
CBER |
<2.0E-4 |
Protection standards
|
IP66, Dustproof, waterproof design |
Dimension
Weight |
170*120*80mm
1.27kg |
