Product Specifications
| Prod Model: |
ST6000GF2T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission Modulation: |
Cofdm |
| Frequency: |
500MHz-760MHz |
| Transmit Power: |
2W(Mini Transmitter Works with Amplifier) |
| Wireless Mode: |
Point to Point |
| Antenna Type: |
External Omni Antenna |
| Support Range: |
1-2km(Nlos), up to 30km(Los) |
| Application: |
Audio Transmission, Video Transmission |
| Modulation: |
Cofdm |
Product Description

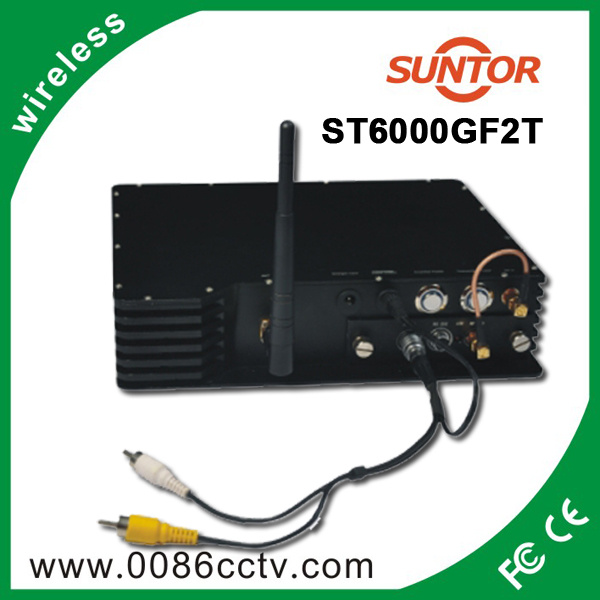

2W mini UAV COFDM wireless video transmitter and receiver
Introduction:
The mini transmitter is highly integrated digital video transmission equipment that can realize wireless video transmission in mobile and NLOS (Non line-of-sight) conditions. With professional clothes and camera, it can be used in public security bureau or security department to finish covert missions (technical investigation and covert intelligence gathering). It can be also applied in emergency and evacuation, railway, marine and so on. We can use the mini transmitter with a specially designed multifunctional amplifier to meet the requirement of longer transmission range.
Main Features:
COFDM modulation, Stable transmission
MPEG-2 video compression, DVD video quality
Mobile and NLOS(Non line-of-sight) transmission
High strength aluminium enclosure, dustproof, waterproof and shockproof
Lithium battery for power supply(continuous working time of every battery is an hour)
Modular design and highly integrated
Adjustable working frequency
Can be used conveniently with the specially designed clothes
Transmission security by encryption of AES 128 bit/ ALLTECH Basic Scrambling
Matched with multifunction amplifier for longer range requirement. The transmission range can be up to 80km in LOS (line-of-sight) condition
Product Application:
The product is an ideal solution in remote surveillance, designed specially for the covert intelligence gathering market. By using a camera, the first responder can catch live scenes at the accident ground. Then the mini transmitter sends real-time images to the receiving center.
|
Modulation |
COFDM |
|
Bandwidth |
2/4/8MHz (optional) |
|
Constellation |
QPSK, 16QAM, 64QAM |
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|
Video Signal |
1Vp-p@ 75Ω, PAL |
|
Resolution |
720×576 @ 8MHz, 352×288 @ 1.25MHz |
|
Video Compression |
MPEG-2 (4:2:0) / MPEG-4 (optional) |
|
Frequency |
300MHz-399MHz,400-500MHz (customized), |
|
560MHz-760MHz,760MHz-860MHz (customized) |
|
Frequency is adjustable continuously |
|
Transmission Range |
LOS: more than 10kms (mini transmitter works only) |
|
LOS: more than 20kms (mini transmitter works with amplifier) |
|
NLOS: more than 500m (mini transmitter works only) |
|
NLOS: more than 1-2km (mini transmitter works with amplifier) |
|
Working Voltage |
AC 220V /DC12V |
|
Motion Speed |
more than 180km/h |
|
Power Interface |
Standard |
|
RF Interface |
Standard N female |
|
Protection |
Antirust and shockproof |
|
Power Output |
22dBm-24dBm (up to 33 dBm with the amplifier) |
|
Latency |
≤80ms |
|
Battery |
50 minutes continuous working time |
|
Temperature |
-20°C~+50°C |
|
Humidity |
≤95% |
|
Encryption |
AES 128 bit / ALLTECH Basic Scrambling (RS232 serial port) |
|
Second Harmonic |
≤-43dB |
|
Dimension |
Mini transmitter 105*62*23mm |
|
Power amplifier 151*195*47mm |
|
Weight |
0.25kg (mini transmitter + battery) |
|
2.8kg ((mini transmitter + power amplifier) |
Multifunctional Receiver Specification:
|
Bandwidth |
2/4/8 MHz (optional) |
|
RF Level |
-94dBm~-20dBm |
|
RF Impedance |
50Ω |
|
Receive Frequency |
170-860MHz VHF&UHF |
|
DC Output |
DC 10.5V+/-0.5V |
|
Constellation |
QPSK, 16QAM, 64QAM (optional) |
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 (optional) |
|
Carrier |
2K |
|
Decryption: |
AES 128 bit / ALLTECH Basic scrambling |
|
RS232 serial port for configuration |
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 (optional) |
|
Video Decoding |
ISO/IEC13818-2 (MPEG2 video) MP@ML |
|
Aspect Ratio |
4:3, 16:9 |
|
Resolution |
720 x576 |
|
Audio Output |
Stereo unbalanced (300/200 mV) |
|
AV Output |
2 audio+2 video |
|
Video Record |
H.264 |
|
USB Interface |
USB 2.0 (Flash memory disk can be connected ) |
|
Control Protocol |
PELCO-P/D |
|
Control Frequency |
433MHz |
|
Control Modulation |
GFSK |
|
Power Supply |
AC220V/DC12V <2A |
|
Working Current |
<2.5A @DC 12.5V |
|
Temperature |
-20°C~ +50°C |
|
Dimension |
480*260*45 (1U Aluminium alloy box) |
|
Weight |
2.5kg |
