Product Specifications
| Prod Model: |
ST5800TKMD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Standard: |
H.264 |
| Distance: |
200 Meters |
| Voltage: |
6.5-16.8V DC |
| Antenna: |
External Antenna |
| Signal: |
Audio Video Signal |
| Frequency: |
5.1-5.9GHz |
| Interface: |
Sdi Input; HDMI Input; 2 Antenna Port; DC Input |
| Working Modulation: |
Ofdm |
| Power: |
23dBm |
| Bandwidth: |
20/40MHz |
Product Description
5.8ghz broadcasting real time mini wireless video transmitter
Product features
5.8ghz broadcasting real time mini wireless video transmitter
1. HDMI 1.3 spec
2. HDMI and 3G SDI input and output
3. Highest resolution 1080p 60, no delay and no compression
4. Support audio formats include Dolby True HD, DTS-master, etc.
5. AES-128 encryption with air interface HD video data stream
6. Support point to point, and point to multi point network topology
7. Each RX paired to the unique TX in factory,
8.5GHz ISM frequency band, maximum 10 frequency channel selected by user knob, coexist with WIFI.
9. Maximum transmission distance 200m
10. Signal indicators for wireless net status, Video status and receiver RSSI
11. Wide range power voltage input, adapt most kinds of camera battery
12. Optional Sony F970 battery buckle, convenient for field battery install and replacement
13. Any input and output ports with ± 8 kV ESD protection level (HBM, contact discharge)
14. Industrial metal case, stable and reliable
|
|

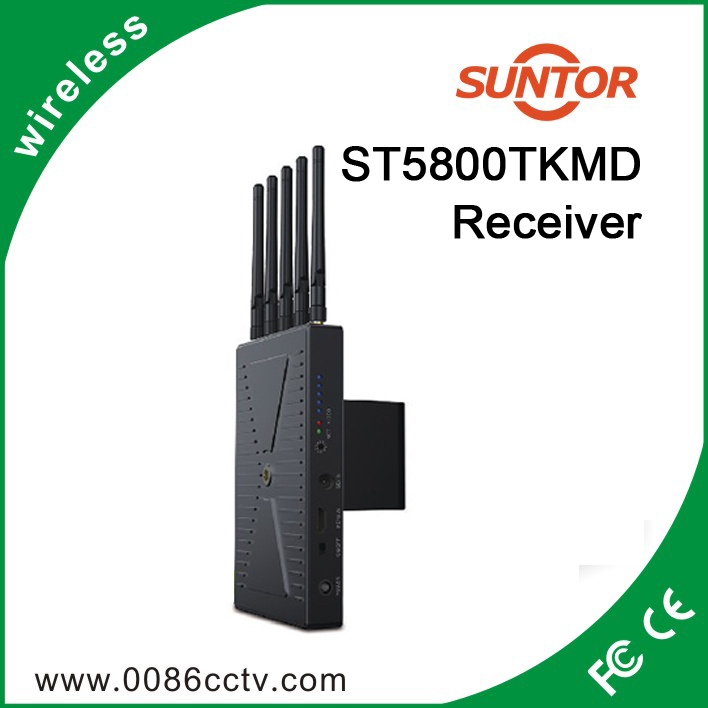

Transmitter |
Receiver |
|
Interface |
SDI Input(BNC Female); HDMI Input(Type A female); 2 Antenna port(2 SMA female); DC input (4 pin XLR male) |
SDI Output(BNC Female); HDMI Output(Type A female); 5 Antenna port(SMA female); DC input (4 pin XLR male) |
|
Supply voltage range |
6.5-16.8V DC |
6.5-16.8V DC |
|
Power consumption |
<8W |
< 9 W |
|
Size |
(L x W x H): 120x 70 x 25mm, don't include Antenna |
(L x W x H): 160x 110 x 25mm, don't include Antenna |
|
Mass |
380g |
540g |
|
Input Video Format |
HDMI:SD, HD,525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A
SDI:3G, HD, and SD-SDI (auto-selected),
SMPTE-259/274/292/296/372/424/425;1x BNC |
/ |
|
Output Video Format |
/ |
HDMI:SD, HD,525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A
SDI:3G, HD, and SD-SDI (auto-selected),
SMPTE-259/274/292/296/372/424/425;1x BNC |
|
Input Audio Format |
SDI embedded 4 channel 24 bit/48KHz |
/ |
|
Output Audio |
/ |
SDI embedded 4 channel 24 bit/48KHz |
|
Signal Indicator |
POWER-Green;NET-Green;VIDEO-Yellow |
POWER-Green;Wireless RSSI-Green(5 LEDs);VIDEO-Yellow |
|
Frequency Band |
5.1-5.9GHz,configurable with China, North American, Europe |
5.1-5.9GHz,configurable with China, North American, Europe |
|
Modulation Mode |
OFDM 16QAM |
OFDM 16QAM |
|
Transmission Power |
Maximum 23dBm |
/ |
|
Receiver Sensitivity |
/ |
-75dBm |
|
Occupied Bandwidth |
20/40MHz |
20/40MHz |
|
Temperature Range |
0 ~ 40°C (operating condition); -20~60°C(Storage) |
0 ~ 40°C (operating condition); -20~60°C(Storage) |
|
Compliance |
FCC; CE. |
FCC; CE. |
