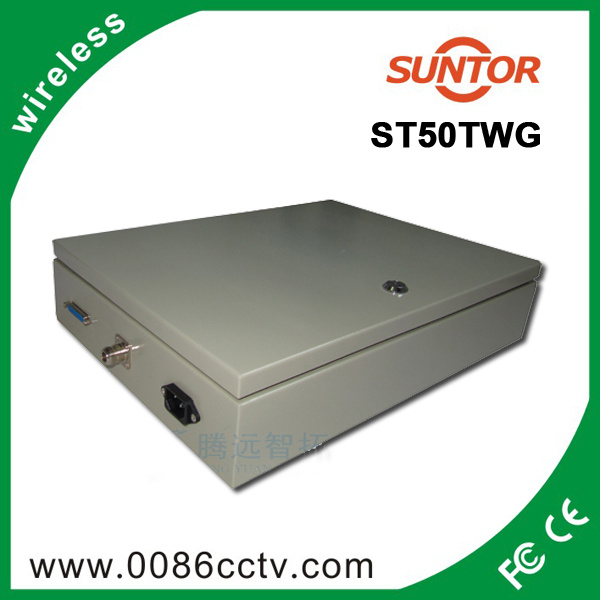

50km wireless PTZ data command control transmission
Application:
ST50TWG/ST419TWG remote command control system with a master keyboard, integrated high speed dome cameras with the use of the ball constitutes a wireless control system. Between the keyboard and ST50TWG command receiver through RS485 communication, ST50TWG responsible for passing keyboard control commands over the wireless channel to pass through to ST419TWG command receiver. ST419TWG command receiver and control through the RS485 communication link to the command passed to the integration of high-speed dome cameras and thus completed the integration of wireless high-speed dome control. Such as: Traffic control and toll management, monitoring of banks and postal savings network, 110 command centers and fire command center, a modern command and management, oil, mining, forest-site remote monitoring and other important areas of low bit-stream wireless data communications.
Air traffic data rate |
600bps ~ 19200bps |
Interface communications rate |
1200bps~38400bps |
Communication interface |
Support RS485 or RS232(default 485) |
Maximum transmit delay |
1000/960*63=65.6ms( 9600 bps ) |
Transmit delay count |
The number of bytes sent +2 (9600bps) |
Frequency stability |
+/- 5PPM |
Antenna impedance |
50Ω |
RF power |
25W |
Supply voltage |
12V DC /8A |
Ambient temperature |
-40 C~ 50 C |
Relative humidity |
30% ~ 93% |
Size |
310mm×210mm×130mm(Width×Length×Height) |
