Product Specifications
| Prod Model: |
ST5819VC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
5.18-5.85GHz |
| Transmission Distance: |
5km |
| Type: |
Wireless and Waterproof |
| Other: |
Build-in Encoder |
Product Description

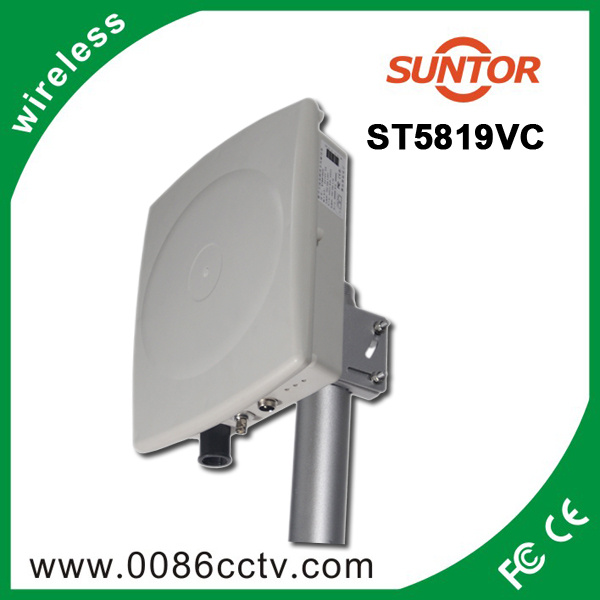

5km 5.8g Wireless Video PTZ Command Transmission with encoder
Feature:
1. Long distance transmission, NLOS distance above 5KM
2. Strong anti-interference in harsh electromagnetic environments
3. Strong encryption, support WEB\WPA\WPA-PSK\WPA2-RADIUS\WPA2-PSK, ect.
4. H. 264 video compression technology, high compression, easy to achieve in narrow-band high-definition image transmission
5. Wireless and parameters setting basic on Web interface, easy to operate.
6. Can add variety of protocol standards, with RS485, support 1200\2400\4800\9600BPS.
7. Support variable bit rate, variable frame rate setting. Set the video image also can limit the compressed stream of video image.
8. Support PPPoE\DHCP\TCP/IP\HTTP\UDP\RTP/RTCP\RTSP\UPNP\SMTP\FTP\SIP\DDNS\DNS
9. Two-way voice intercom support external audio input and output (custom)
|
Parameter/Name |
ST5819VC Digital wireless video transmission with PTZ command and built-in encoder |
|
Wireless part |
|
Frequency range |
5180~5825MHz |
|
Channel |
24 |
|
Transmission standard |
802, 11a |
|
Compression standard |
|
Compression standard |
H. 264/MJPEG |
|
Compression output rate |
32K-4Mbps/1M-16Mbps |
|
Video coding size |
D1: 704× 576, Half D1: 704× 288 CIF: 352× 288 QVGA: 320× 240 QCIF: 176× 144 |
|
Frame rate |
25F/S, 30F/S(available adjust) |
|
Image adjust |
Brightness, contrast, chroma, saturation, image quality adjusting
|
|
Image delay |
Less than 200MS(LAN) |
|
Audio |
|
Compression standard |
G. 711 |
|
Compression output rate |
64Kbps |
|
Modulation connector |
|
Communication interface |
RJ45 10M/100M to match Ethernet, RS232, RS485 |
|
Memory interface |
SD holder, SD card for video save and take photo, standard at SD2.0, SD/SDHC; NAS |
|
Function and Feature: |
|
Agreement |
TCP/IP, HTTP, UDP, RTP/RTCP, RTSP, DHCP, PPPOE, UPNP, SMTP, FTP, SIP, DDNS, DNS |
|
Safe |
Three level password protection |
|
Users |
5 users |
|
Hardware |
CPU: High-performance media and communications processors ARM + video hardware acceleration engine
Operating system: real-time embedded LINUX operating system
ROM: 8MBytes Flash; RAM: 128M Bytes DDR2 SDRAM |
|
General specifications: |
|
Temperature |
-10º C-65º C |
|
Humidity |
Below 85%RH |
|
Power |
< 10W |
Teng Yuanzhi Shenzhen Electronic Co., Ltd. is specialized in high-end wireless video monitoring system, colsed-circuit monitoring system satellite communication system, CATV and microwave remote video surveillance system. Wireless control and image transmission system development and application of high-tech private enterprises. The company is one of the wireless microwave transmission systems and network multimedia communications pioneer and leader.
The company has the strong technology and R&D capacity reserve, also has the climax R&D team, we are all committed long-distance microwave communicate industry, serviced security information and radio & TV industry. To create a peaceful harmonious society, we have the responsibility to revitalize the national science & technology. In today's world, the high-quality Remote microwave video transmission system has been widely used in various industries. Including: Government departments, Military, Security system, Oil field, Construction Corps, Large mining, Factories, Construction sites etc., for others large places discommodiousness span the cable need to set up the remote transmission. We are supplying for customers the wireless communication networking, wireless video surveillance and video conferencing integrated complete set of solve project. At present, our company has developed and had a few categories of products, high-end applications for the mobile, high-resolution image transmission system, base on 2.4/5.8GHz license-exempt bands wireless network transmission systems and traditional analog microwave remote image transmission system, the transmission distance from a few tens of meters to several kilometers. Change system can be applied to mountain, forest, countryside, desert, rivers, islands, oil, electricity, construction sites and other places the transmission environment.
The Remote image transmission system can transmit real-time, long-distance and high-definition video images, because of the image carrier frequency so high, has a strong immunity and transmission long distance, so it be popularitied by customers in the industry and has achieved good social benefits.
