Wuxi Kaiao Power Machinery Co., Ltd. >> 3-10HP Diesel Engine/ Portable Diesel Engine for Boat Use

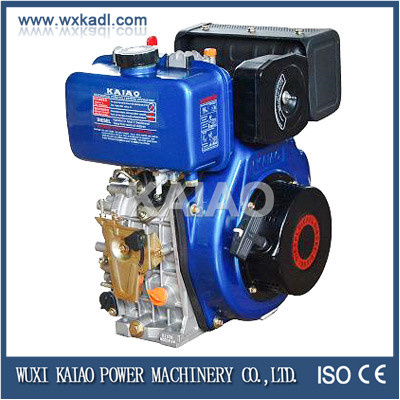

3-10HP Diesel Engine/ Portable Diesel Engine for Boat Use

Name: 3-10HP Diesel Engine/ Portable Diesel Engine for Boat Use
Brand: china-manufacturer-directory.com
SKU: 689645645
Availability: InStock
Rating: 4.7 (96 reviews)

Supplier:	Wuxi Kaiao Power Machinery Co., Ltd.
Price:	US $ 165/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	KA170F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Basic Diesel Generator
Installation Method:	Portable
Stroke:	Four Stroke
Cooling Method:	Air -Cooled

Product Description

Advantage:
*Smallest injector *low oil consumption *compact structure *fast starting *small in size and light*run steadily*suitable for heavy work
*Widely used *sold very well in China
Type: Single-cylinder, vertical, air-cooled, direct injection
Bore*stroke(mm): 70 *55
Piston displacement(l): 0.211
Compression ratio: 20: 1
Rated power/rated speed: 2.5/3000 2.8/3600.

Model	KA170F
Type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
Combustion system	Direct lnjection
Bore X Stroke(mm)	70x55
Displacement(cc)	211
Speed(rpm)	3000	3600
Max. output(kw)	2.8	3.1
Rated output(kw)	2.5	2.8
Max. no-load speed(r/min)	108%
Min. no-load speed(r/min)	1300
Fule	0# or -10#light diesel oil
Fule oil tank volume(L)	2.5
Lubricatiom oil volume(L)	0.75
Fule oil consumption rate(g/kw. h)	280.2	288.3
Valve clearance (mm)	0.10--0.15
PTO Model	Crankshaft orCamshaft
Starting system	recoil
PTO rotation direction	It is clockwise as viewing from the flywheel end
Battery Capacity(V, AH)	12V-36AH
Dimension(mm)	450x390x480
Net weight(kg)	28
20FT	300

Wuxi Kaiao Power Machinery Co., Ltd. Specialized in the development and manufacture of small special:

Air-cooled diesel engine(KA170F, KA178F, KA186F, KA186FA, KA2V86),

Air-cooled diesel generator set(2KW--8.5KW)

Air-cooled diesel engine farming tillers(4HP, 5HP, 8HP)

Air-cooled diesel generator light tower(400W-10000W)

Air-cooled gasoline generator (650W-5000W)

Water-cooled Diesel Generator(10kw-100kw),

Water pump unit(2 '', 3 '', 4 '')

Electric welding set, construction machinery, and gardenging machinery, farming machinery etc.

Electric welding set, construction machinery, and gardenging machinery, etc.

Kaiao lies on the beautiful Tai-Lake, which allows traffic convenience. Occupying a site area of 35 square meters with a gross floor area of 20000 square meters, we have more than 150 staff members, among which three are around 20 are professional technicians. Advanced production lines and inspection equipments allow high quality productions.

We insist on technical innovation promoting development collectively. We have a specific goal: Exerting our effort to offer our customers the high-quality productsand services.

Wuxi Kaiao Power Machinery Co., Ltd. Establishes the strategic policy emphasizing on quality and service, and the managemeng concept "cooperating, sincerity, mutualbenefit and enterprising". Create value for both our customers and us through innovation!
